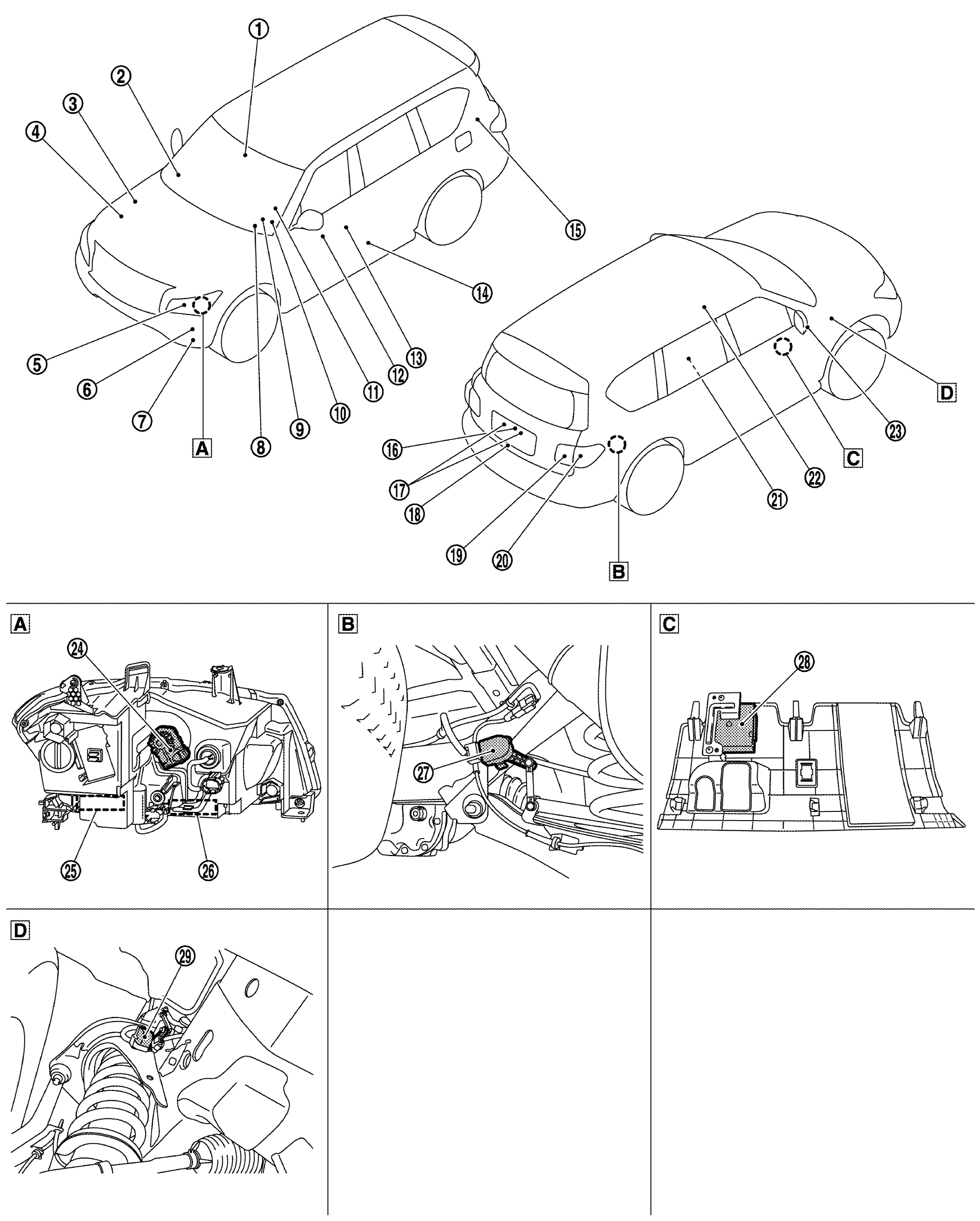

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

	Front combination lamp (back)		Rear suspension member (RH)		View with instrument lower cover removed
	Front suspension arm (RH)

No.	Component		Function
	Inside mirror assembly	Ambient light sensor	Refer to INSIDE MIRROR ASSEMBLY .
		Image sensor
		High beam assist control module
	Optical sensor		Refer to OPTICAL SENSOR .
	IPDM E/R		Controls the integrated relay and daytime running light relay, and supplies voltage to the load according to the request from BCM via CAN communication. IPDM E/R transmits low beam status signal to AFS control unit via CAN communication. Refer to COMPONENT LOCATION for detailed installation location.
	ECM		ECM transmits engine status signal to BCM via CAN communication. ECM transmits engine speed signal to AFS control unit via CAN communication. Refer to COMPONENT LOCATION for detailed installation location.
	Front combination lamp	Headlamp (HI) (LED headlamp)	Refer to BULB SPECIFICATIONS  and LED HEADLAMP .
		Headlamp (LO) (LED headlamp)
		Parking lamp (Upper side) / Daytime running light (Upper side)	Refer to BULB SPECIFICATIONS .
		Parking lamp (Lower side) / Daytime running light (Lower side)
		Front side marker lamp
	Front turn signal lamp		Refer to BULB SPECIFICATIONS .
	Front fog lamp		Refer to BULB SPECIFICATIONS .
	BCM		Detects each switch condition by the combination switch reading function. Exterior lamp ON/OFF is judged from each signal, and then a request is transmitted to IPDM E/R (via CAN communication) to turn each relay ON/OFF. It also transmits a request to the combination meter (via CAN communication) to turn indicator lamp and warning (buzzer) ON/OFF. Blinks the turn signal lamp and hazard warning lamp according to the each switch condition. Requests the turn signal indicator lamp blink to the combination meter via CAN communication. Requests the turn signal operating sound ON to the combination meter via CAN communication. Refer to COMPONENT LOCATION for detailed installation location.
	Combination meter		Turns the indicator lamp and warning (buzzer) ON/OFF according to the request from BCM via CAN communication. Inputs headlamp warning signal from LED headlamp control module and turns headlamp warning ON. Blinks the AFS warning lamp according to the request from AFS control unit via CAN communication. Blinks the turn signal indicator lamp and outputs the turn signal operating sound with integrated buzzer according to the request from BCM via CAN communication. Combination meter transmits vehicle speed signal to BCM, high beam assist control module and AFS control unit via CAN communication. Combination meter transmits parking brake switch signal to BCM via CAN communication.
	Combination switch		Refer to SYSTEM DESCRIPTION .
	Steering angle sensor * 1		Steering angle sensor transmits steering angle signal to AFS control unit via CAN communication. Refer to COMPONENT LOCATION for detailed installation location.
	Headlamp aiming switch * 2		Refer to HEADLAMP AIMING SWITCH .
	Door request switch		Refer to COMPONENT DESCRIPTION .
	Door switch		Refer to COMPONENT DESCRIPTION .
	Remote keyless entry receiver		Refer to COMPONENT DESCRIPTION .
	Back door opener switch assembly	Back door request switch	Refer to COMPONENT DESCRIPTION .
		Back door opener switch
	License plate lamp		Refer to BULB SPECIFICATIONS .
	Back door lock assembly (Back door switch)		Refer to COMPONENT DESCRIPTION .
	Rear combination lamp (Back door side)	Tail lamp	Refer to BULB SPECIFICATIONS .
	Rear combination lamp (Body side)	Stop lamp / Tail lamp	Refer to BULB SPECIFICATIONS .
		Rear side marker lamp
		Rear turn signal lamp
	Air bag diagnosis sensor unit		Air bag diagnosis sensor unit transmits air bag signal to BCM. Refer to COMPONENT LOCATION for detailed installation location.
	Hazard switch		Refer to HAZARD SWITCH .
	Side turn signal lamp		Refer to BULB SPECIFICATIONS .
	Front combination lamp	Headlamp aiming motor	Refer to HEADLAMP AIMING MOTOR .
		Swivel actuator * 1	Refer to SWIVEL ACTUATOR .
		LED headlamp control module	Refer to LED HEADLAMP CONTROL MODULE .
	Rear height sensor * 1		Refer to REAR HEIGHT SENSOR .
	AFS control unit * 1		Refer to AFS CONTROL UNIT .
	Front height sensor * 1		Refer to FRONT HEIGHT SENSOR .

* ¹ : With active AFS

* ² : Without active AFS
