Component Location
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

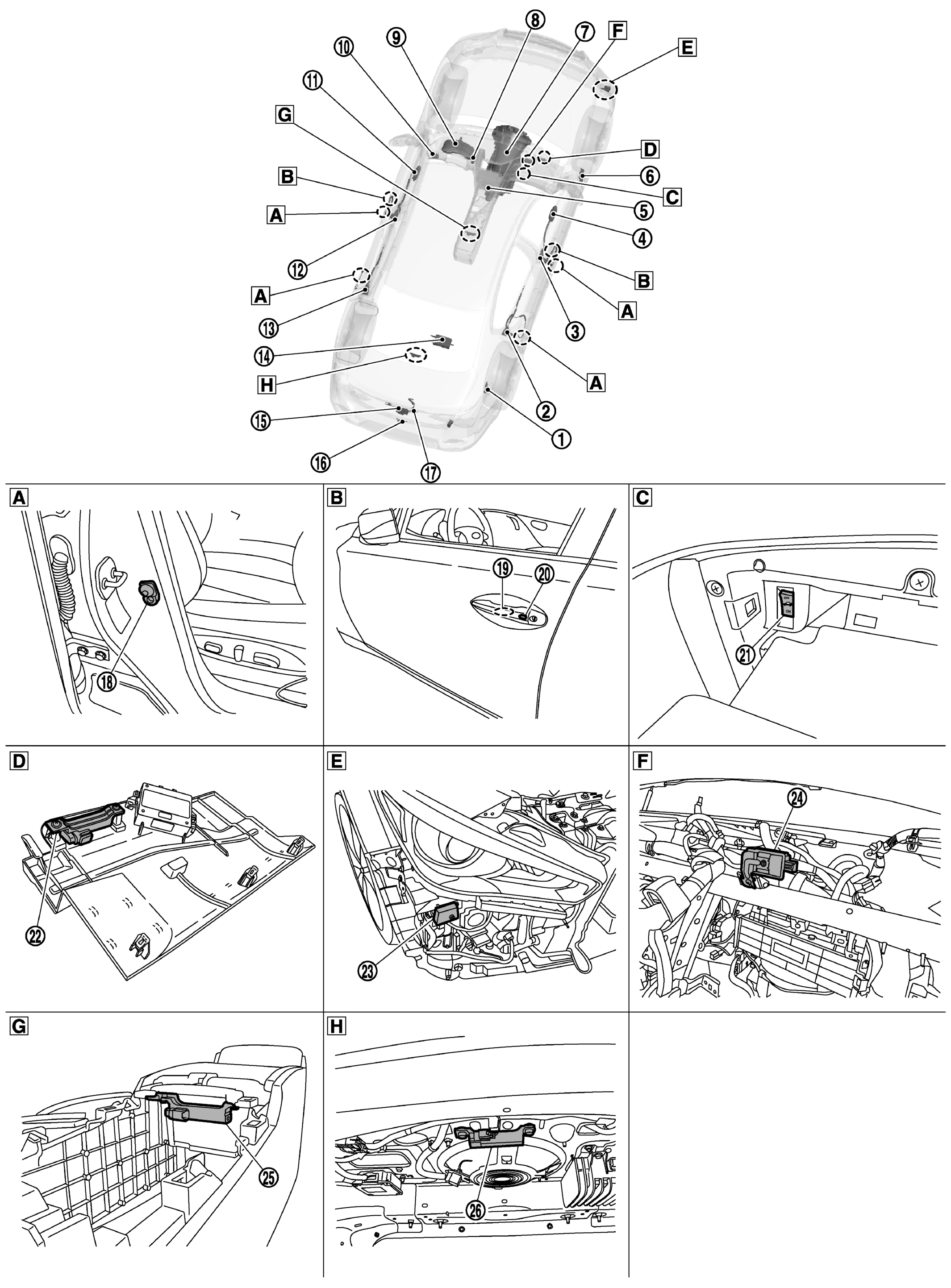

| View with door opened | View with door panel | View with glove box lid opened | |||
| View with instrument lower cover removed | View with front bumper fascia assembly removed | View with instrument panel assembly removed | |||
| View with center console assembly removed | View with trunk front finisher removed |
| No. | Component | Function |
|---|---|---|
| Fuel filler lid lock actuator | FUEL FILLER LID LOCK ACTUATOR | |
| Rear door lock assembly RH | REAR DOOR LOCK ASSEMBLY | |
| Front door lock assembly (passenger side) | FRONT DOOR LOCK ASSEMBLY | |
| Front power window switch (passenger side) (door lock and unlock switch) | DOOR LOCK AND UNLOCK SWITCH | |
| TCU | COMPONENT LOCATION | |
| BCM | BCM detects the vehicle status according to signals from each door switch and each outside/inside key antenna. BCM transmits drive signal to door lock actuator when BCM receives operation signal from remote keyless entry receiver and each switch. Refer to COMPONENT LOCATION for detailed installation location. |
|
| A/T assembly (TCM) | Transmits shift position signal to HPCM via communication line. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Push-button ignition switch | Inputs push-button ignition switch ON/OFF condition to BCM. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Combination meter |
|
|
| Trunk lid opener switch | TRUNK LID OPENER SWITCH | |
| Power window main switch (door lock and unlock switch) | DOOR LOCK AND UNLOCK SWITCH | |
| Front door lock assembly (driver side) | FRONT DOOR LOCK ASSEMBLY | |
| Rear door lock assembly LH | REAR DOOR LOCK ASSEMBLY | |
| HPCM | Transmits shift position signal and engine status signal to BCM via CAN communication line. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Trunk lid lock assembly | TRUNK LID LOCK ASSEMBLY | |
| Outside key antenna (rear bumper) | OUTSIDE KEY ANTENNA (REAR BUMPER) | |
| Trunk lid opener request switch | TRUNK LID OPENER REQUEST SWITCH | |
| Door switch | DOOR SWITCH | |
| Front door request switch | DOOR REQUEST SWITCH | |
| One touch unlock sensor assembly | ONE TOUCH UNLOCK SENSOR ASSEMBLY | |
| Trunk lid opener cancel switch (except for Mexico models) | TRUNK LID OPENER CANCEL SWITCH | |
| Inside key antenna (instrument lower) | INSIDE KEY ANTENNA | |
| Intelligent Key warning buzzer | INTELLIGENT KEY WARNING BUZZER | |
| Remote keyless entry receiver | REMOTE KEYLESS ENTRY RECEIVER | |
| Inside key antenna (console) | INSIDE KEY ANTENNA | |
| Inside key antenna (trunk room) | INSIDE KEY ANTENNA |
