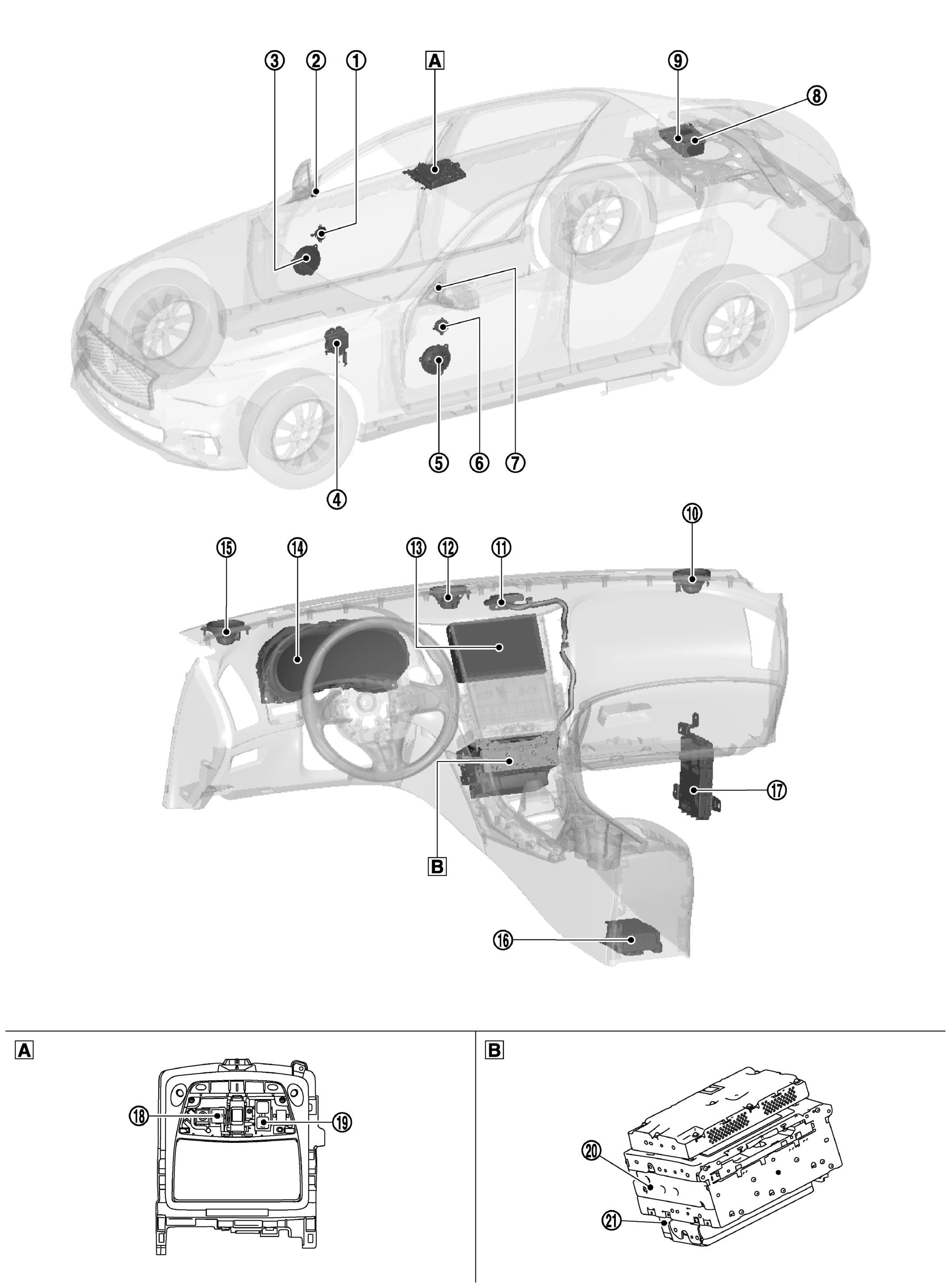

Component Location
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
| Map lamp | Back of integral switch |
| No. | Part name | Description |
|---|---|---|
| Front door squawker RH | Outputs sound signal. | |
| Tweeter RH | Outputs sound signal. | |
| Front door woofer RH | Outputs sound signal. | |
| ABS actuator and electric unit (control unit) | Transmits the following signals to the TCU via CAN communication.
|
|
| Front door woofer LH | Outputs sound signal. | |
| Front door squawker LH | Outputs sound signal. | |
| Tweeter LH | Outputs sound signal. | |
| HPCM | Transmits the following signals to the TCU via CAN communication.
|
|
| BOSE amp. | Inputs sound signal from AV control unit, and outputs sound signal to each speaker. | |
| Front squawker RH | Outputs sound signal. | |
| Telematics antenna | Refer to TELEMATICS ANTENNA . | |
| Center squawker RH | Outputs sound signal. | |
| Display control unit | Refer to DISPLAY CONTROL UNIT . | |
| Combination meter | Transmits the brake warning lamp signal to the TCU via CAN communication. | |
| Front squawker LH | Outputs sound signal. | |
| Air bag diagnosis sensor unit | Transmits the car crash information signal to the TCU via CAN communication. | |
| BCM | Transmits the following signals to the TCU via CAN communication.
|
|
| Microphone | Refer to MICROPHONE . | |
| Telematics switch | Refer to TELEMATICS SWITCH . | |
| AV control unit | Inputs sound signal from display control unit, and outputs sound signal to BOSE amp. | |
| TCU | Refer to TCU . |
