Inspection After Assembly

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

2346 Brake Clearance

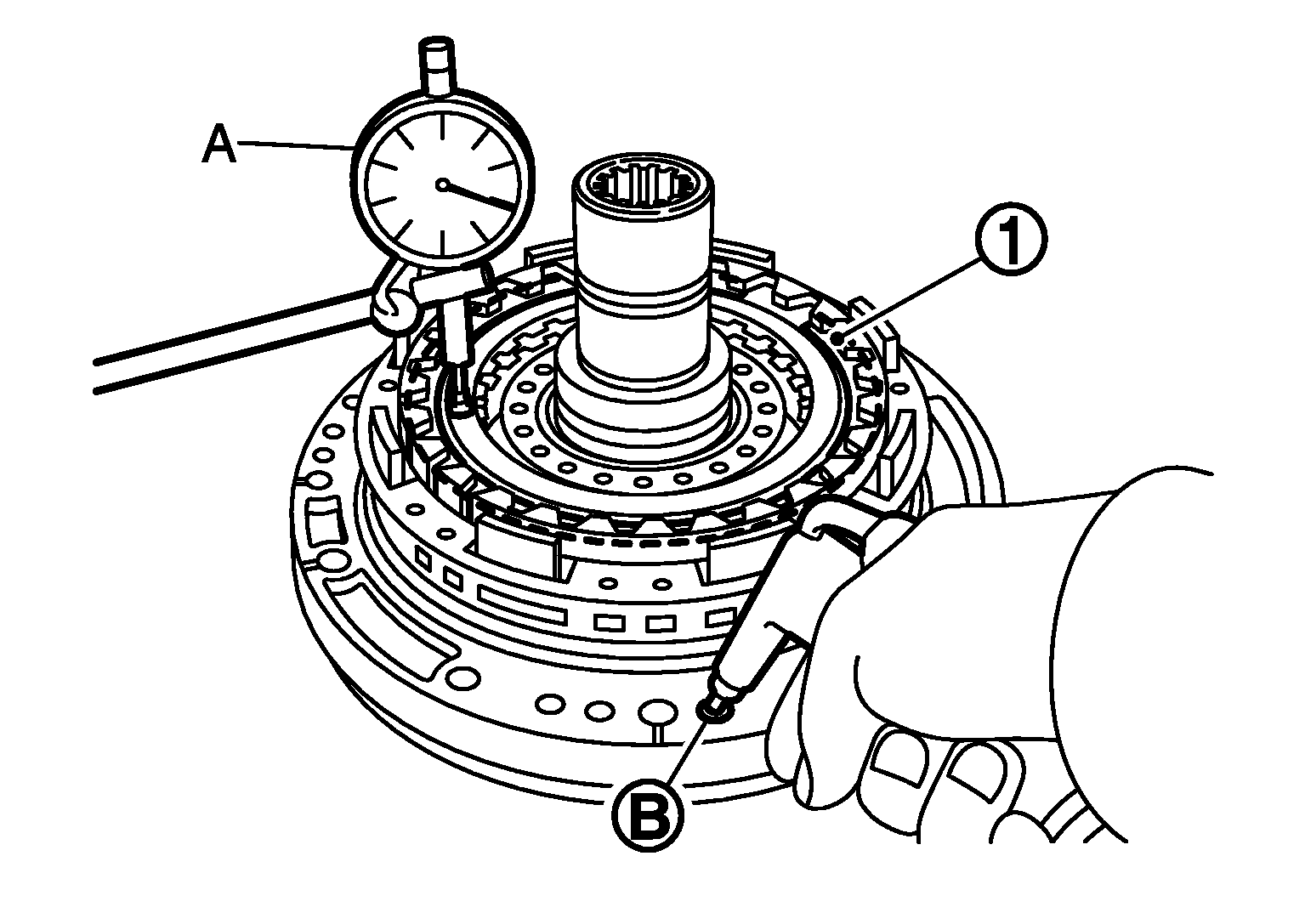

Set a dial indicator (A) as shown in the figure. Blow air into 2346 brake oil pressure hole , and measure 2346 brake clearance. If clearance is outside the specified value, adjust clearance by selecting an appropriate snap ring . Refer to Oil Channel .

Courtesy of NISSAN NORTH AMERICA, INC.

Air pressure	: 300 kPa (3.06 kg/cm ² , 43.5 psi)
2346 brake clearance	: Refer to 2346 Brake Clearance or 2346 Brake Clearance .

CAUTION: Never exceed the specified air pressure value.
