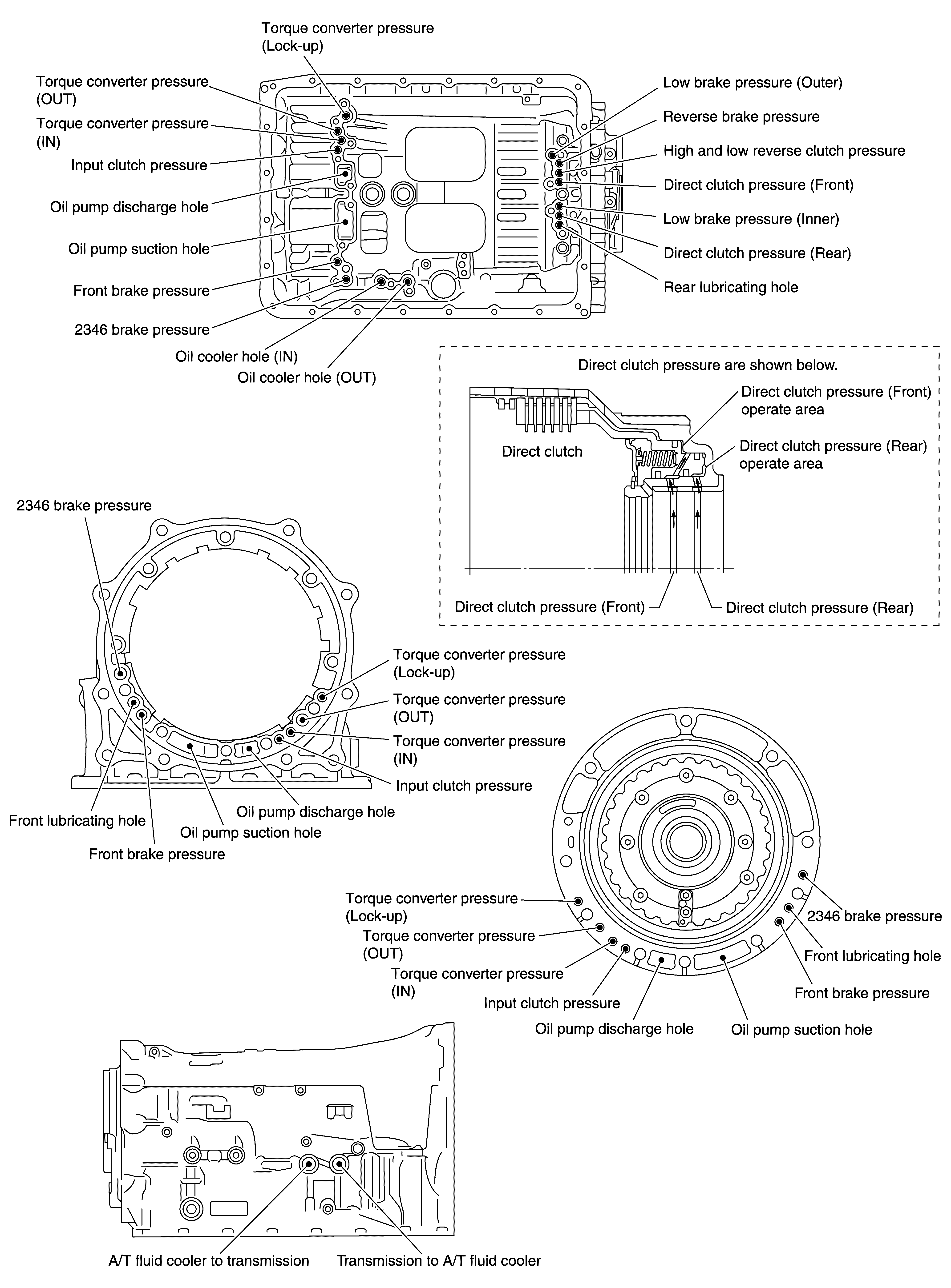

Oil Channel

WARNING: This page is about a different car, the 2018 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
G07013598Courtesy of NISSAN NORTH AMERICA, INC.
