Aiming Adjustment Screw

WARNING: This page is about a different car, the 2017 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

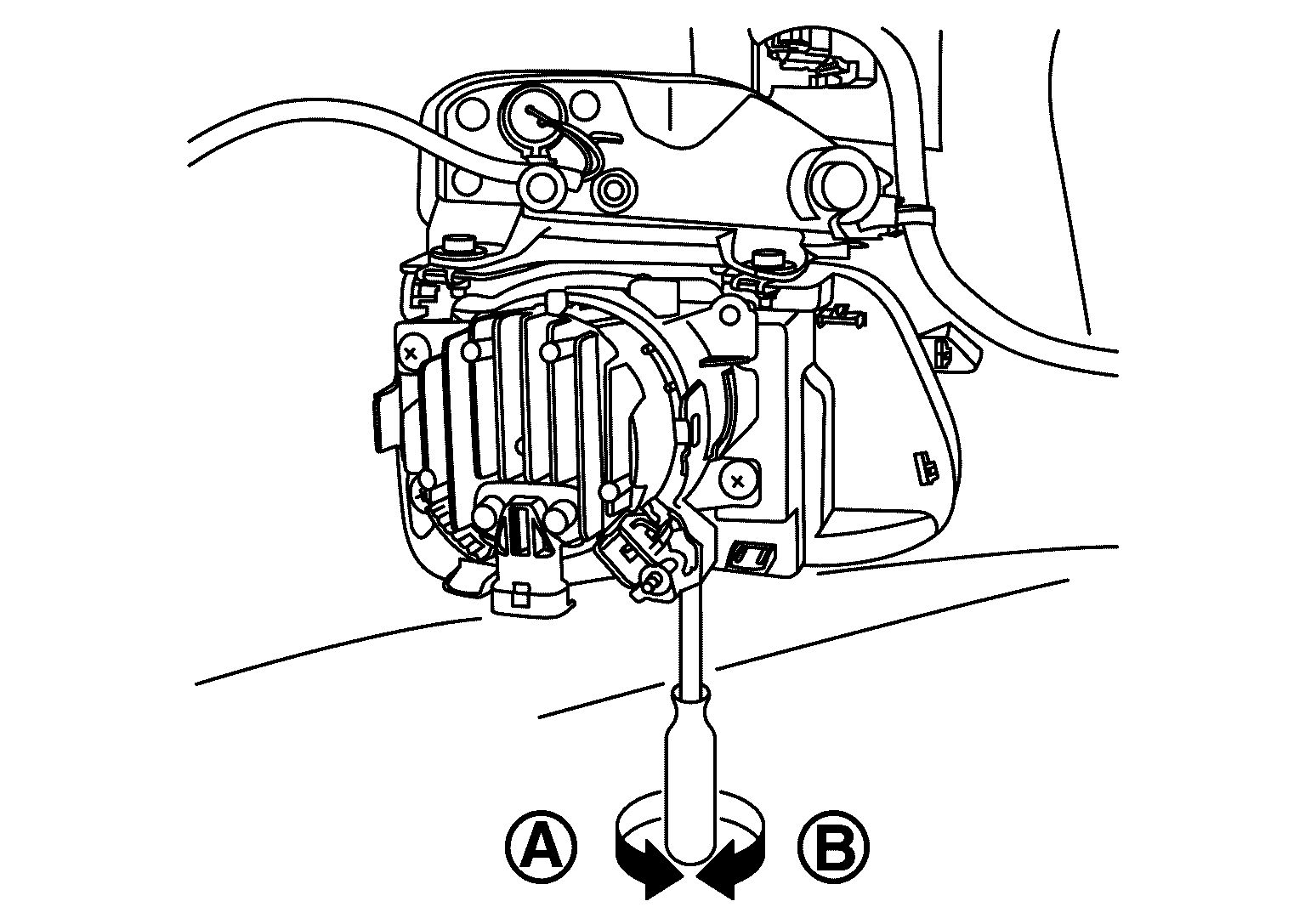

Turn the aiming adjusting screw for adjustment.

Courtesy of NISSAN NORTH AMERICA, INC.

: DOWN

: UP
For the position and direction of the adjusting screw, refer to the illustration.
NOTE:
A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used for adjustment.

For aiming adjustment procedure, refer to AIMING ADJUSTMENT PROCEDURE .
