Component Parts Location
WARNING: This page is about a different variant/trim than selected.

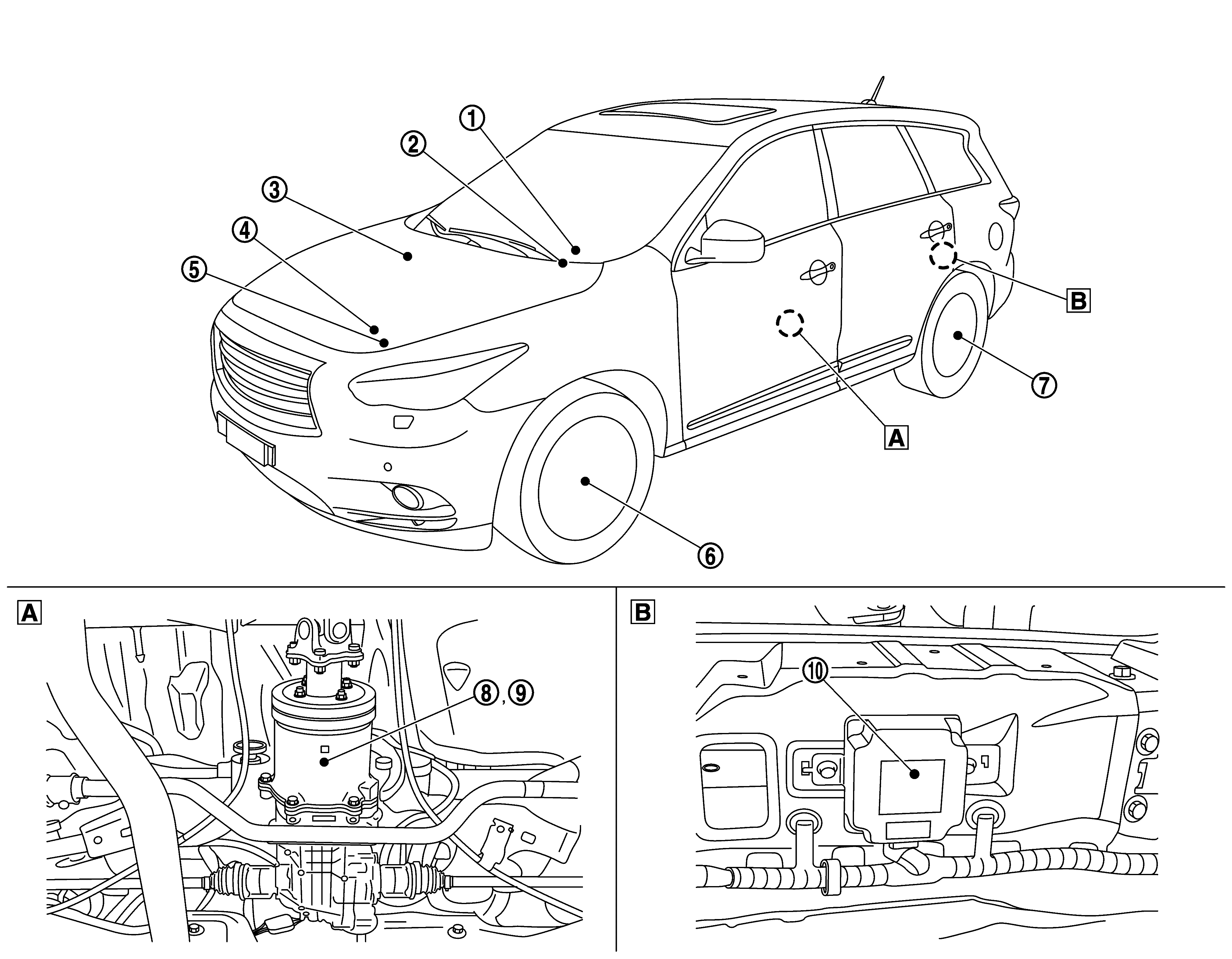

| A. | Rear final drive assembly | B. | Inside storage room |
| No. | Component parts | Reference/Function |
|---|---|---|
| 1 | Combination meter (AWD warning icon/display) |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to SYSTEM DESCRIPTION Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 2 | Steering angle sensor | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to SYSTEM DESCRIPTION Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 3 | ABS actuator and electric unit (control unit) | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to SYSTEM DESCRIPTION Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 4 | TCM | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to SYSTEM DESCRIPTION Refer to COMPONENT PARTS LOCATION (RE0F10J) for detailed installation location. |
| 5 | ECM | Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to SYSTEM DESCRIPTION Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 6 | Front wheel sensor | WHEEL SENSOR AND SENSOR ROTOR |
| 7 | Rear wheel sensor | |
| 8 | AWD solenoid | AWD SOLENOID |
| 9 | Electric controlled coupling | ELECTRIC CONTROLLED COUPLING |
| 10 | AWD control unit | AWD CONTROL UNIT |
