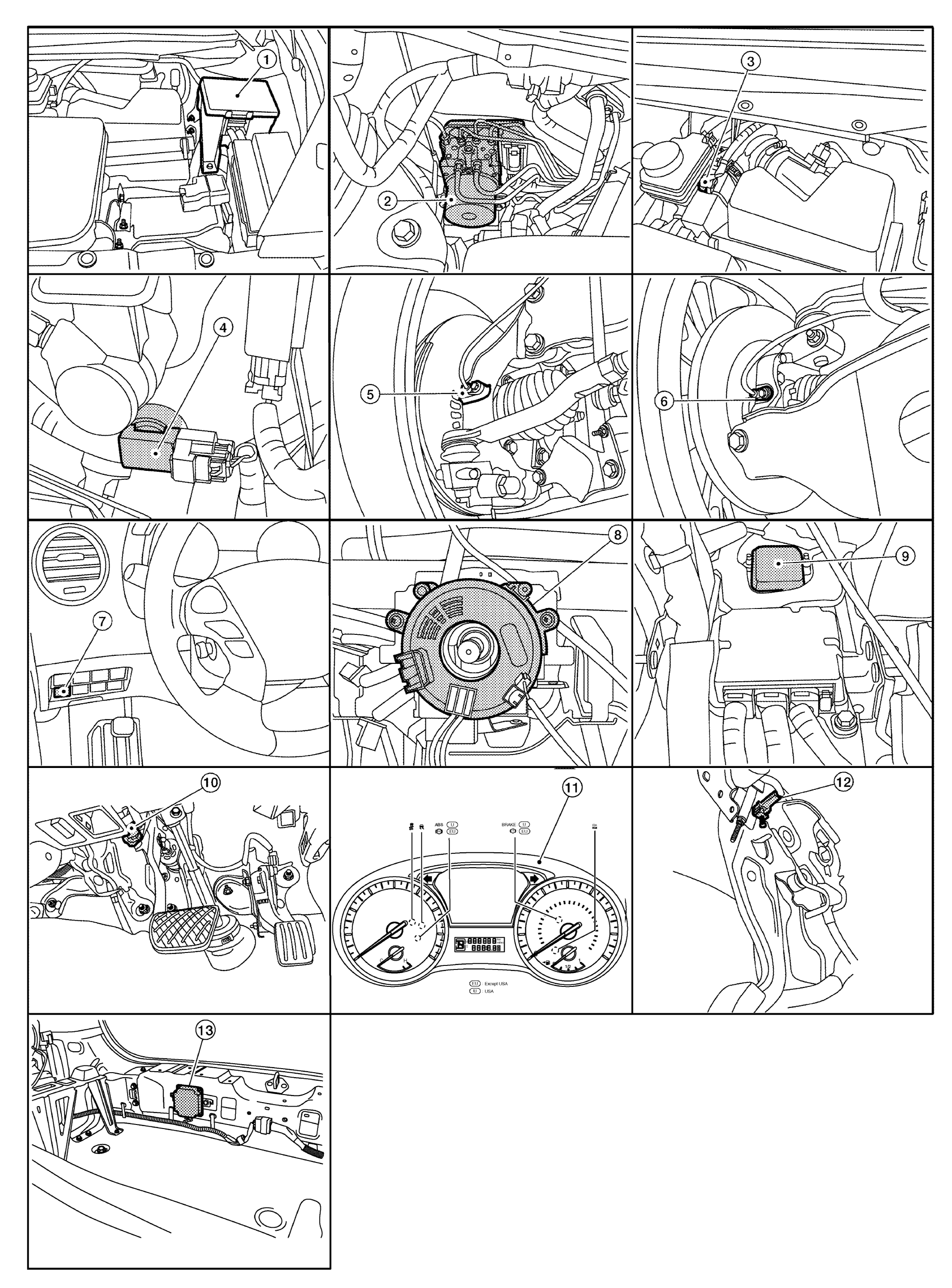

Components Location
| 1. | IPDM E/R | 2. | ABS actuator and electric unit (control unit) | 3. | Brake fluid level switch (part of brake fluid reservoir) |
| 4. | Vacuum sensor (attached to lower side of brake booster) | 5. | Front wheel sensor LH (RH similar) | 6. | Rear wheel sensor LH (RH similar) |
| 7. | VDC OFF switch | 8. | Steering angle sensor (view with steering wheel and steering column covers removed) | 9. | Yaw rate/side/decel G sensor (view with the center console removed) |
| 10. | Stop lamp switch | 11. | Combination meter | 12. | Parking brake switch |
| 13. | ADAS control unit (view of rear luggage room area) |
