Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wiper arm covers and wiper arms. Refer to REMOVAL AND INSTALLATION .
  2. Remove cowl top finisher assembly. Refer to EXPLODED VIEW .
  3. Remove front coil spring and strut insulator covers.
  4. Remove upper front coil spring and strut insulator bolts using power tool.
  5. Remove the wheels and tires using power tool. Refer to ROAD WHEEL .
  6. Remove wheel sensor harness from the front coil spring and strut.

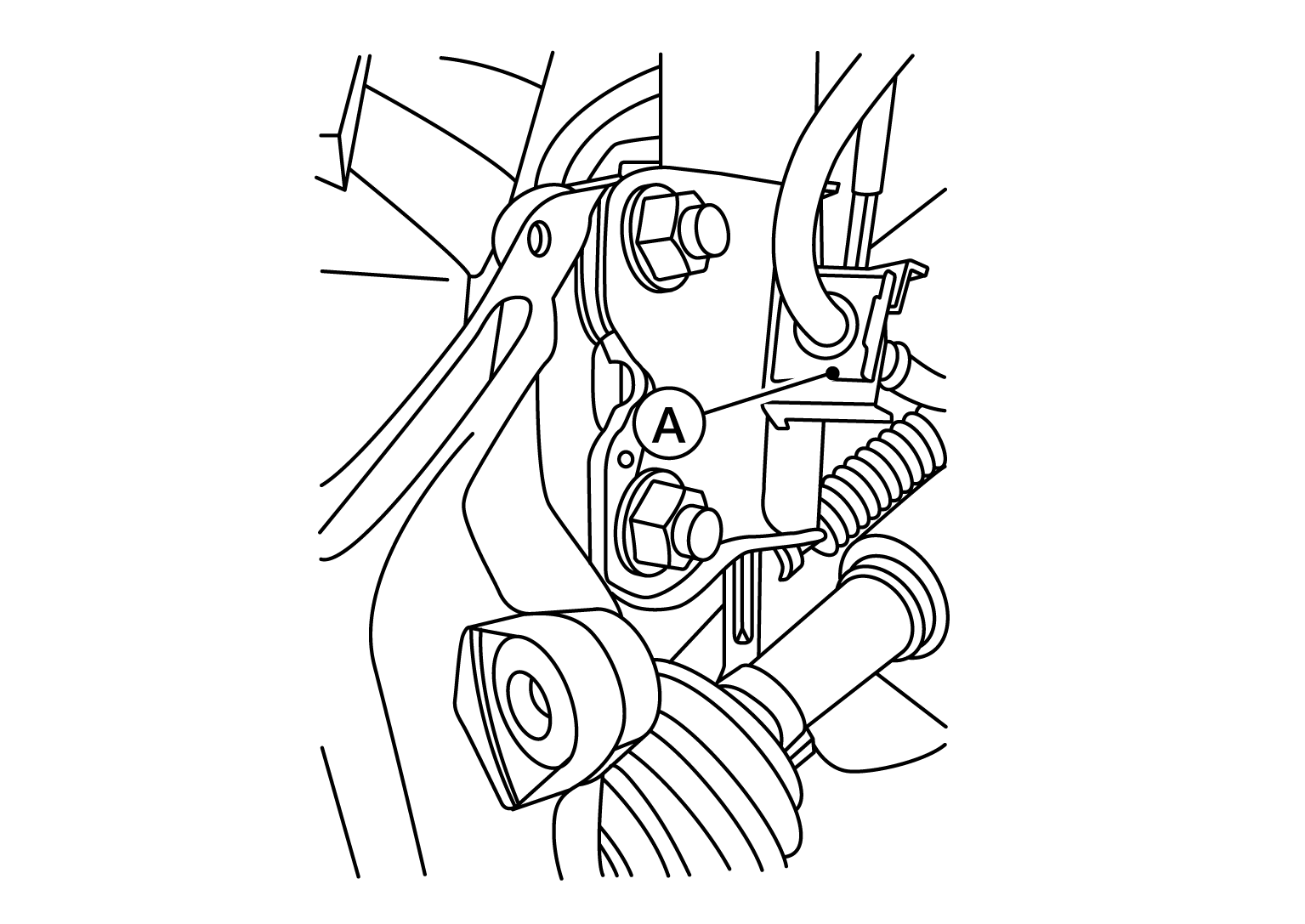

  7. Remove brake hose lock plate (A).
    G08856374Courtesy of NISSAN NORTH AMERICA, INC.

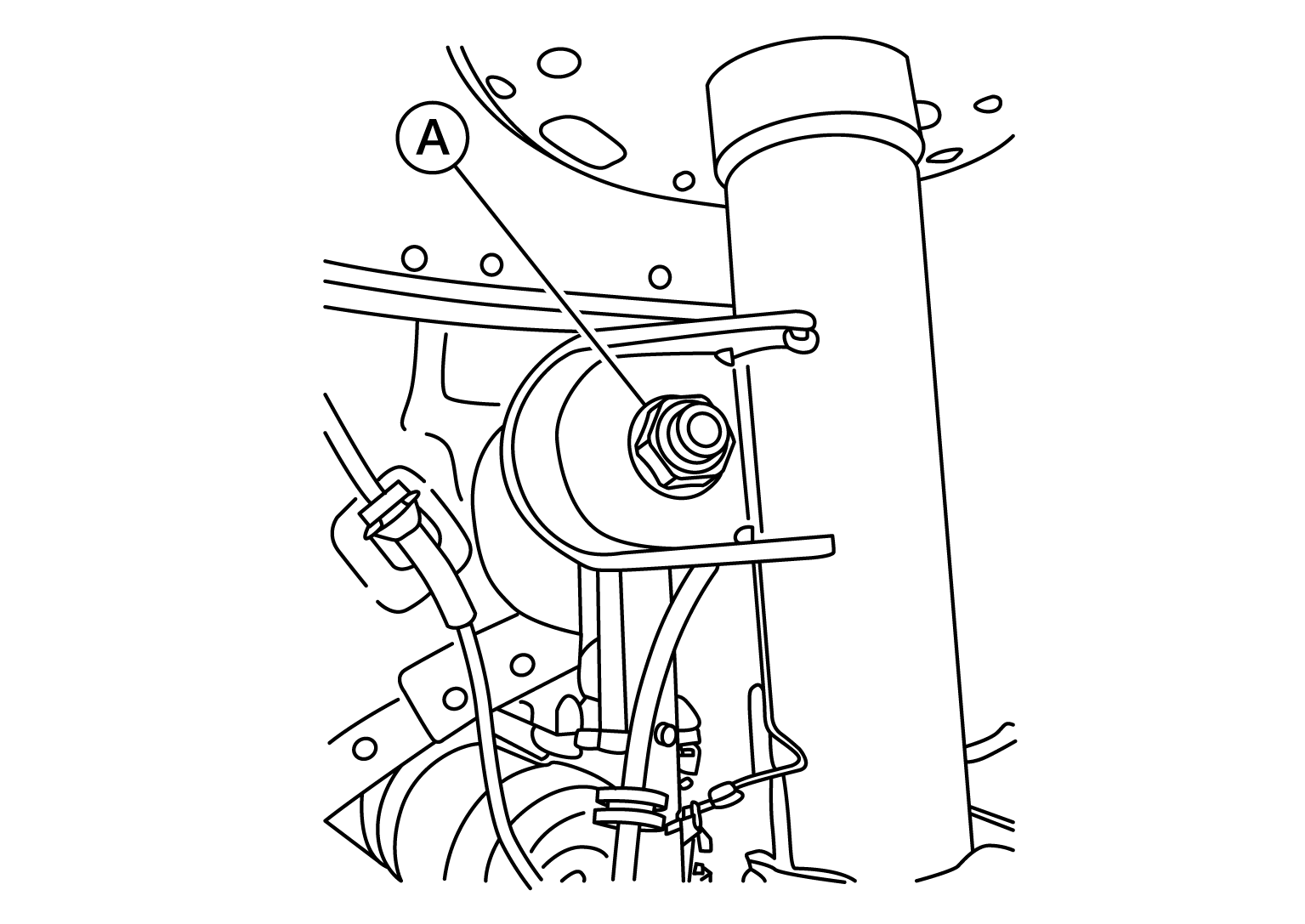

  8. Remove stabilizer connecting rod nut (A) from front coil spring and strut. Position stabilizer connecting rod aside. Refer to EXPLODED VIEW .
    G08856375Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove steering knuckle-to-front coil spring and strut bolts and nuts with power tool.
  10. Remove front coil spring and strut assembly.
