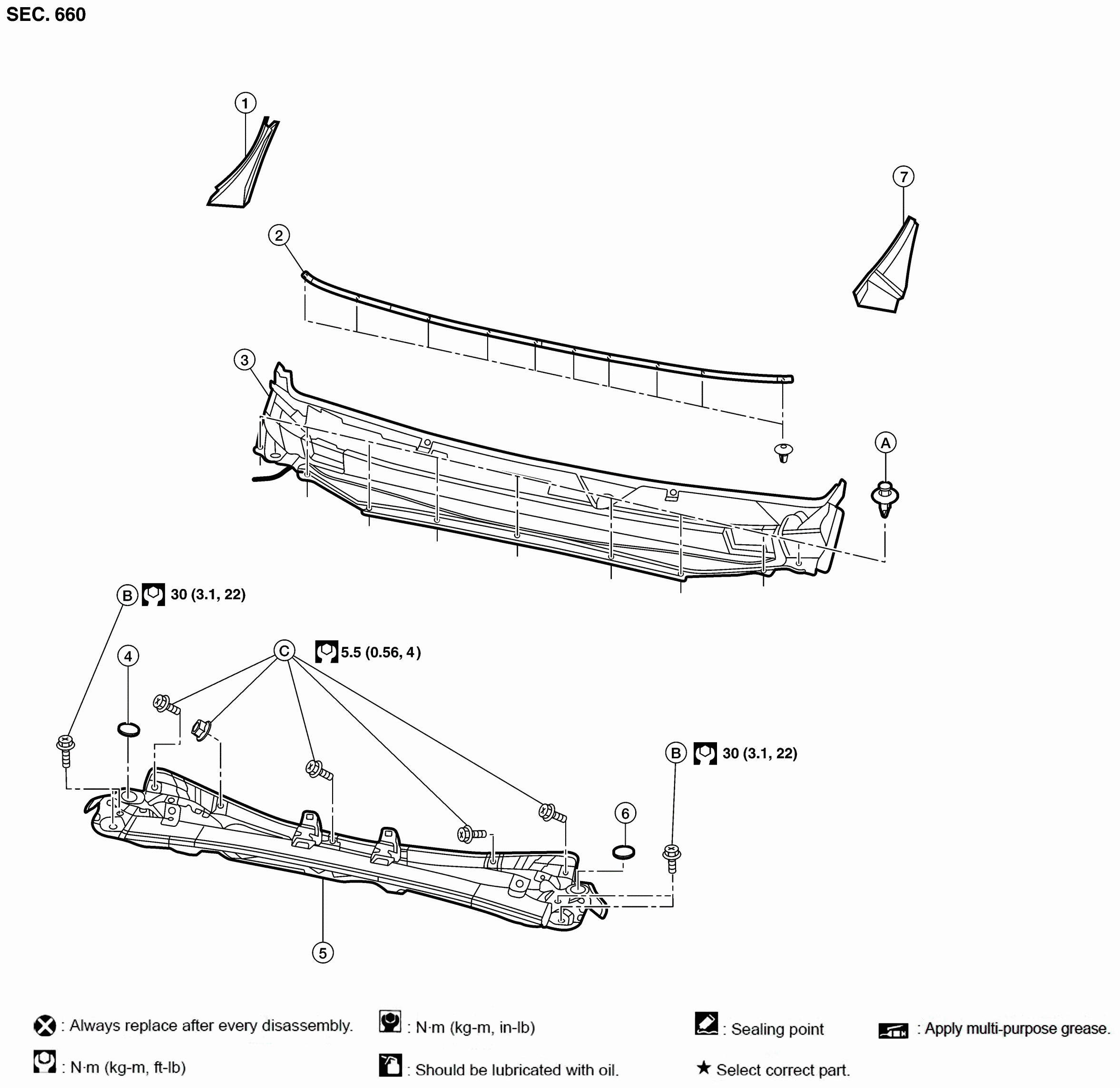

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Cowl top side trim cover (RH) | 2. | Cowl top seal | 3. | Cowl top cover |
| 4. | Rubber plug (LH) | 5. | Cowl top extension | 6. | Rubber plug (RH) |
| 7. | Cowl top side trim cover (LH) | A. | Clip | B. | Refer to installation COWL TOP COVER |
| C. | Refer to installation COWL TOP COVER |
