Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

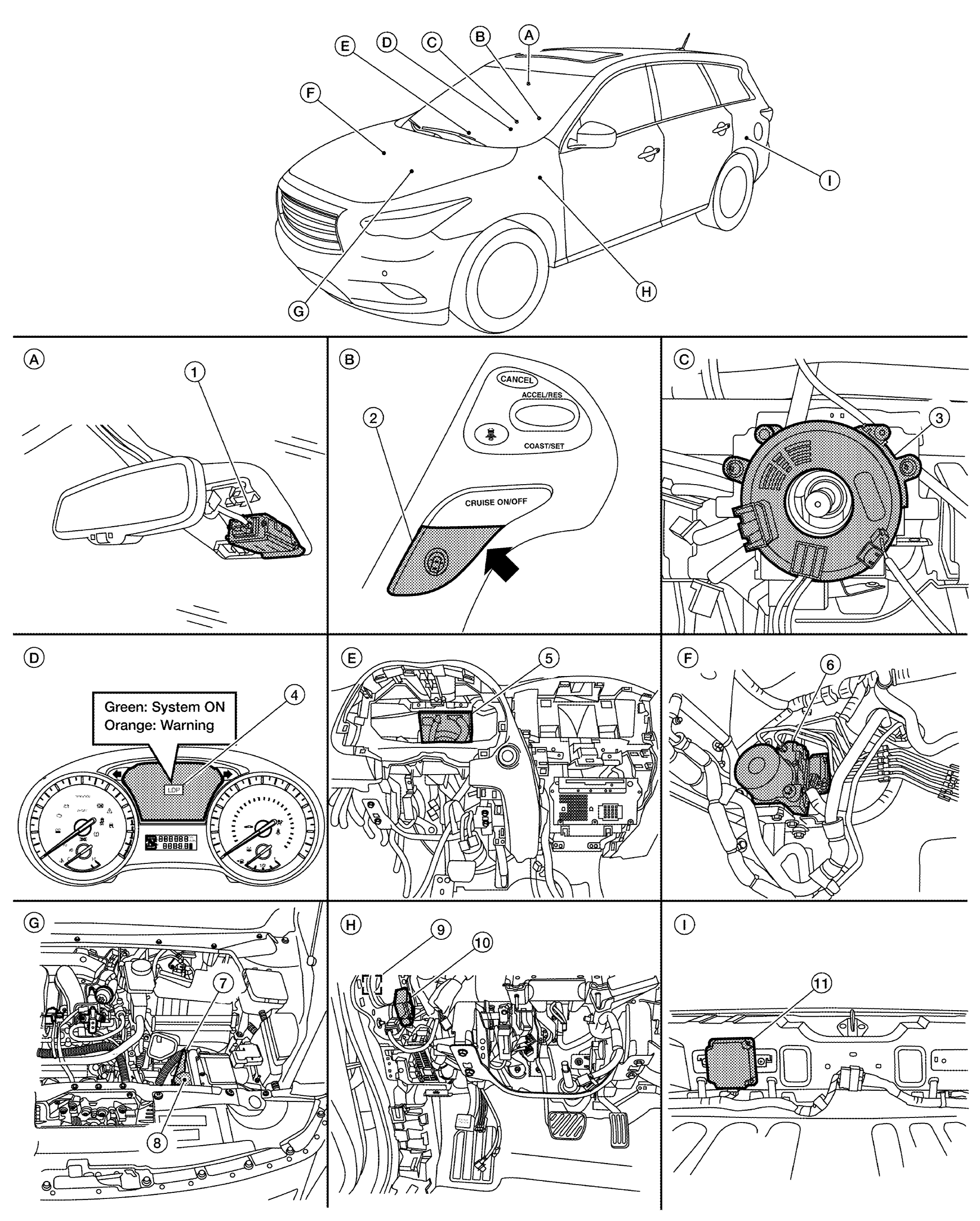

GNSALOIA0397ZZ-397Courtesy of NISSAN NORTH AMERICA, INC.
1. Lane camera unit 2. Dynamic driver assistance switch
(On the ICC steering switch)		 3. Steering angle sensor (view with steering wheel removed)
Refer to COMPONENT DESCRIPTION .
4. Vehicle information display (LDP) 5. BCM (with the combination meter removed) Refer to COMPONENT DESCRIPTION . 6. ABS actuator and electric unit (control unit)
Refer to COMPONENT DESCRIPTION .
7. ECM
Refer to COMPONENT DESCRIPTION .		 8. TCM
Refer to COMPONENT DESCRIPTION .		 9. Warning buzzer
10. Driver Assistance Buzzer Control Module 11. ADAS control unit
(view of rear luggage room area with rear panel assembly removed)
Refer to COMPONENT DESCRIPTION .
