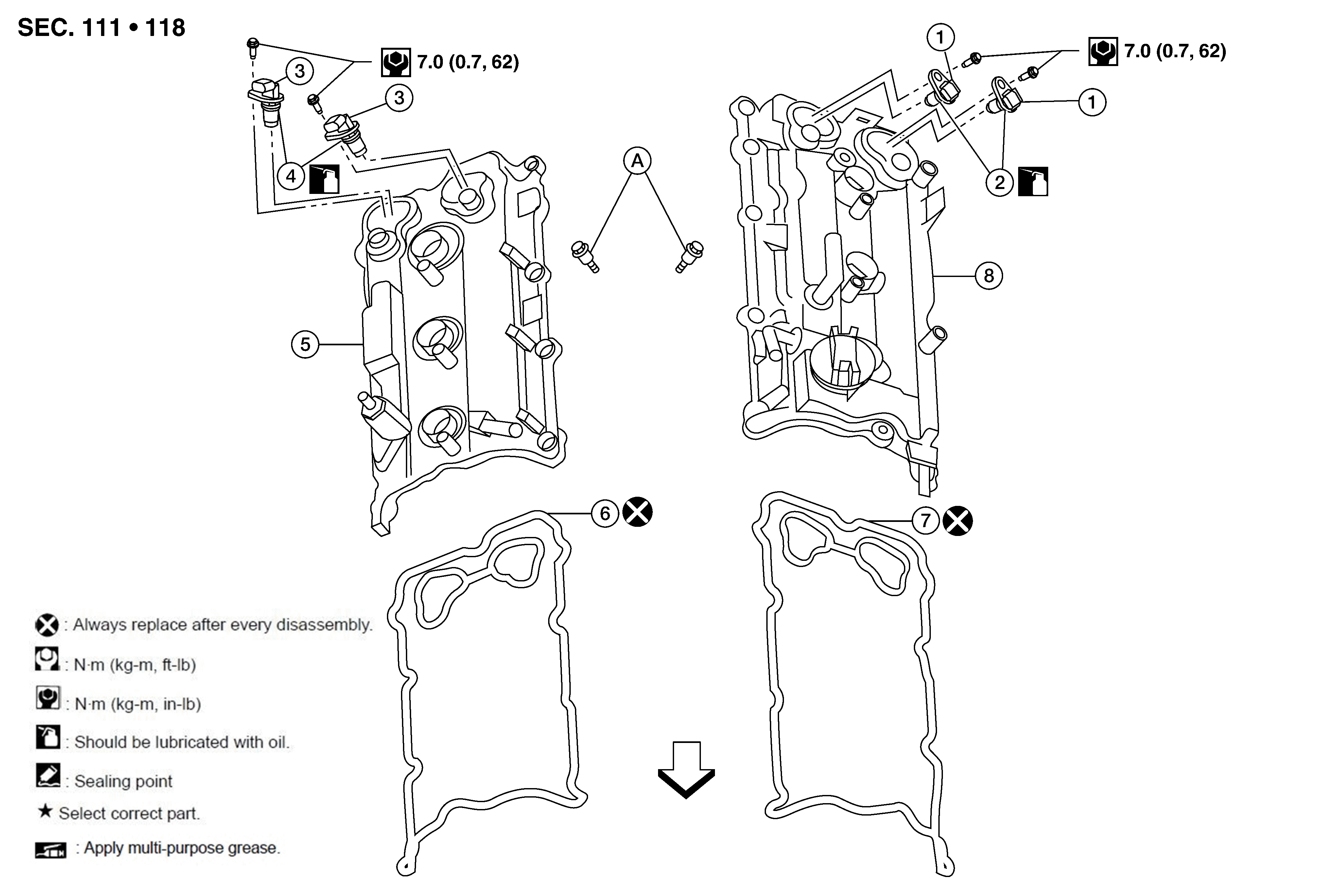

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
For United States and Canada
| 1. | Camshaft position sensor (LH) | 2. | O-ring | 3. | Camshaft position sensor (RH) |
| 4. | O-ring | 5. | Rocker cover (RH) | 6. | Rocker cover gasket (RH) |
| 7. | Rocker cover gasket (LH) | 8. | Rocker cover (LH) | A. | Refer to INSTALLATION |
| Engine front |
