Removal And Installation (LH): Installation
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse gasket.
- Blow by hose clamps should be installed facing upwards.
- Install press fit hoses so that the white mark faces the rib of the connector.

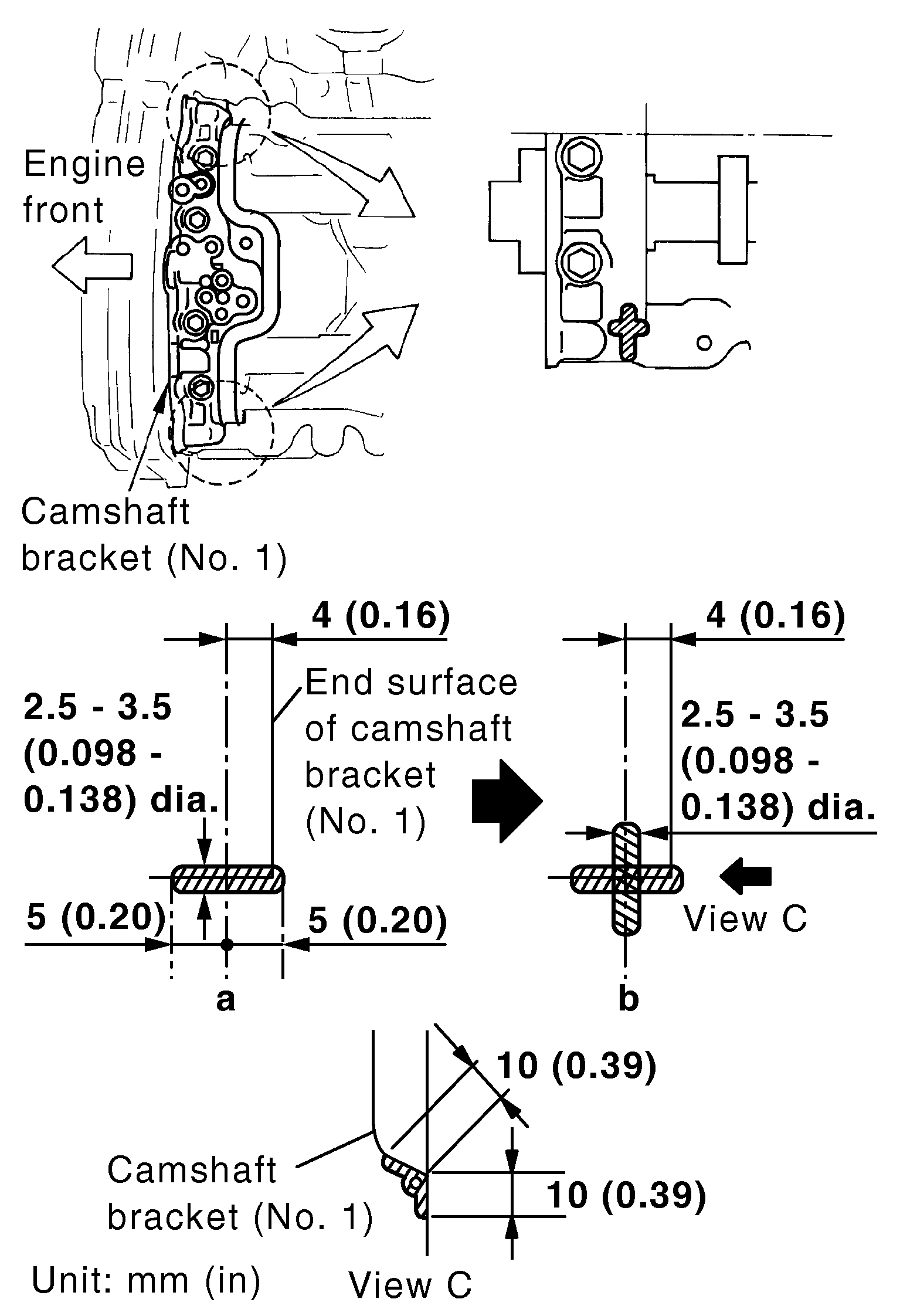

- Apply sealant to the areas on the front corners using a suitable tool.
- Use Genuine Silicone RTV Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
.CAUTION:
- Installation should be done within 5 minutes after applying liquid gasket.
- Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.
- Tighten the rocker cover bolts to specification in two steps in order shown in illustration.
For United States and Canada
: Engine front Rocker cover bolts Step 1 : 1.96 N•m (0.20 kg-m, 17 in-lb) Step 2 : 8.33 N•m (0.85 kg-m, 74 in-lb)
