Removal And Installation (Lower Oil Pan): Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Apply a continuous bead of sealant to the lower oil pan.

Courtesy of NISSAN NORTH AMERICA, INC.
- Use Genuine Silicone RTV Sealant, or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
- Be sure the sealant is 4.5 - 5.5 mm (0.177 - 0.217 in) wide.
  CAUTION:
  - Installation should be done within 5 minutes after applying liquid gasket.
  - Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.

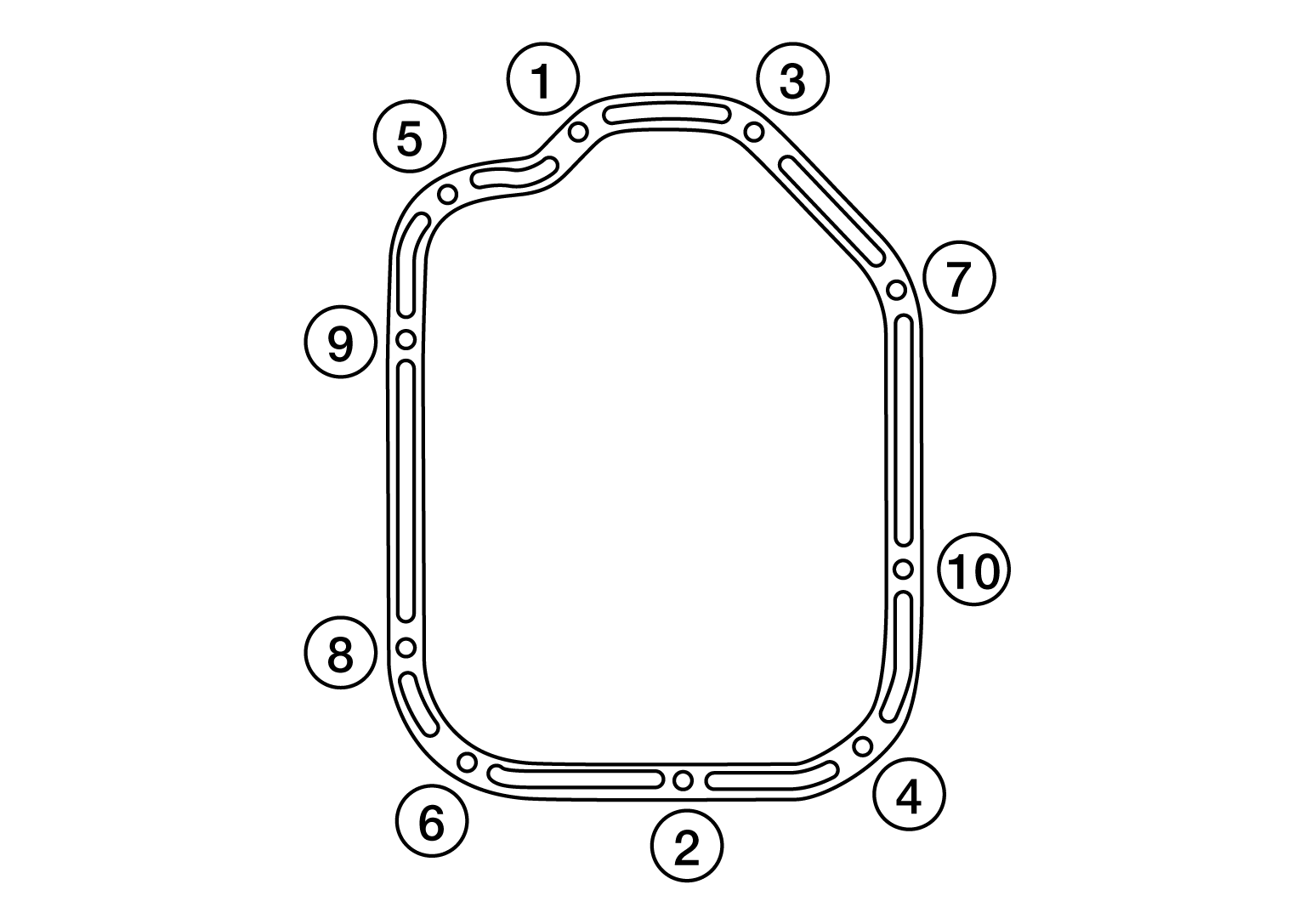

Install the lower oil pan. Tighten the lower oil pan bolts in order as shown in illustration.

Fig 1: Lower Oil Pan Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Installation should be done within 5 minutes after applying liquid gasket.
- Do not fill the engine with engine oil for at least 30 minutes after the components are installed to allow the sealant to cure.
Refill the engine with oil. Refer to CHANGING ENGINE OIL .
