Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

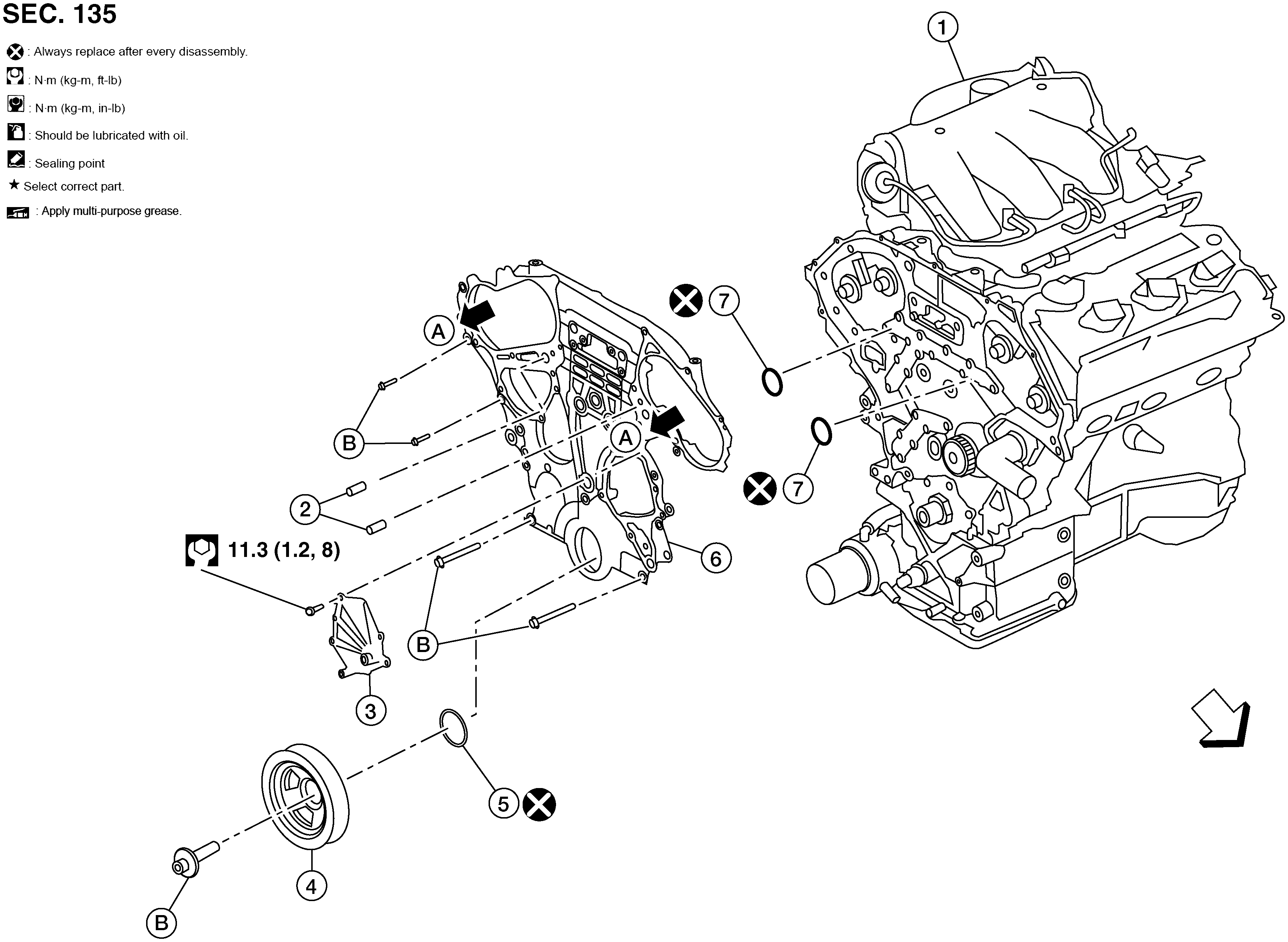

Fig 1: Front Timing Chain Case With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine assembly	2.	Front timing chain case oil filter	3.	Water pump cover
4.	Crankshaft pulley	5.	Front oil seal	6.	Front timing chain case
7.	O-ring	A.	To valve timing control cover (bank 1/bank 2). Refer to EXPLODED VIEW .	B.	Refer to INSTALLATION
	Front
