Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

For United States and Canada

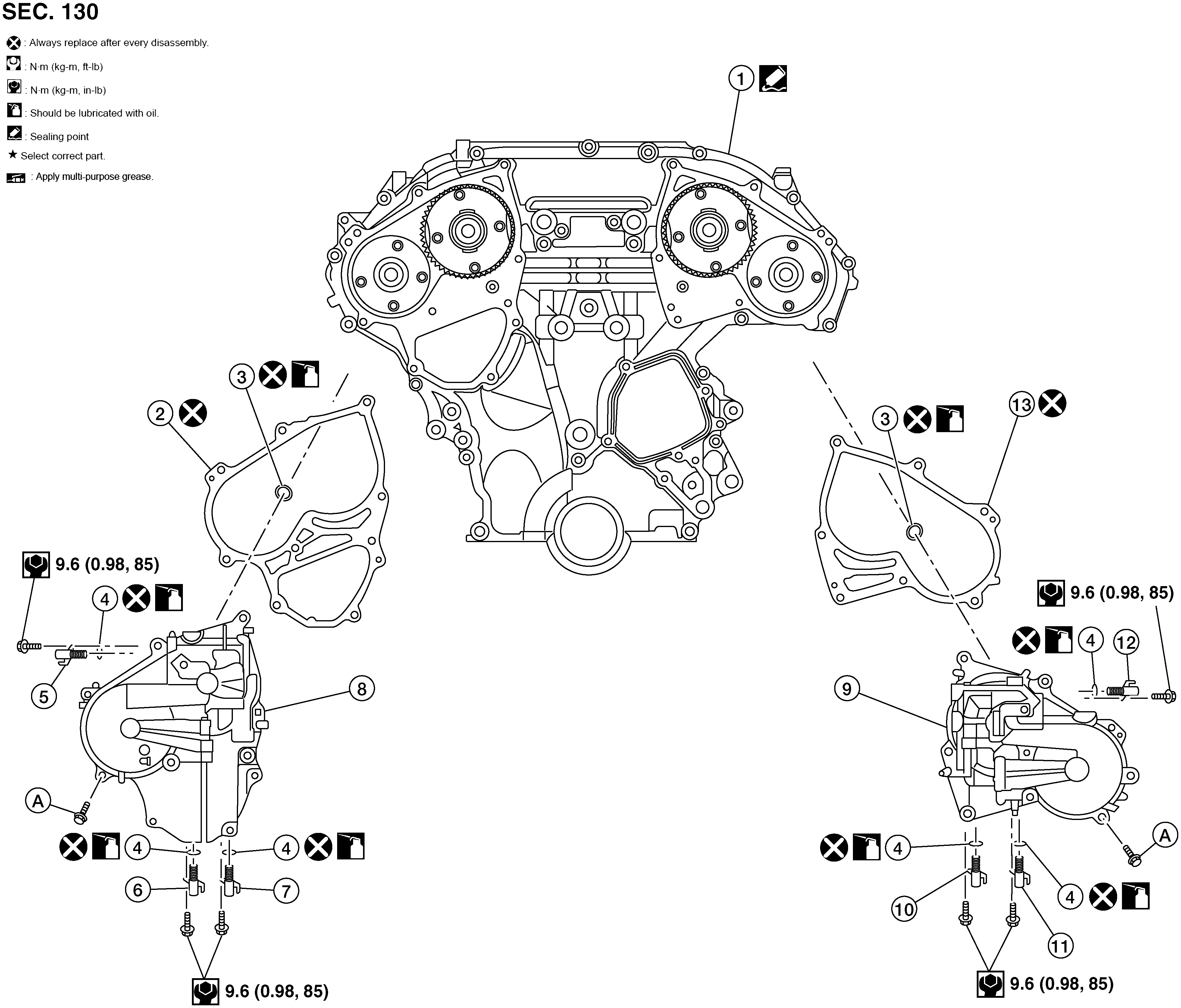

Fig 1: Valve Timing Control With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front timing chain case	2.	Valve timing control cover gasket (bank 1)	3.	O-ring
4.	O-ring	5.	Intake valve timing intermediate lock control solenoid valve (bank 1)	6.	Exhaust valve timing control solenoid valve (bank 1)
7.	Intake valve timing control solenoid valve (bank 1)	8.	Valve timing control cover (bank 1)	9.	Valve timing control cover (bank 2)
10.	Intake valve timing control solenoid (bank 2)	11.	Exhaust valve timing control solenoid (bank 2)	12.	Intake valve timing intermediate lock control solenoid valve (bank 2)
13.	Valve timing control cover gasket (bank 2)	A.	Refer to INSTALLATION INSTALLATION
