Hydraulic Piping
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

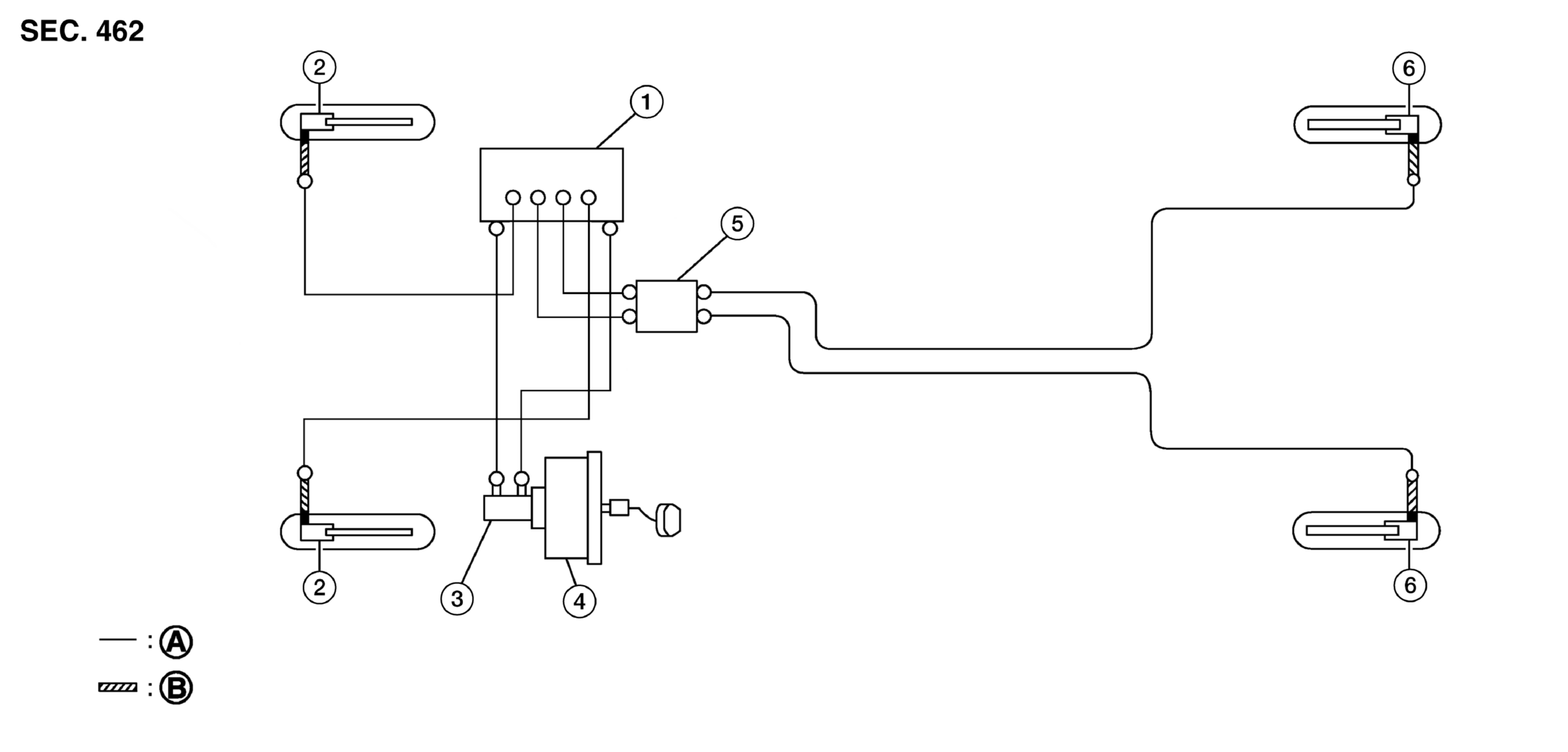

| 1. | ABS actuator and electric unit (control unit) | 2. | Front disc brake | 3. | Master cylinder assembly |
| 4. | Brake booster | 5. | Connector | 6. | Rear disc brake |
| A. | Brake tube | B. | Brake hose | ||
CAUTION:
- Make sure that interference does not exist with other parts when turning steering both clockwise and counterclockwise.
- Do not spill or splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
- Do not bend, twist or pull the brake hoses and piping.
- When removing components, cover connections to avoid dirt, dust, or other foreign matter from entering the brake system.
- Do not reuse drained brake fluid.
- After installation of the ABS actuator and electric unit (control unit), refill brake system with new brake fluid. Then bleed the air from the system. Refer to BLEEDING BRAKE SYSTEM .
