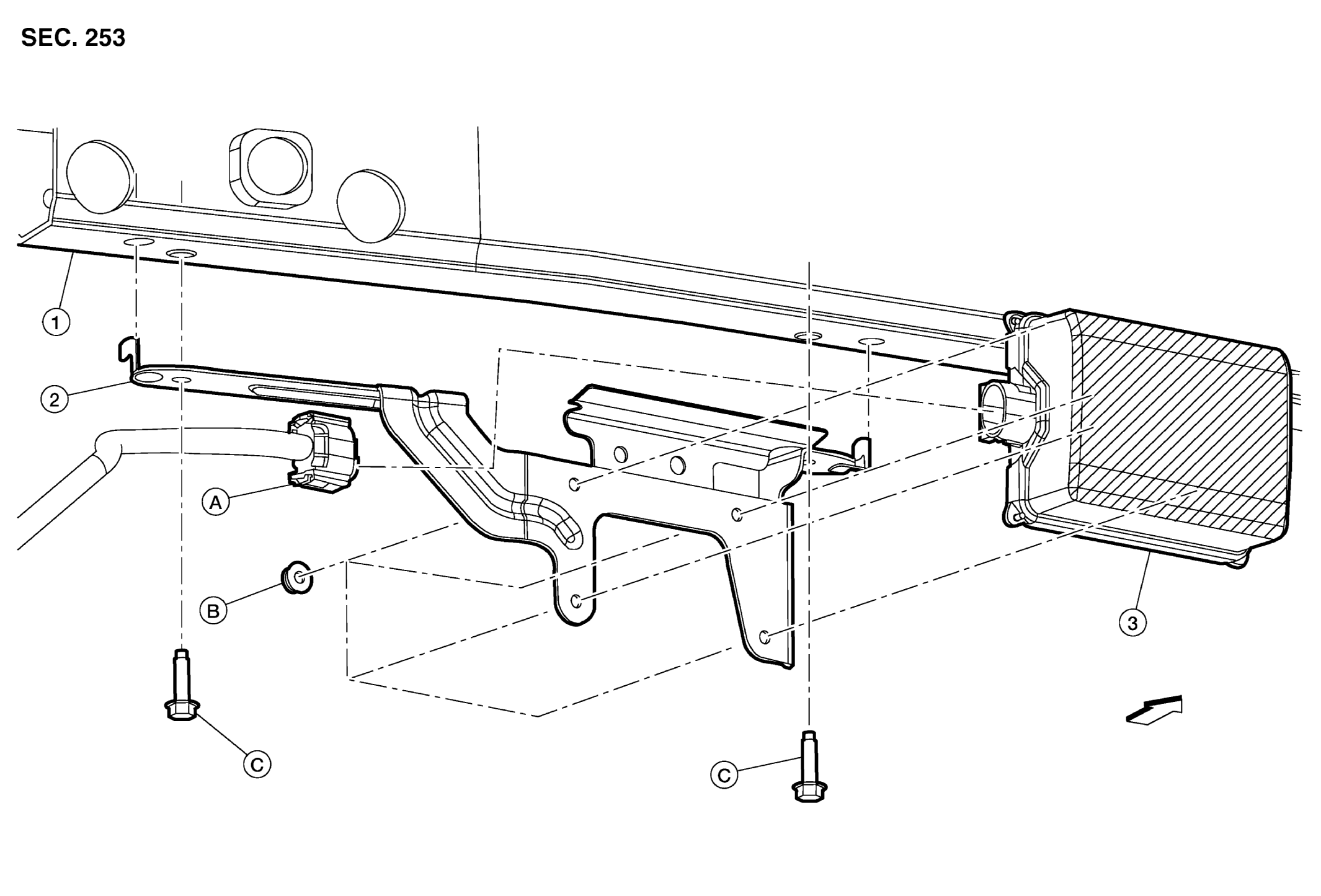

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front bumper reinforcement | 2. | ICC sensor bracket | 3. | ICC sensor |
| A. | ICC sensor harness connector | B. | Refer to INSTALLATION | C. | Refer to INSTALLATION . |
| Front |
