Removal And Installation: Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Install ICC sensor bracket and ICC sensor bracket bolts finger-tight (if necessary).
Tighten ICC sensor bracket bolts to the specified torque in the sequence shown below.

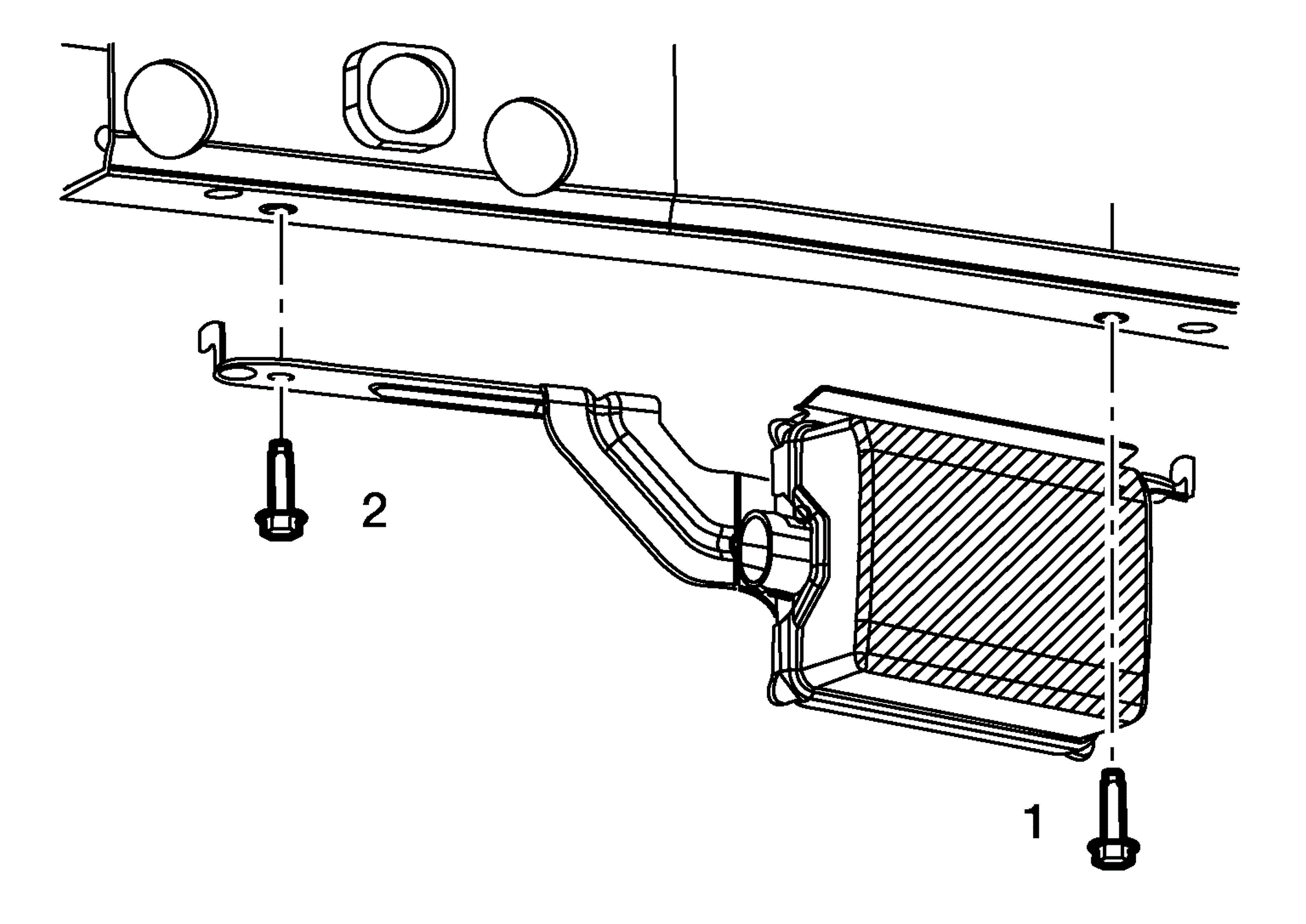

Fig 1: ICC Sensor Bracket Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

ICC sensor bracket bolts : 10.0 N•m (1.0 kg-m, 7 ft-lb)
Install ICC sensor and ICC sensor nuts finger-tight.
Tighten ICC sensor nuts to the specified torque in the sequence shown below.

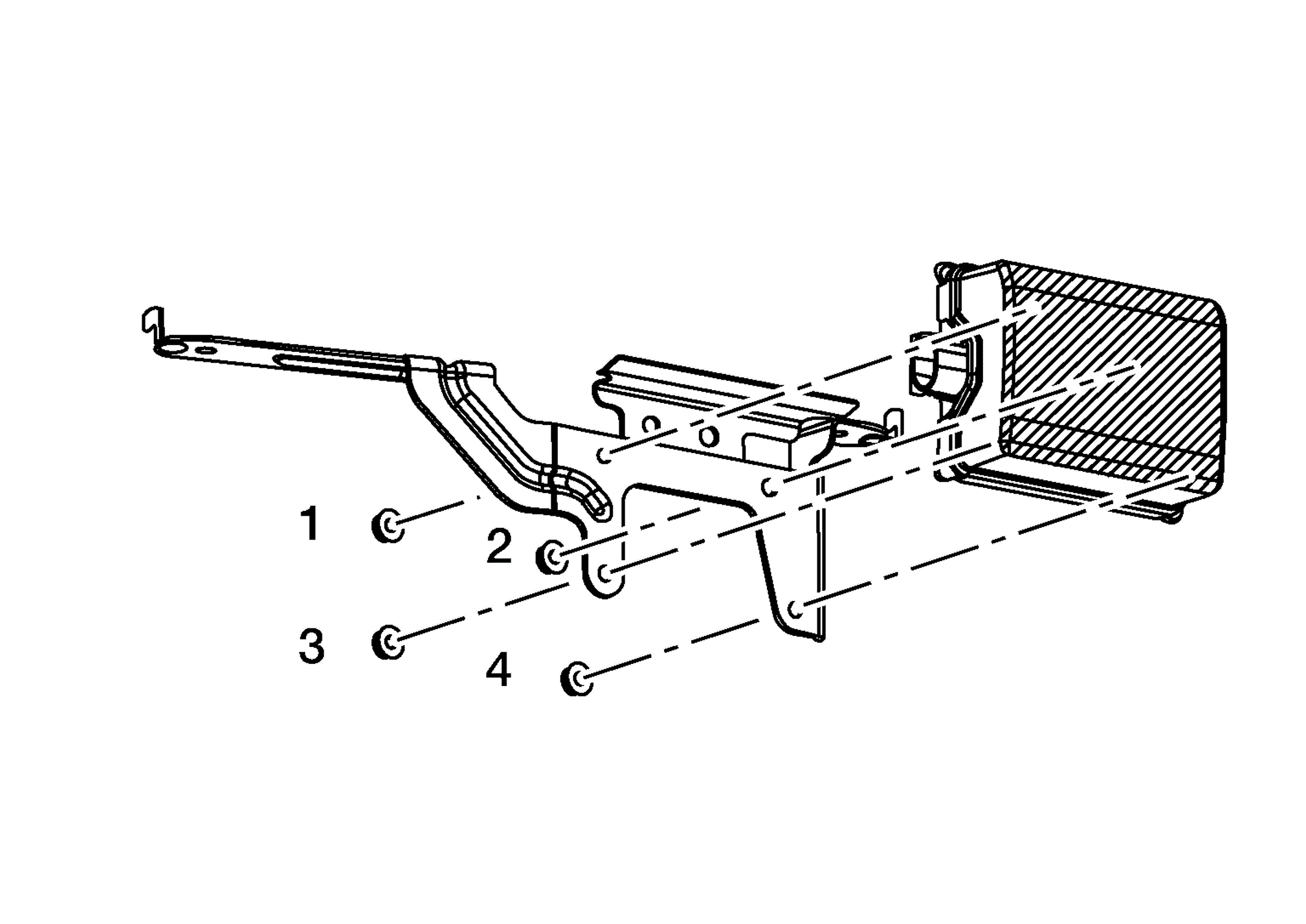

Fig 2: ICC Sensor Nuts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

ICC sensor bolts : 5.5 N•m (0.56 kg-m, 49 in-lb)
Installation of the remaining components is in the reverse order of removal.

CAUTION:

Always perform ICC sensor alignment and check operation after removal, installation or replacement of ICC sensor. Refer to DESCRIPTION .

Do not drop or shock ICC sensor.

Make sure ICC sensor harness is installed without any twists.
