Removal And Installation: Removal
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Discharge the refrigerant. Refer to RECYCLE REFRIGERANT .

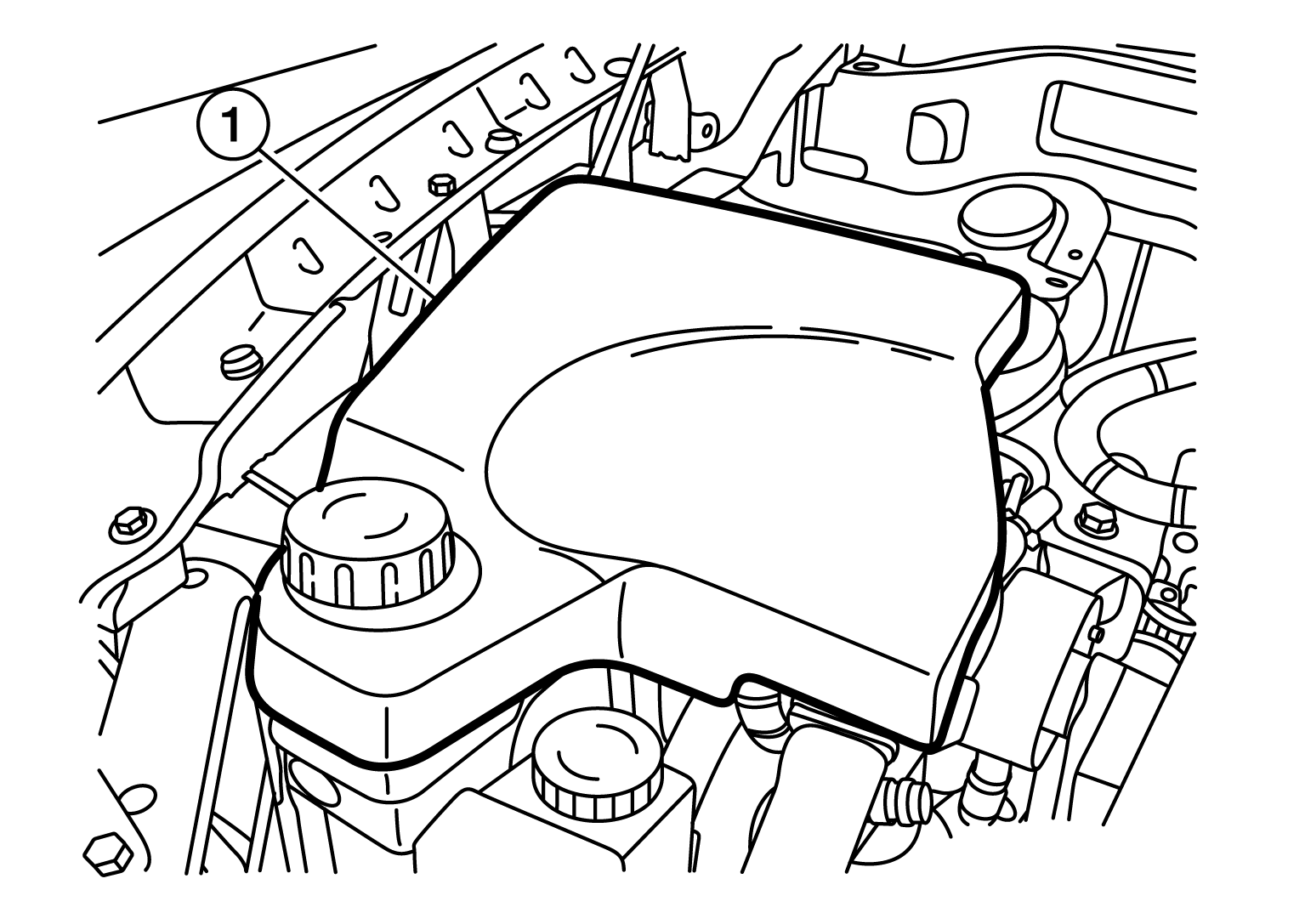

- Remove the power steering oil pump cover (1).
- Remove core support cover. Refer to EXPLODED VIEW .
- Remove front air duct. Refer to REMOVAL AND INSTALLATION .
- Remove front under cover. Refer to REMOVAL AND INSTALLATION .
- Remove the cowl top extension. Refer to EXPLODED VIEW .
- Remove the high-pressure and low-pressure pipe bolt from the expansion valve.CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
- Remove the high-pressure and low-pressure pipe bolt from the underfloor rear high-pressure and low-pressure A/C pipes.CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
- Remove the high-pressure and low-pressure pipe bolt from the low-pressure flexible hose and high-pressure pipe.CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
- Remove the high-pressure and low-pressure pipe.
