Rear Differential Gear Oil: Refilling

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not start engine while checking rear differential gear oil level.

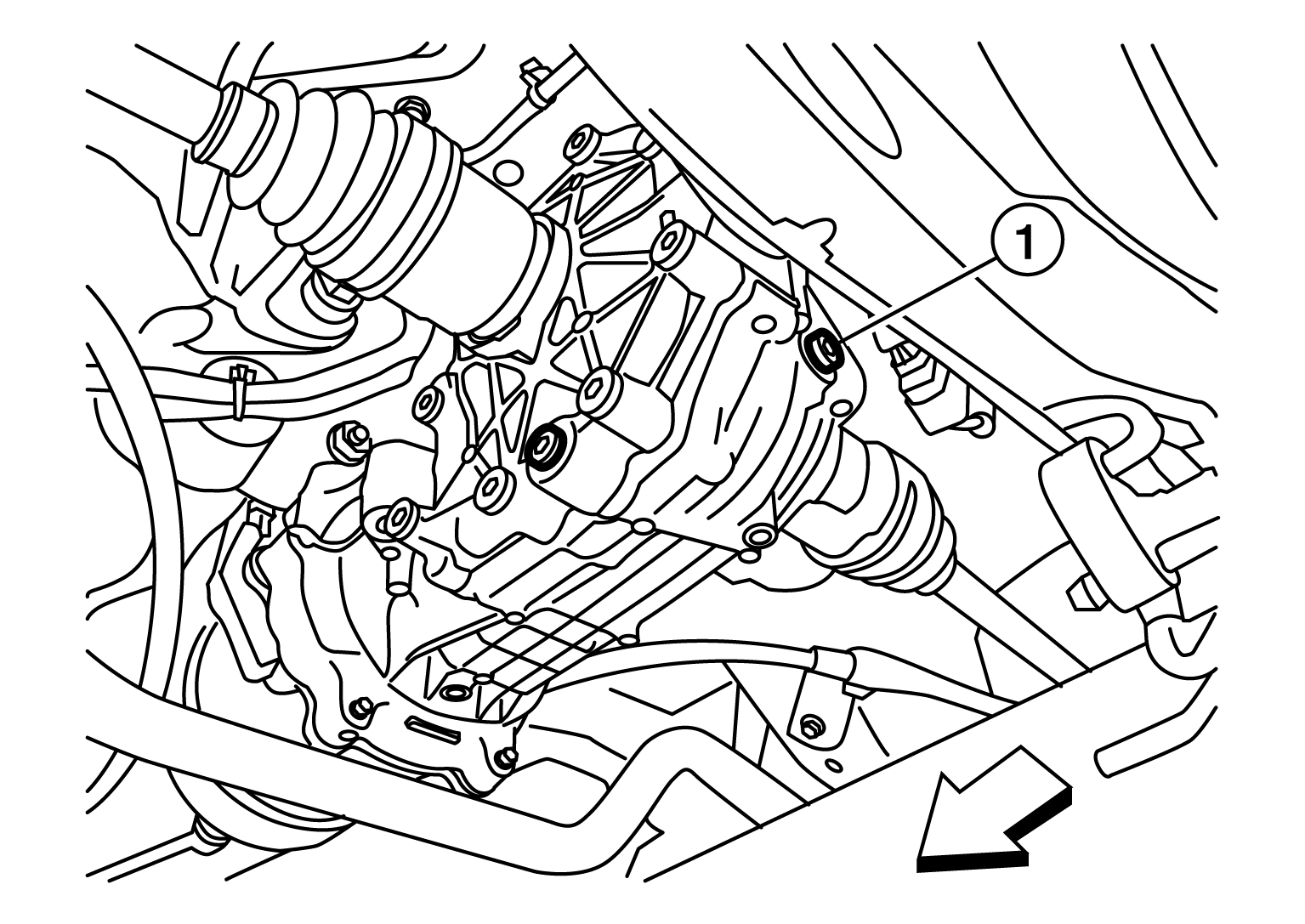

Remove and discard filler plug (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse filler plug.

: Front

Fill with new rear differential gear oil to the specified level near the filler plug hole.

Rear differential gear oil grade and viscosity	: Refer to FLUIDS AND LUBRICANTS (USA and CANADA) .
Rear differential gear oil capacity	: Refer to GENERAL SPECIFICATION .

Install filler plug (1) and tighten to specified torque. Refer to EXPLODED VIEW .
