Rear Differential Gear Oil: Draining

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Do not start engine while checking rear differential gear oil level.

  1. Remove and discard drain plug (1), and drain rear differential gear oil.

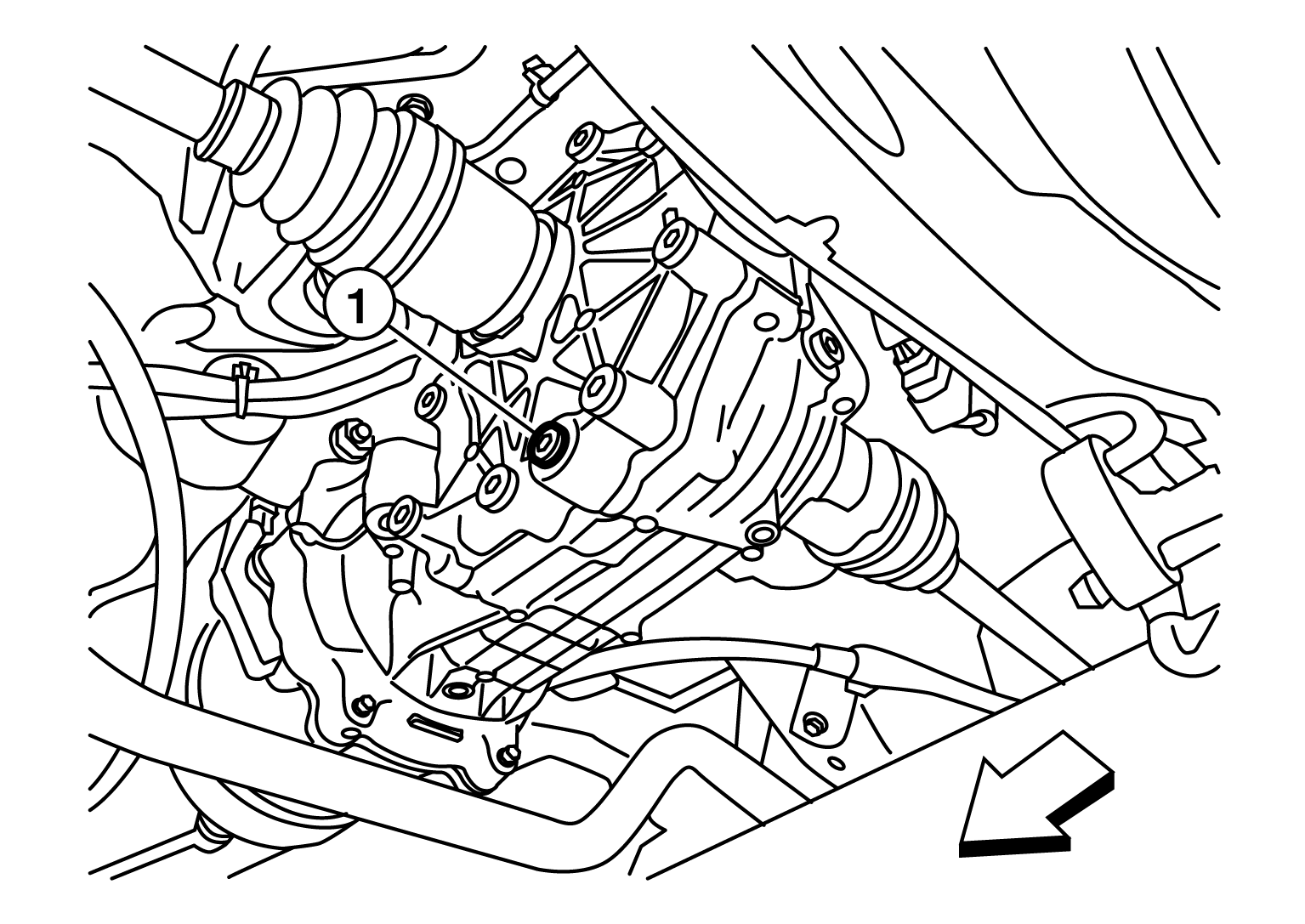

    GNSALDIA0277ZZ-277Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Do not reuse drain plug.

    ARROW : Front
  2. Install drain plug (1) and tighten to specified torque. Refer to EXPLODED VIEW .
