Inspection And Adjustment: Toe-In

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Measure the toe-in of the rear wheels. If out of specification, inspect and replace any damaged or worn rear suspension parts before adjusting.

Total toe-in : Refer to WHEEL ALIGNMENT (UNLADEN *) .

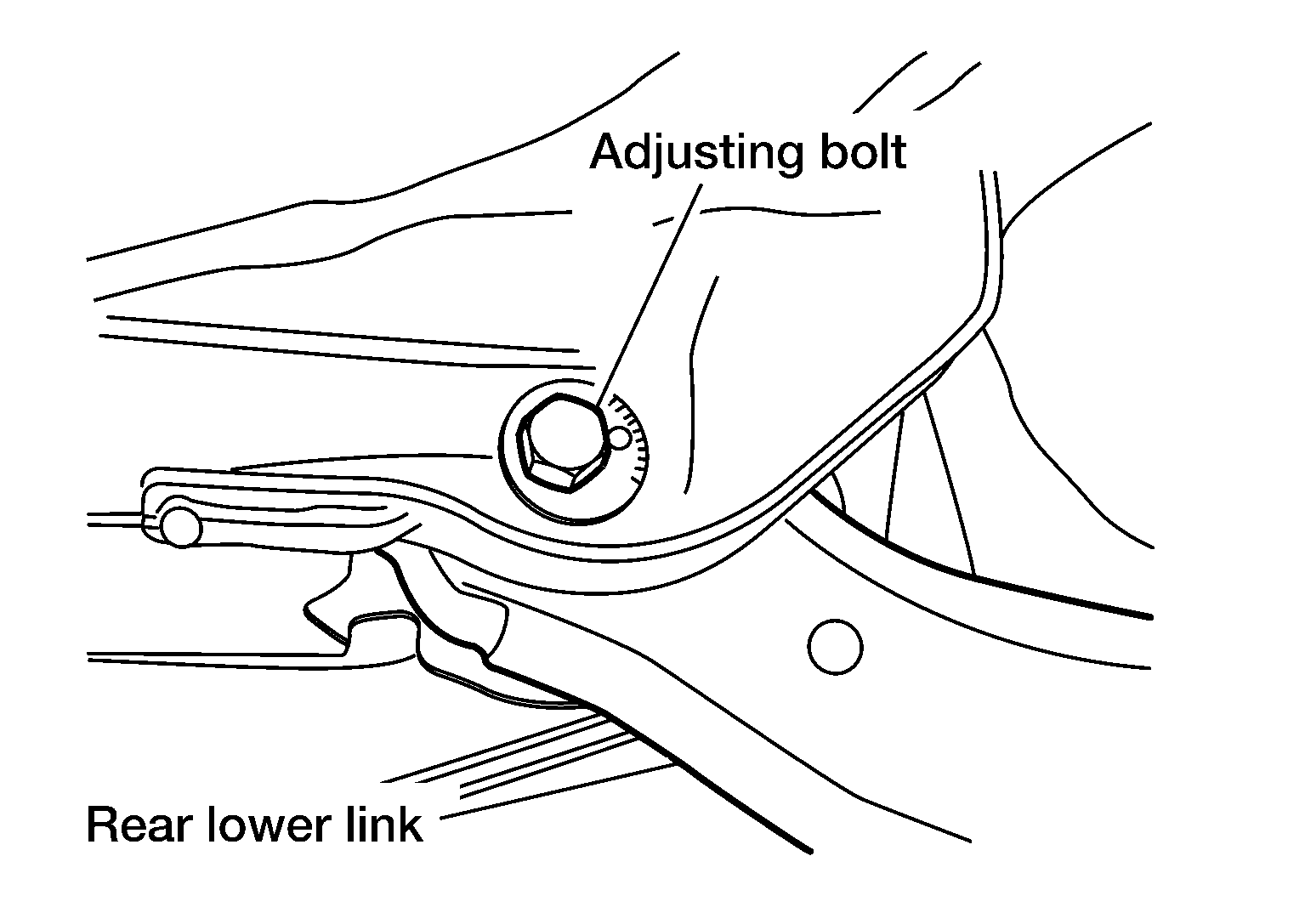

Adjust toe-in by turning adjusting bolt on rear lower link.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:
Toe changes about 1.5 mm (0.059 in) [one side] with each graduation of the adjusting bolt.
After adjusting, tighten the adjusting bolt nut to the specified torque.

Adjusting bolt nut : Refer to EXPLODED VIEW .
