Inspection And Adjustment: Camber

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Measure the camber of both the right and left wheels using a suitable alignment gauge and adjust using the following procedure.

Camber : Refer to WHEEL ALIGNMENT (UNLADEN *) .

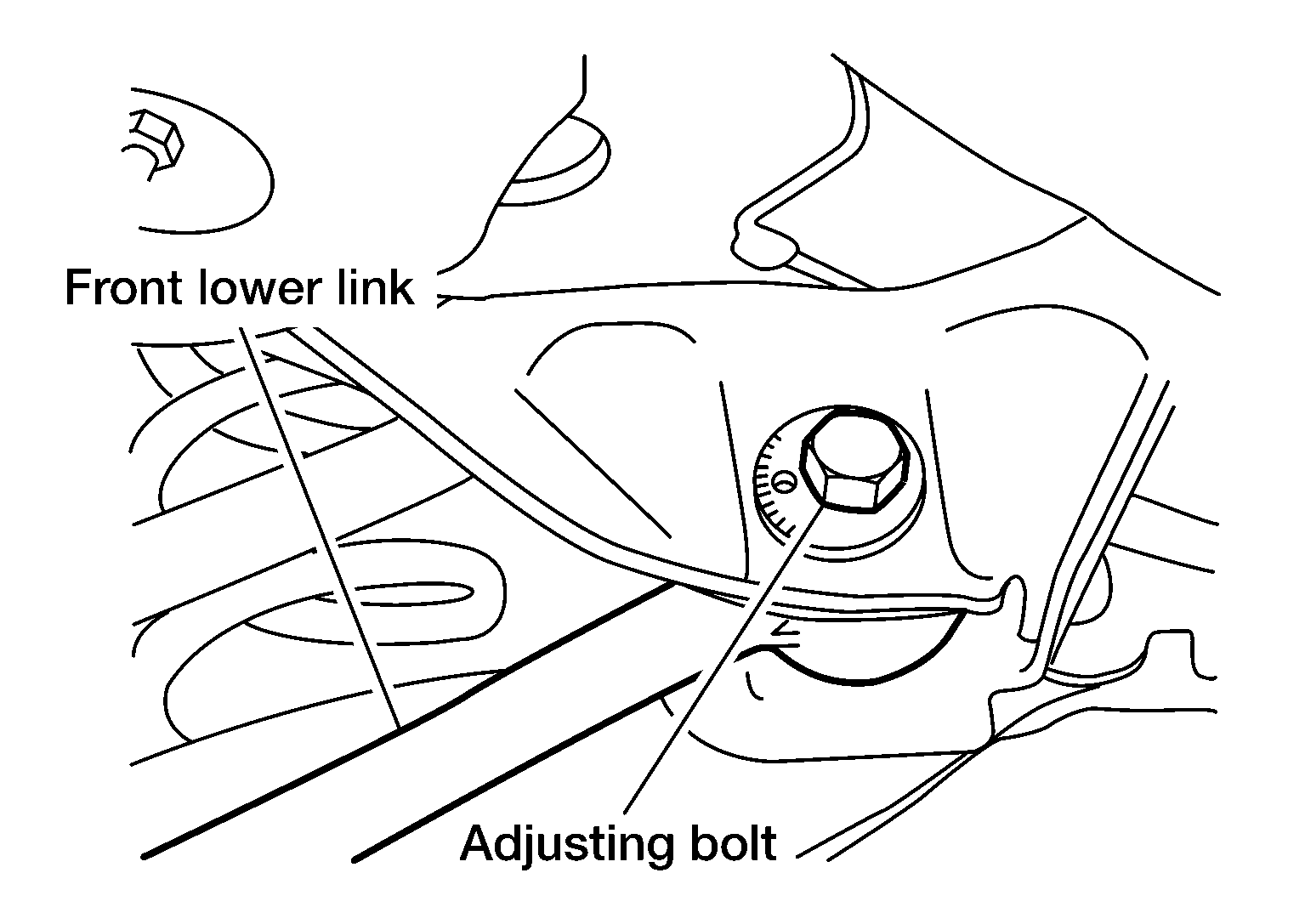

If the camber is not within specification, adjust the camber by turning the adjusting bolts in the same direction.

Turn the adjusting bolts in the same direction to calibrate.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:
Camber changes about 0° 5' (0.08°) with each graduation of the adjusting bolt.

Courtesy of NISSAN NORTH AMERICA, INC.
Tighten the adjusting bolt nuts to the specified torque.

Adjusting bolt nuts : Refer to EXPLODED VIEW .
