Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

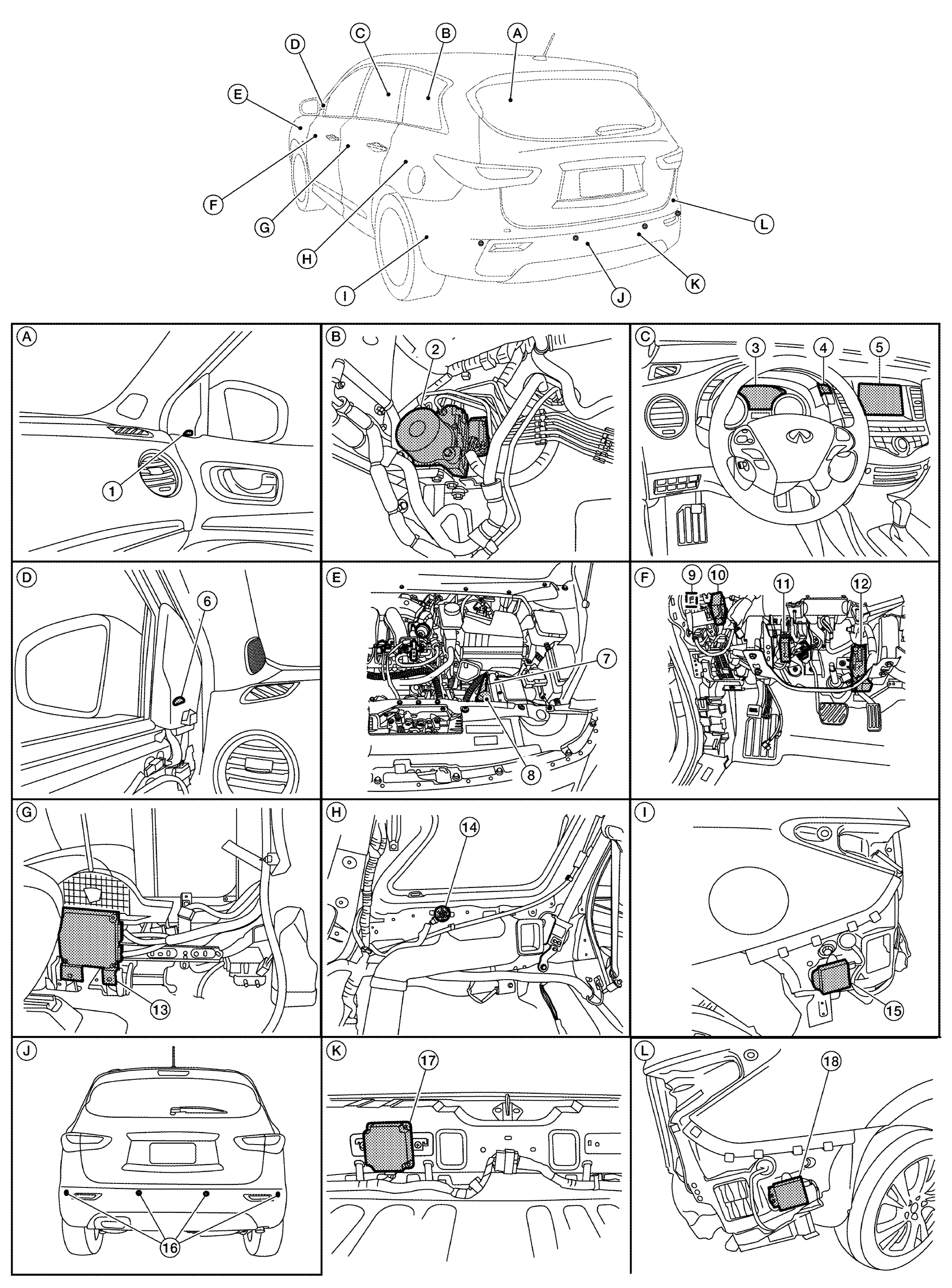

GNSALOIA0410ZZ-410Courtesy of NISSAN NORTH AMERICA, INC.
1. Blind Spot Warning/Blind Spot Intervention indicator RH 2. ABS actuator and electric unit (control unit)
Refer to COMPONENT DESCRIPTION .		 3. Vehicle information display
4. BCI switch 5. Display unit 6. Blind Spot Warning/Blind Spot Intervention indicator LH
7. ECM
Refer to COMPONENT DESCRIPTION .		 8. TCM
Refer to COMPONENT PARTS LOCATION .		 9. Warning buzzer
10. Driver Assistance Buzzer Control Module 11. Sonar control unit
(view with instrument lower panel LH removed)		 12. Accelerator pedal actuator
13. Around View Monitor control unit
(view with center console removed)
Refer to COMPONENT DESCRIPTION .		 14. Sonar buzzer
(view with LH quarter panel finisher removed)		 15. Side radar LH
(view with rear bumper cover removed)
16. Rear sonar sensors 17. ADAS control unit
(view of rear luggage room area)
Refer to COMPONENT DESCRIPTION .		 18. Side radar RH
(view with rear bumper cover removed)
