Component Parts Location

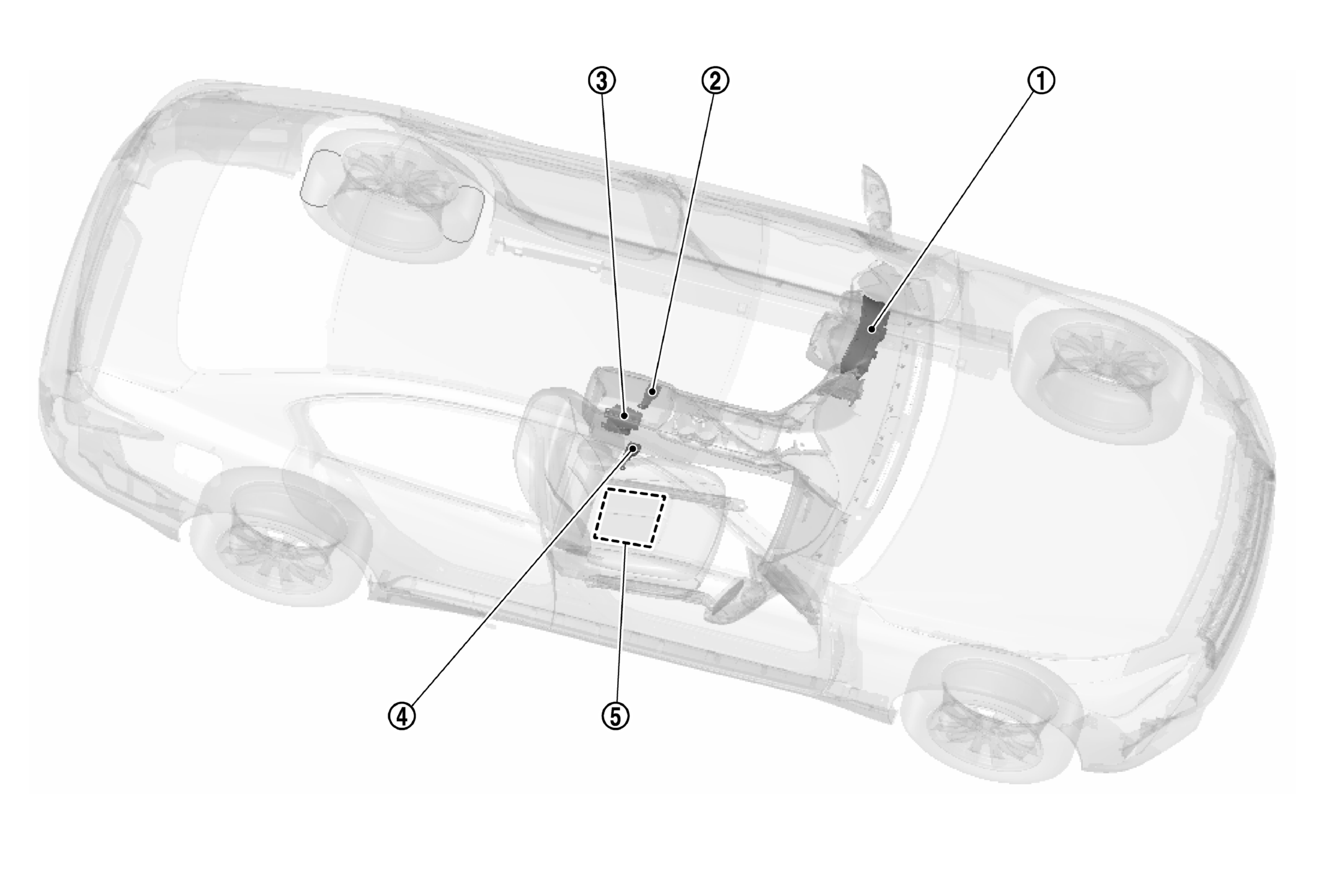

Fig 1: Seat Belt Warning Lamp System Components Location
G09159449Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
  Combination meter Turns the seat belt warning lamp ON when the seat belt is unfastened.
  Seat belt buckle switch (Driver side) Refer to SEAT BELT BUCKLE SWITCH .
  Air bag diagnosis sensor unit Turns ON seat belt warning lamp based on the information from occupant detection system control unit.
Refer to COMPONENT PARTS LOCATION for detailed installation location.
  Seat belt buckle switch (Passenger side) Refer to SEAT BELT BUCKLE SWITCH .
  Occupant detection system control unit and sensor Judges the passenger seat condition based on the information from occupant detection system control unit.
Refer to COMPONENT PARTS LOCATION for detailed installation location.
