Removal And Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear propeller shaft. Refer to REMOVAL AND INSTALLATION .
  2. Remove front propeller shaft. Refer to REMOVAL AND INSTALLATION .
  3. Disconnect AWD solenoid harness connector and separate harness from transfer assembly.
  4. Remove control rod of A/T. Refer to REMOVAL AND INSTALLATION .
  5. Support transfer assembly and transmission assembly with a jack.
    CAUTION:

    Secure transfer assembly and transmission assembly to a jack.

  6. Remove rear engine mounting member and engine mounting insulator. Refer to EXPLODED VIEW .
  7. Lower jack to the position where the top transfer mounting bolts can be removed.

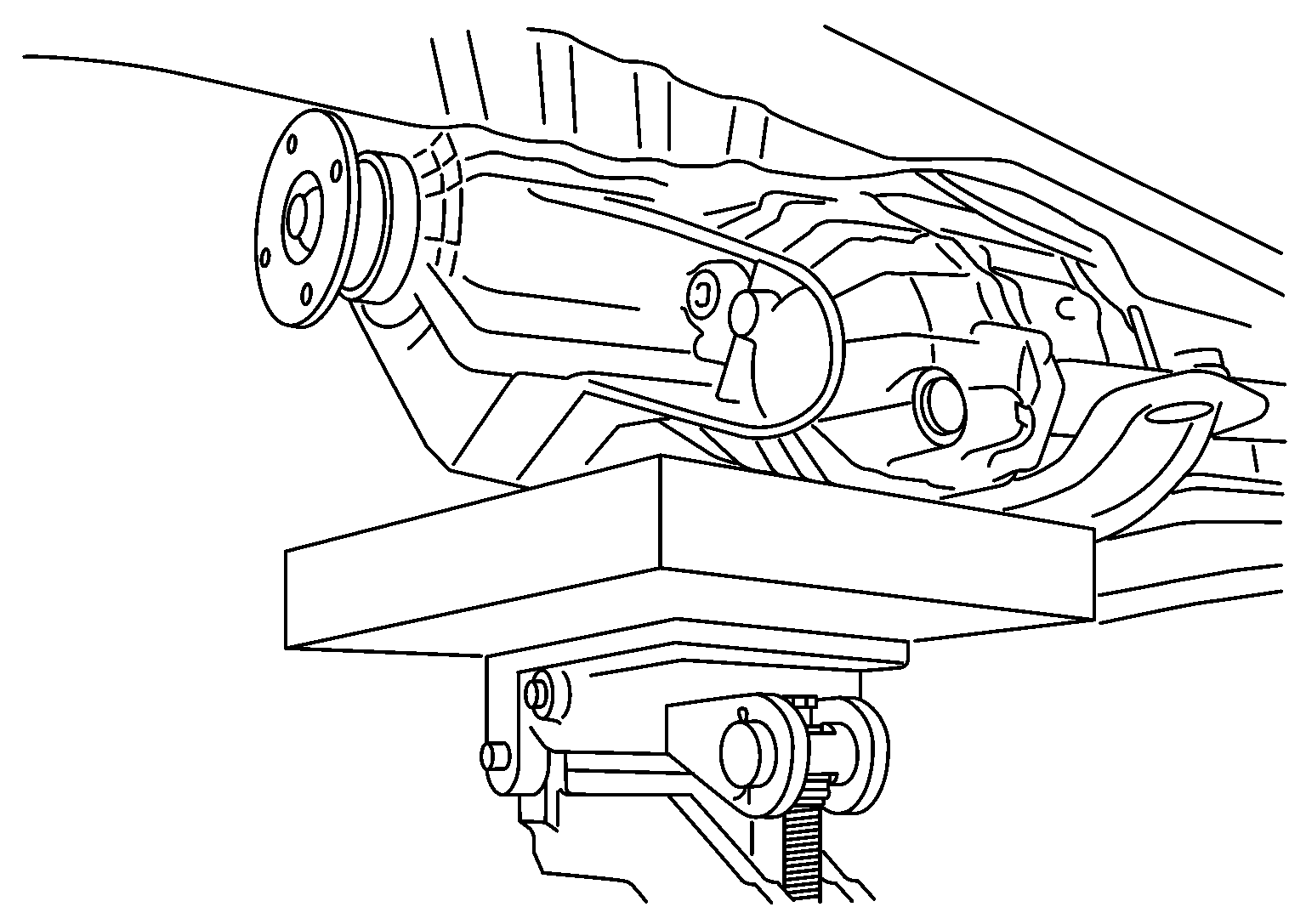

    Fig 1: Supporting Transfer Assembly And Transmission Assembly With Jack
    G04144529Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove transfer breather hose. Refer to REMOVAL AND INSTALLATION .
  9. Remove transfer mounting bolts and separate transfer from transmission.
