Exploded View With Torque Specifications

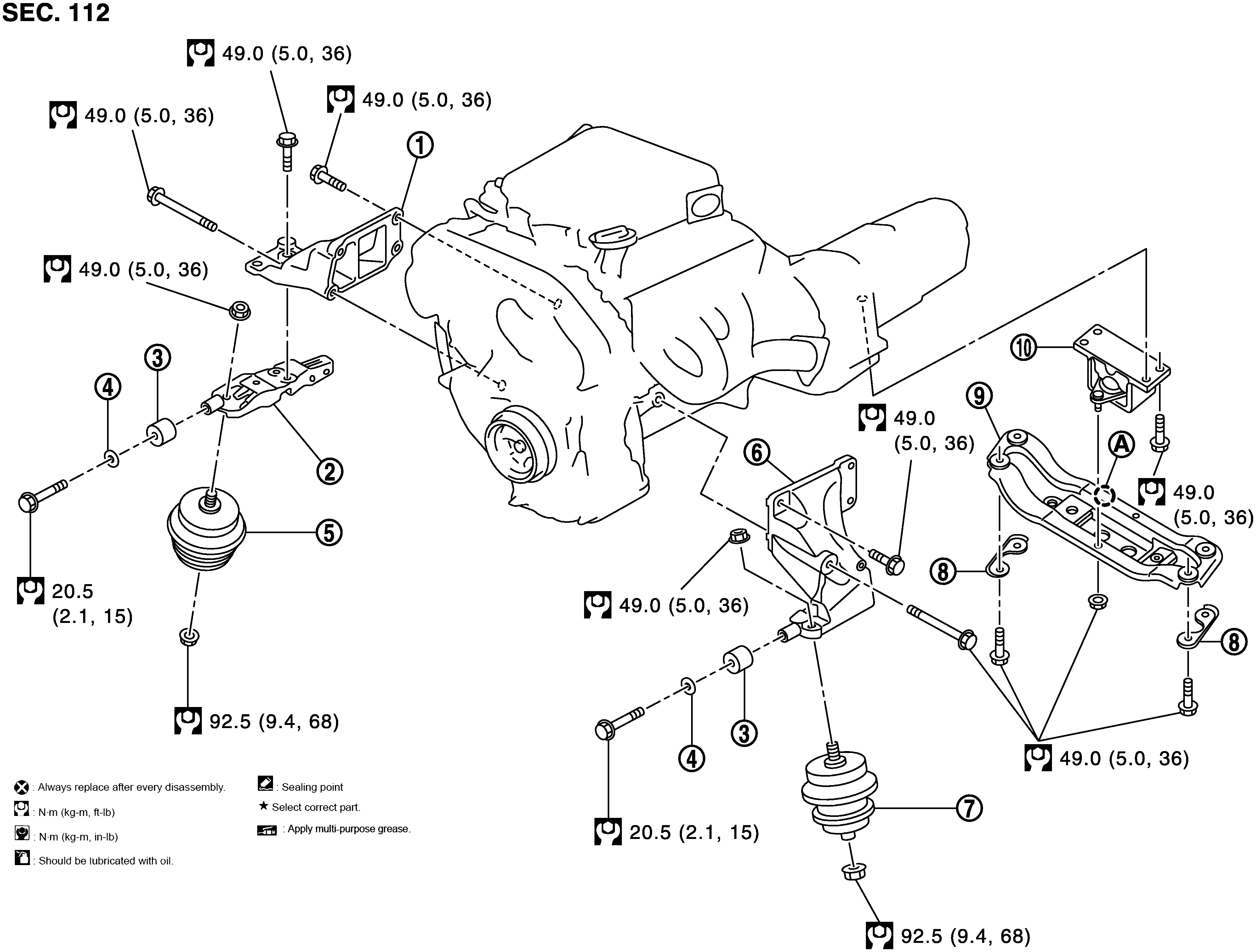

Fig 1: Exploded View Of Engine With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

	Engine mounting bracket (RH)		Engine mounting bracket (RH) (lower)		Dynamic damper
	Washer		Engine mounting insulator (RH)		Engine mounting bracket (LH)
	Engine mounting insulator (LH)		Heat insulator		Rear engine mounting member
	Engine mounting insulator (rear)
	Front mark
	: N•m (kg-m, ft-lb)
