Component Parts Location

WARNING: This page is about a different variant/trim than selected.

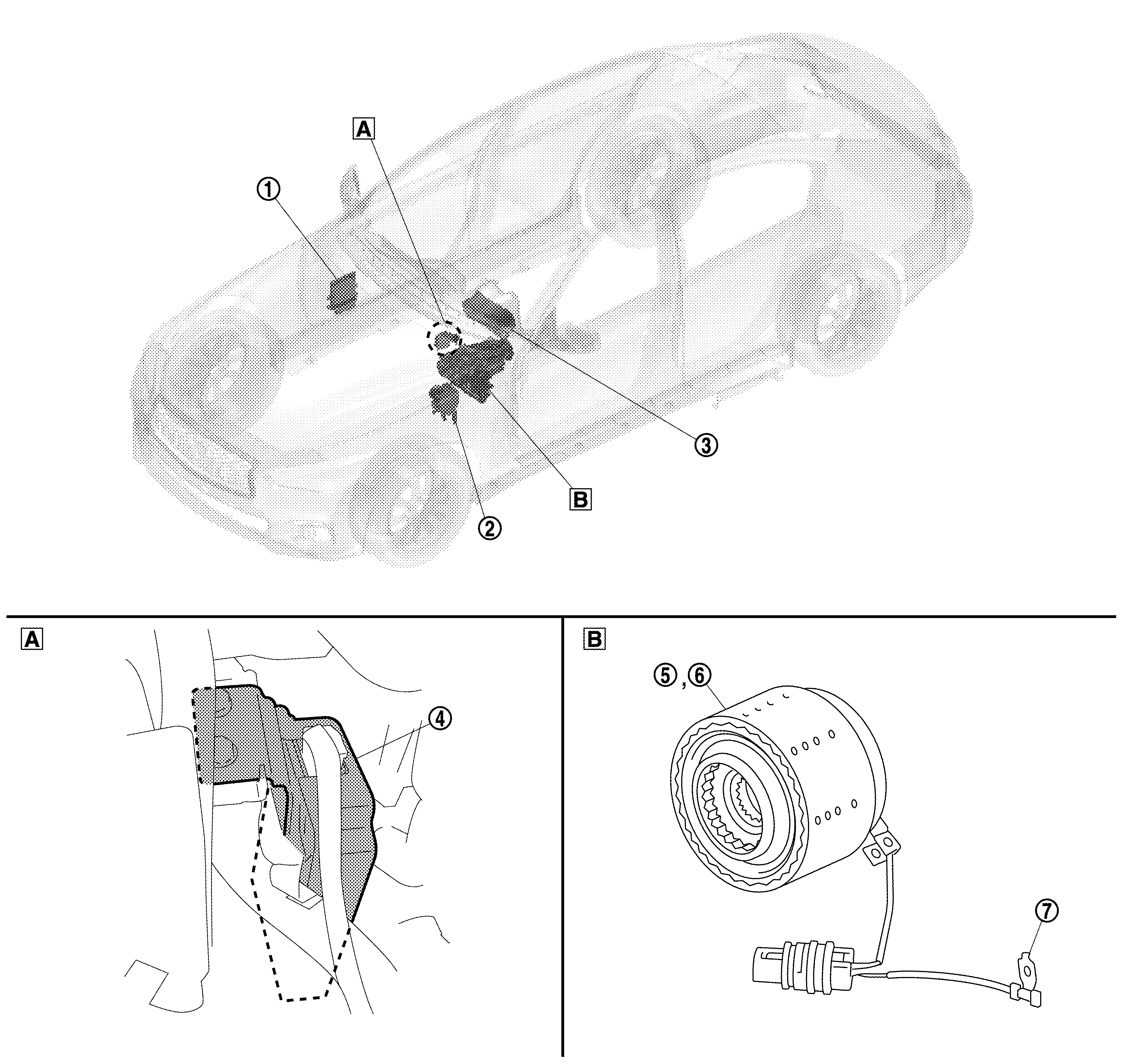

Fig 1: AWD System Component Parts Location
GNSJSDIA4519GB-519Courtesy of NISSAN NORTH AMERICA, INC.
  Instrument lower panel LH removed   Transfer inside
No. Component Function
  ECM Mainly transmits the following signals to AWD control unit via CAN communication.
  • Accelerator pedal position signal
  • Engine speed signal

For detailed installation location, refer to COMPONENT PARTS LOCATION .
  ABS actuator and electric unit (control unit) Mainly transmits the following signals to AWD control unit via CAN communication.
  • Each wheel speed signal
  • Stop lamp switch signal (brake signal)

For detailed installation location, refer to COMPONENT PARTS LOCATION .
  Combination meter Mainly transmits the following signals to AWD control unit via CAN communication.
  • Parking brake switch signal

Mainly receives the following signals from AWD control unit via CAN communication.
  • AWD warning signal

For detailed installation location, refer to COMPONENT PARTS LOCATION .
  AWD control unit
  • AWD actuator relay
 Refer to AWD CONTROL UNIT .
  Electric controlled coupling Refer to ELECTRIC CONTROLLED COUPLING .
  AWD solenoid Refer to AWD SOLENOID .
  Transfer fluid temperature sensor Refer to TRANSFER FLUID TEMPERATURE SENSOR .
