Component Description

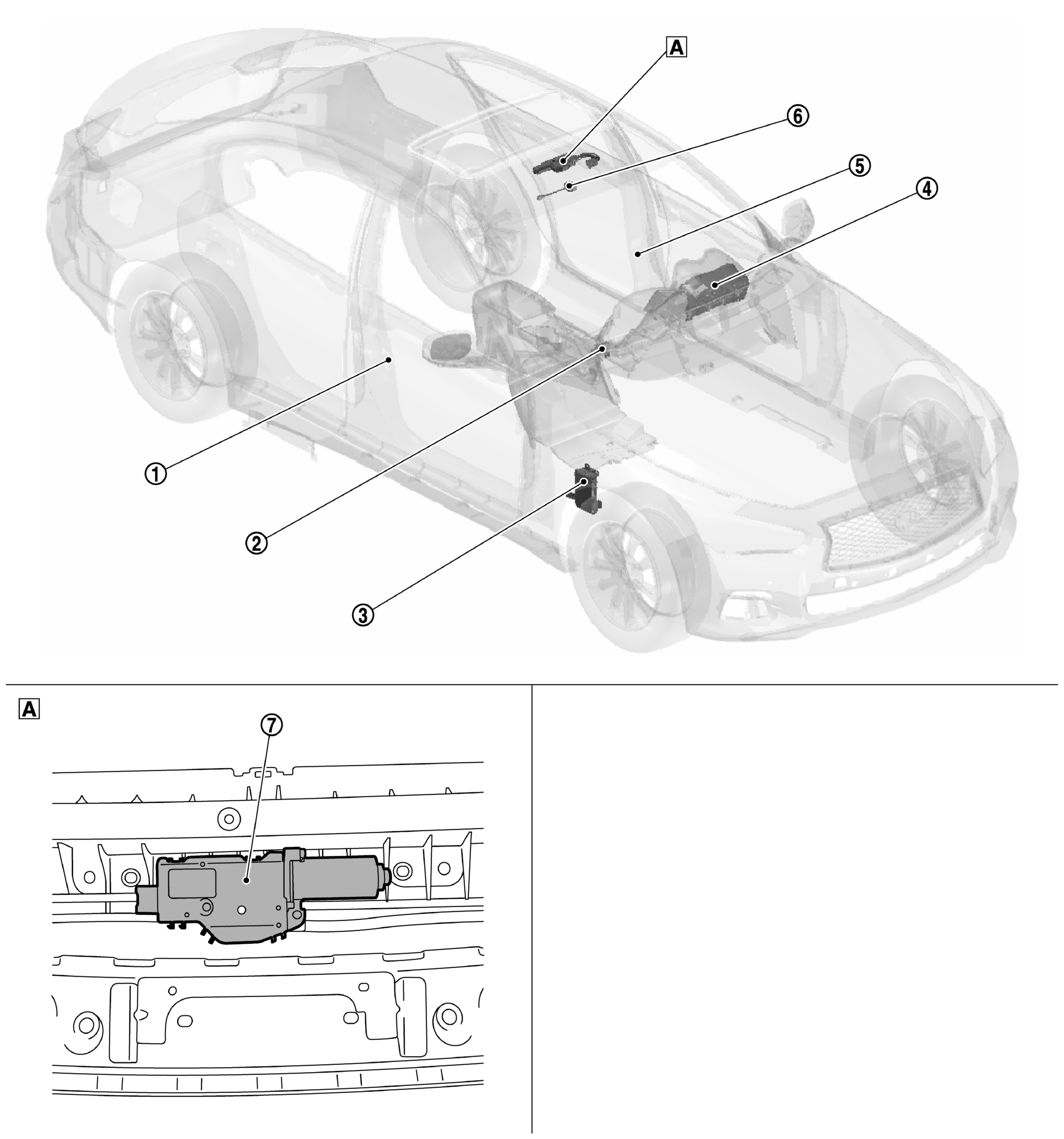

Fig 1: Sunroof System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with headlining removed

No.	Component	Function
	Front door switch RH	Refer to COMPONENT PARTS LOCATION .
	Remote keyless entry receiver	Refer to COMPONENT PARTS LOCATION .
	BCM	Supplies the power supply to sunroof motor assembly. Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Combination meter	Transmits vehicle speed signal to sunroof motor assembly.
	Front door switch LH	Refer to COMPONENT PARTS LOCATION .
	Sunroof switch	Refer to SUNROOF SWITCH .
	Sunroof motor assembly	Refer to SUNROOF MOTOR ASSEMBLY .
