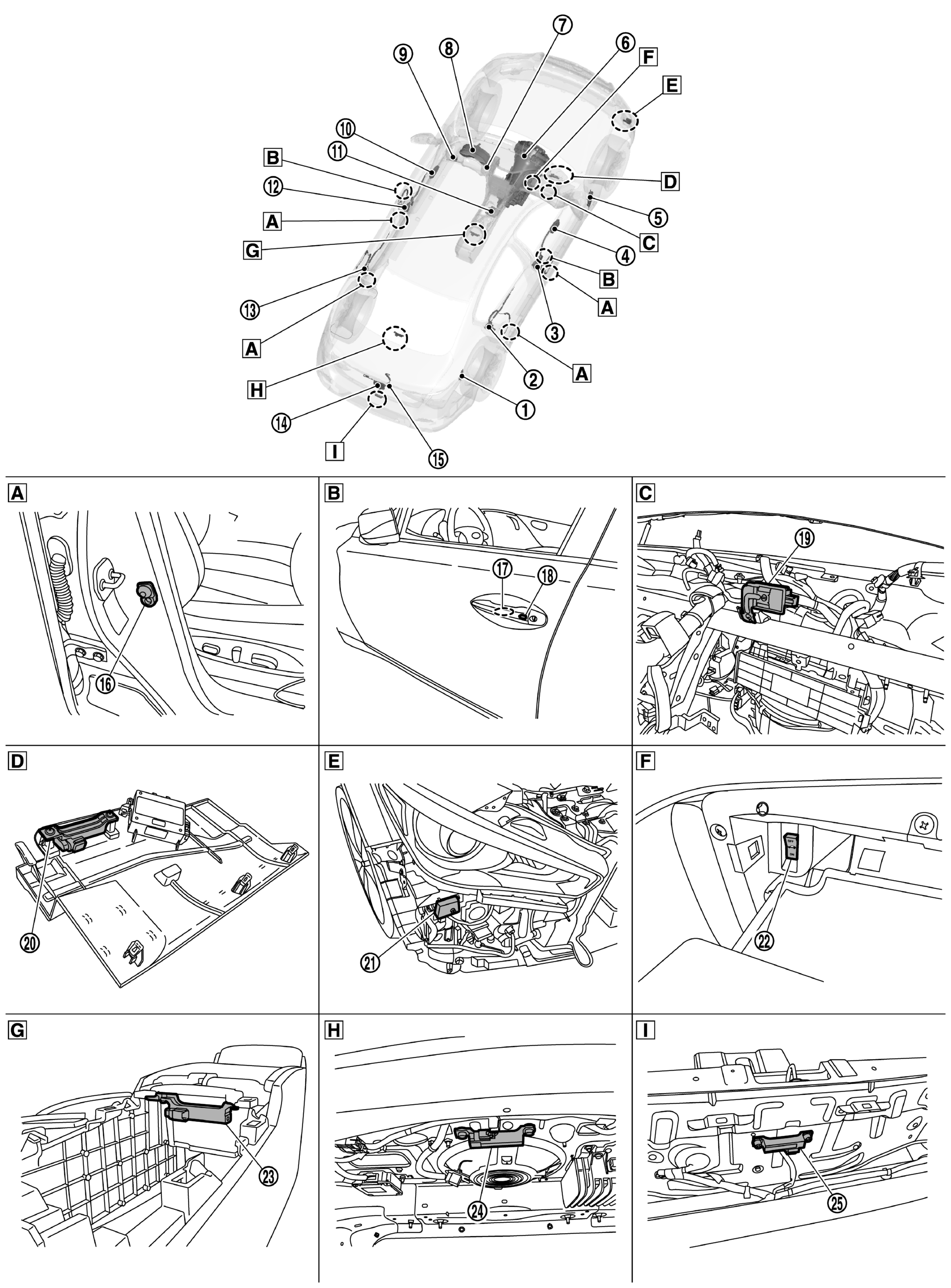

Component Parts Location
| A | View with door opened | B | View with door panel | C | View with instrument panel assembly removed |
| D | View with instrument lower cover removed | E | View with front bumper fascia assembly removed | F | View with glove box lid opened |
| G | View with center console assembly removed | H | View with trunk front finisher removed | I | View with rear bumper fascia assembly removed |
| No. | Component | Function |
|---|---|---|
| 1 | Fuel filler lid lock actuator | FUEL FILLER LID LOCK ACTUATOR |
| 2 | Rear door lock assembly RH | REAR DOOR LOCK ASSEMBLY |
| 3 | Front door lock assembly (passenger side) | FRONT DOOR LOCK ASSEMBLY |
| 4 | Front power window switch (passenger side) (door lock and unlock switch) | DOOR LOCK AND UNLOCK SWITCH |
| 5 | BCM | BCM detects the vehicle status according to signals from each door switch and each outside/inside key antenna. BCM transmits drive signal to door lock actuator when BCM receives operation signal from remote keyless entry receiver and each switch. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 6 | A/T assembly (TCM) | Transmits shift position signal to BCM via CAN communication line. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 7 | Push-button ignition switch | Inputs push-button ignition switch ON/OFF condition to BCM. Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 8 | Combination meter |
|
| 9 | Trunk lid opener switch | TRUNK LID OPENER SWITCH |
| 10 | Power window main switch (door lock and unlock switch) | DOOR LOCK AND UNLOCK SWITCH |
| 11 | Air bag diagnosis sensor unit | Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| 12 | Front door lock assembly (driver side) | FRONT DOOR LOCK ASSEMBLY |
| 13 | Rear door lock assembly LH | REAR DOOR LOCK ASSEMBLY |
| 14 | Trunk lid lock assembly | TRUNK LID LOCK ASSEMBLY |
| 15 | Trunk lid opener request switch | TRUNK LID OPENER REQUEST SWITCH |
| 16 | Door switch | DOOR SWITCH |
| 17 | One touch unlock sensor assembly | ONE TOUCH UNLOCK SENSOR ASSEMBLY |
| 18 | Front door request switch | DOOR REQUEST SWITCH |
| 19 | Remote keyless entry receiver | REMOTE KEYLESS ENTRY RECEIVER |
| 20 | Inside key antenna (instrument lower) | INSIDE KEY ANTENNA |
| 21 | Intelligent Key warning buzzer | INTELLIGENT KEY WARNING BUZZER |
| 22 | Trunk lid opener cancel switch | TRUNK LID OPENER CANCEL SWITCH |
| 23 | Inside key antenna (console) | INSIDE KEY ANTENNA |
| 24 | Inside key antenna (trunk room) | INSIDE KEY ANTENNA |
| 25 | Outside key antenna (rear bumper) | OUTSIDE KEY ANTENNA (REAR BUMPER) |
