Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "EXPLODED VIEW "
  2. Remove third row seat. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove Bose speaker amp screws (A).
  4. Disconnect the harness connectors (B) from the Bose speaker amp. (1) and remove.

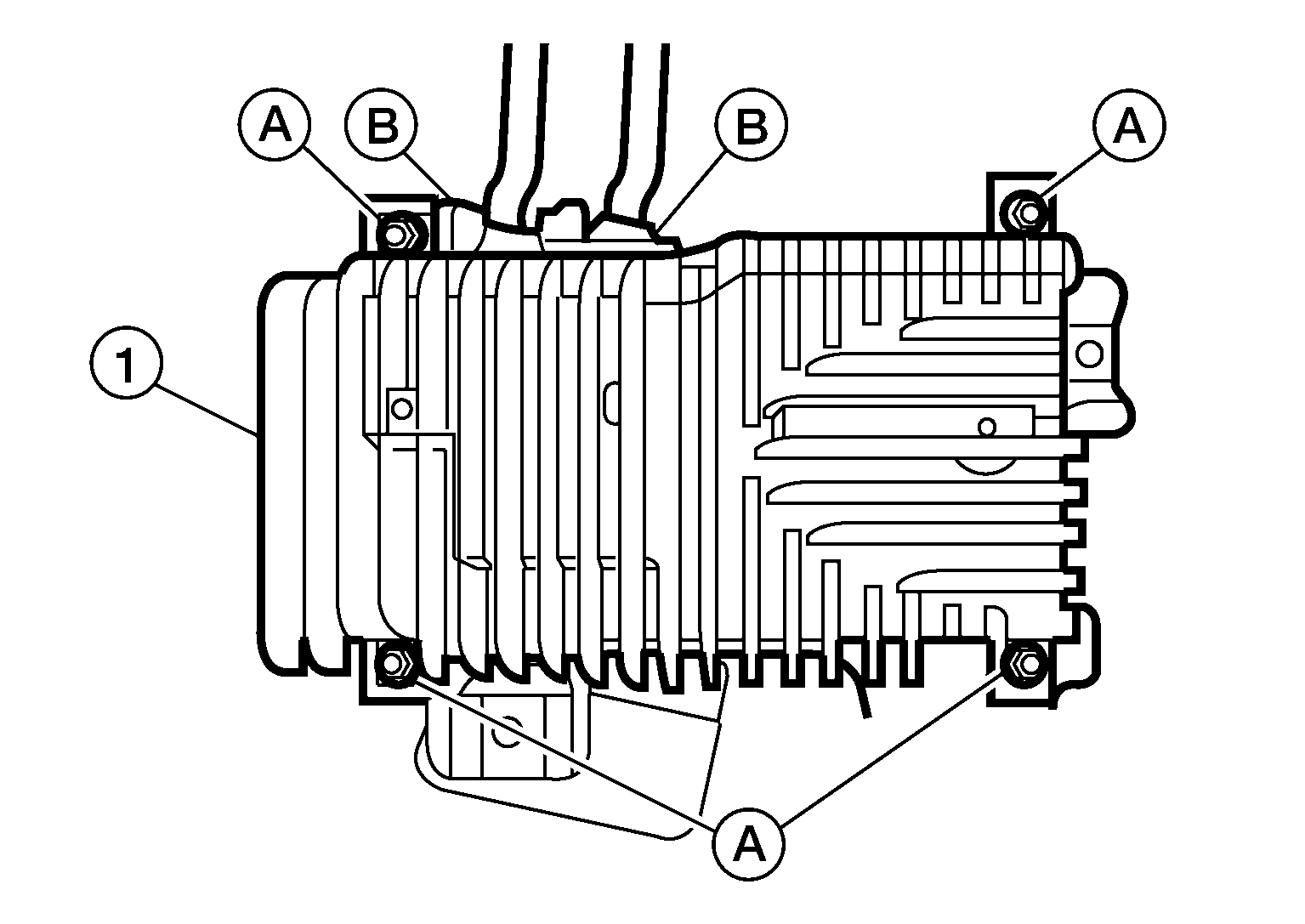

    Fig 1: Identifying Harness Connectors And Bose Speaker Amp Screws
    G05693117Courtesy of NISSAN NORTH AMERICA, INC.
