QX60 Base, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements (Except Hybrid)
>>
Removal And Installation
>>
Battery
>>
Exploded View
Exploded View

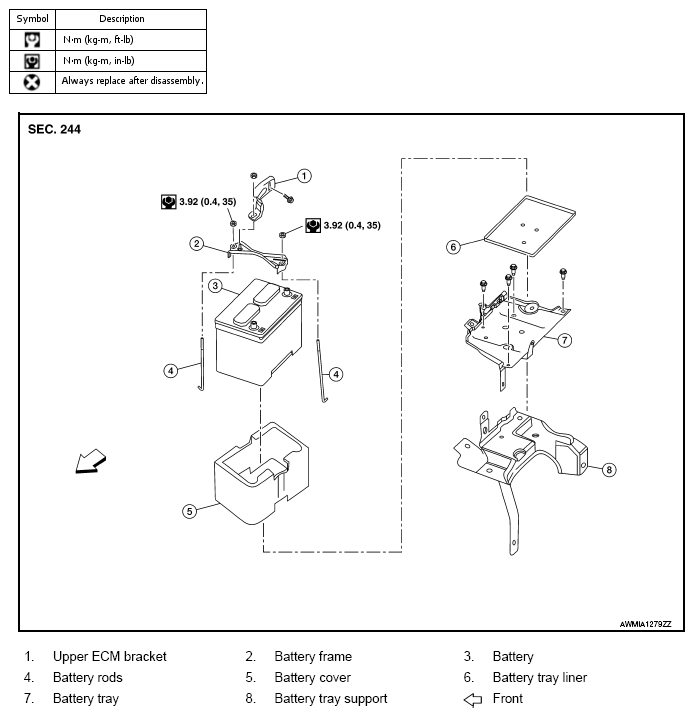

Fig 1: Exploded View Of Battery With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
