Driver Assistance Systems: Wiring Diagram

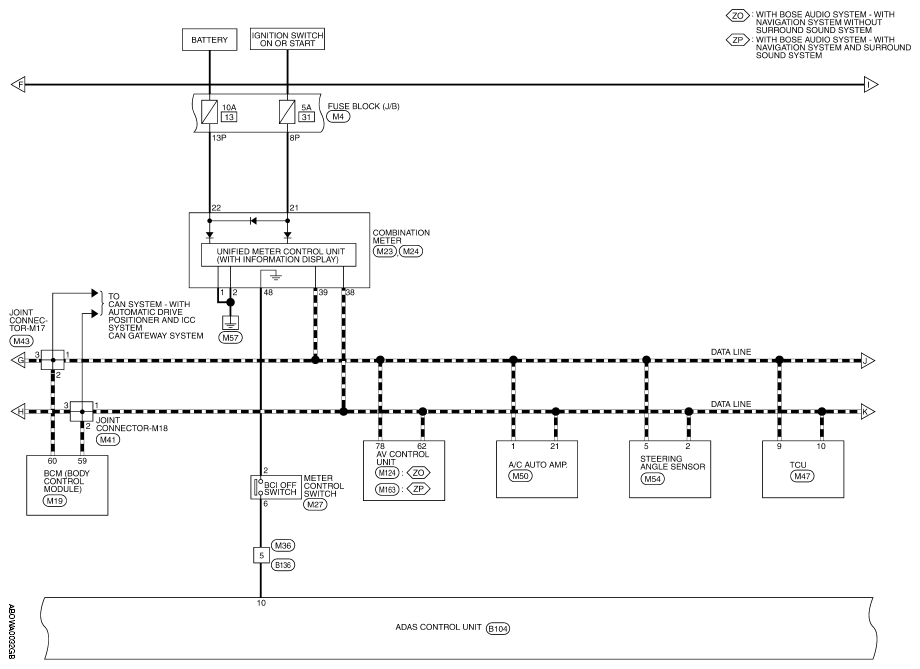

Fig 1: Driver Assistance Systems Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

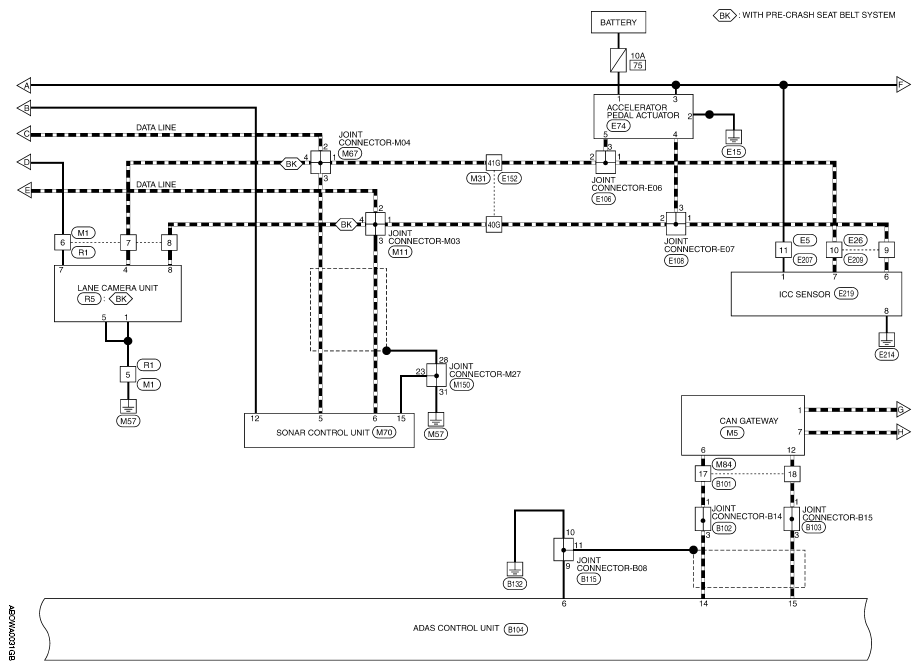

Fig 2: Driver Assistance Systems Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

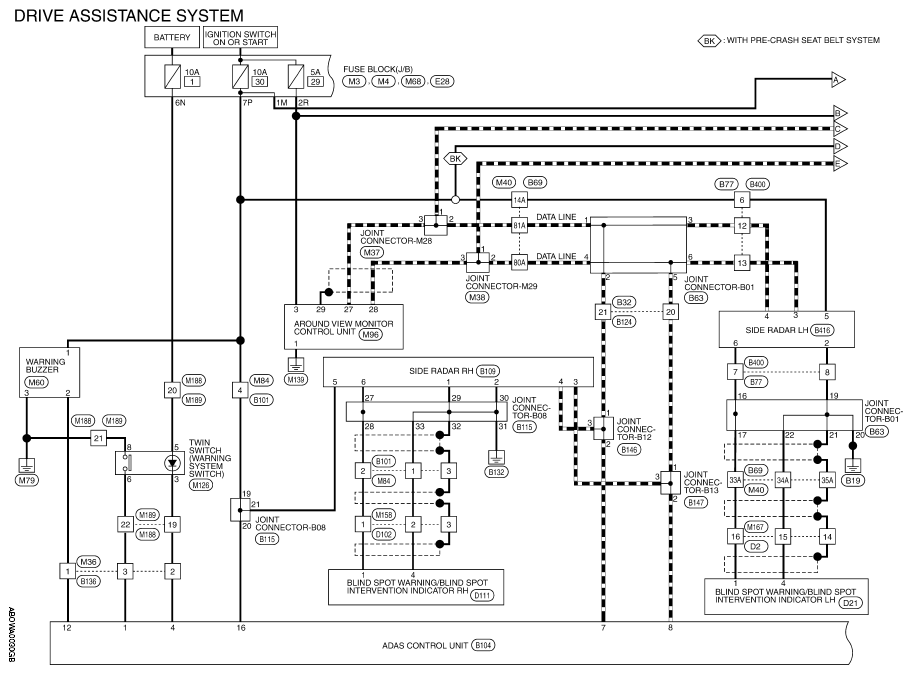

Fig 3: Driver Assistance Systems Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

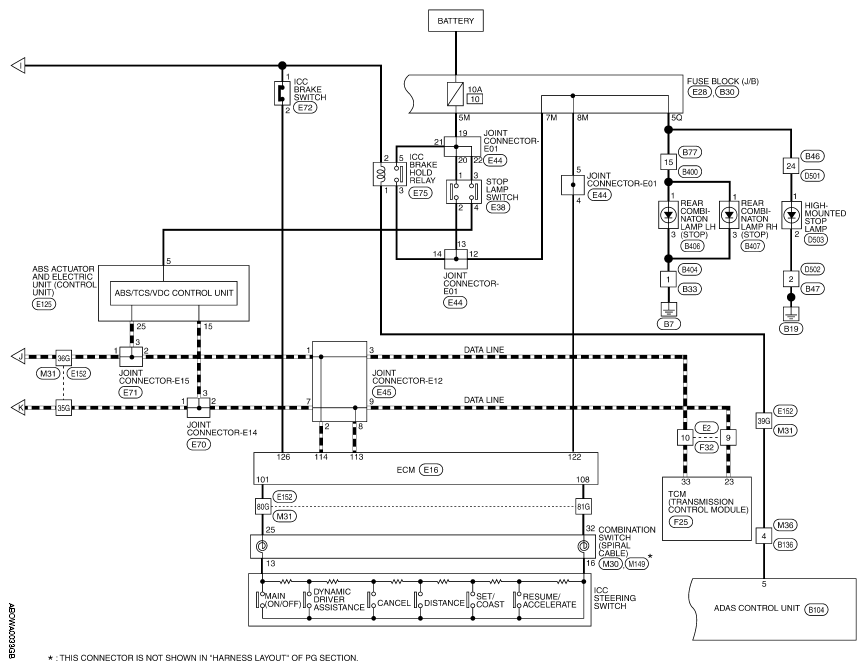

Fig 4: Driver Assistance Systems Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
