VK50VE: Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear propeller shaft. Refer to "EXPLODED VIEW ".
  2. Remove self-lock nut of companion flange with a flange wrench (commercial service tool).
  3. Put a matching mark (A) on the end of the main shaft. The mark should be in line with the mark (B) on the companion flange.
    CAUTION: For matching mark, use paint. Never damage main shaft.
    Fig 1: Identifying Matching Marks On Main Shaft And Companion Flange
    G05979338Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the companion flange with a puller (A) and a replacer (B).

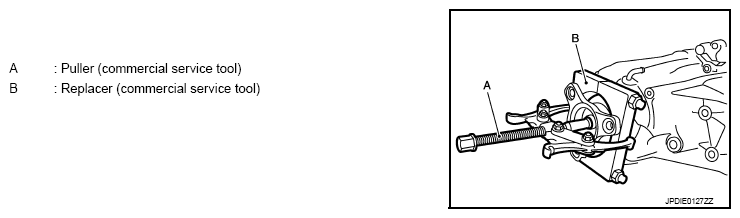

    Fig 2: Removing Companion Flange Using Puller And Replacer
    G09002566Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Never damage the companion flange.
  5. Remove the rear oil seal with the puller (A) [SST: KV381054S0 (J-34286)].
    CAUTION: Never damage the rear case.
    Fig 3: Removing Rear Oil Seal Using Puller
    G05979333Courtesy of NISSAN NORTH AMERICA, INC.
