Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the selector lever to "N" position, and release the parking brake.
  2. Remove air duct (inlet). Refer to "EXPLODED VIEW ".
  3. Remove engine under cover with a power tool. Refer to "EXPLODED VIEW ".
  4. Remove A/T fluid cooler hose A and A/T fluid cooler hose B.
  5. Disconnect heated oxygen sensor 2 connectors (A).

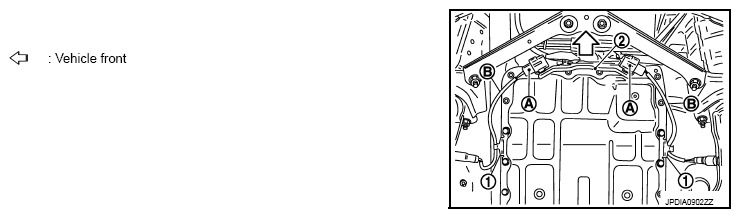

    Fig 1: Locating Heated Oxygen Sensor 2 Harness, Clips And Harness Bracket
    G09002243Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove heated oxygen sensor 2 harness (B) from clips (1).
  7. Remove harness bracket (2) from A/T assembly. Refer to "EXPLODED VIEW ".
  8. Remove front propeller shaft. Refer to "VK50VE: EXPLODED VIEW ".
  9. Remove front drive shaft (right side). Refer to "EXPLODED VIEW ".
  10. Remove A/T fluid cooler tubes from A/T assembly and engine assembly.
  11. Plug up opening such as the A/T fluid cooler tube hole.
  12. Remove clips and bracket.
  13. Remove A/T fluid cooler tubes from the vehicle.
    CAUTION: Be careful not to bend A/T fluid cooler tubes.
