VK50VE: Removal and Installation: Installation

Apply transfer fluid to rear oil seal, install it with the drifts (A and B) within the dimension (L) shown as follows:
L: 6.7 - 7.3 mm (0.264 - 0.287 in)
CAUTION:
- Never reuse rear oil seal.
- Apply petroleum jelly to oil seal lip.
- When installing, never incline rear oil seal.

  Fig 1: Installing Rear Oil Seal Using Drifts (VK50VE)
  Courtesy of NISSAN NORTH AMERICA, INC.

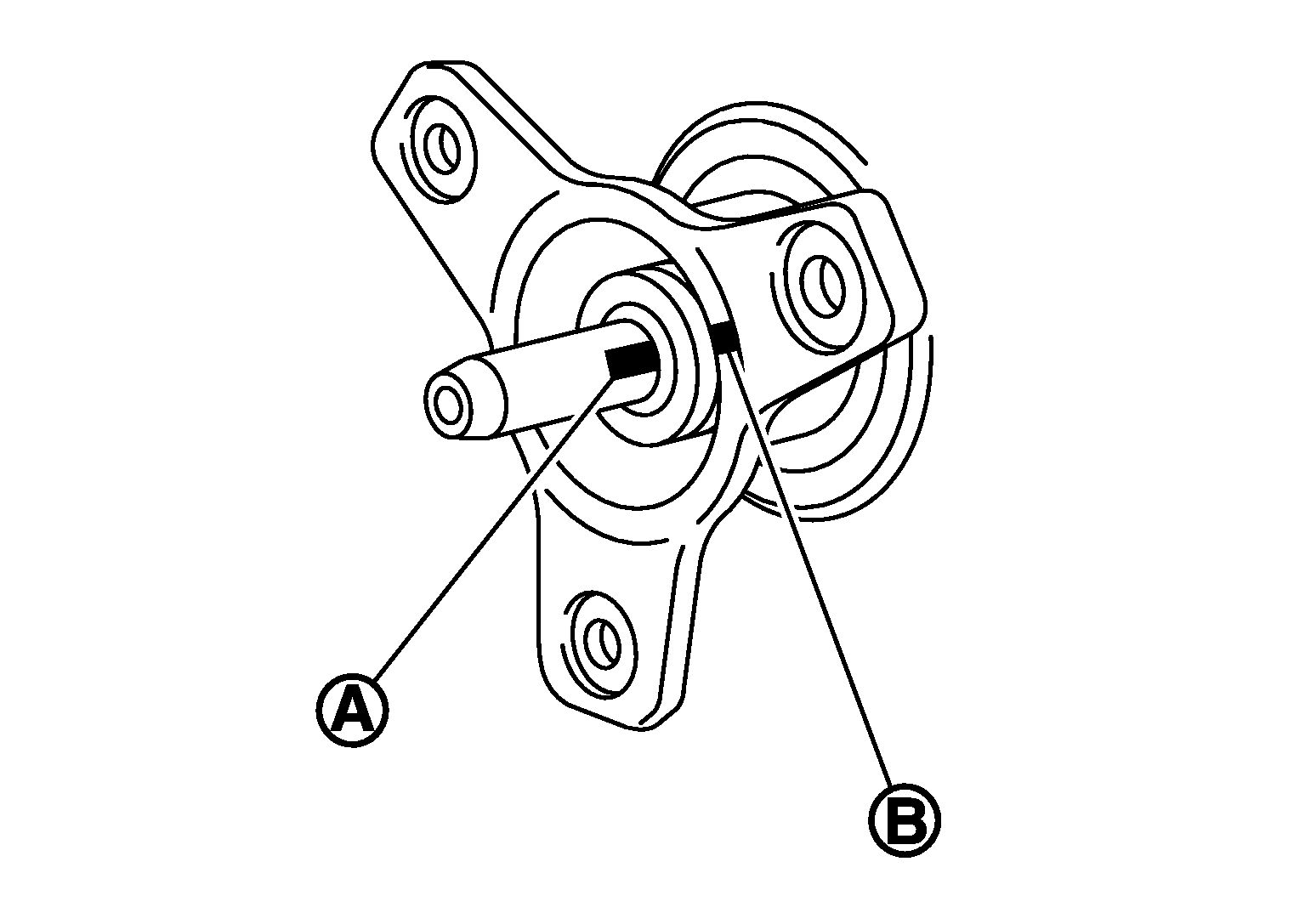

Align the matching mark (A) of main shaft with the mark (B) of companion flange, then install the companion flange.

Fig 2: Identifying Matching Mark On Main Shaft And Companion Flange
Courtesy of NISSAN NORTH AMERICA, INC.

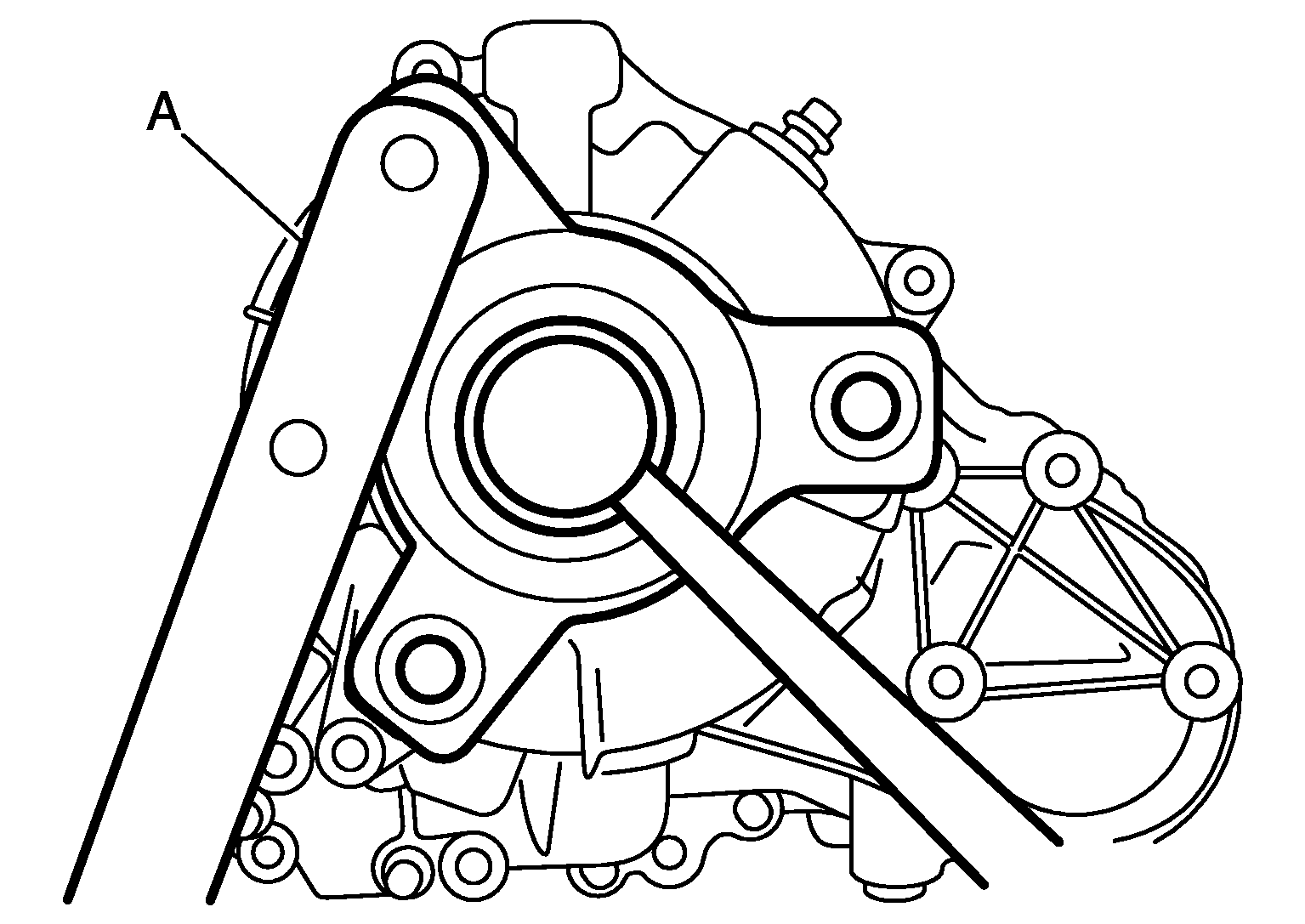

Using a flange wrench (A) (commercial service tool), install the self-lock nut of companion flange and tighten to the specified torque. Refer to "VK50VE: EXPLODED VIEW ".
CAUTION: Never reuse self-lock nut.
Install the rear propeller shaft. Refer to "EXPLODED VIEW ".
Check fluid level. Refer to "VK50VE: INSPECTION ".

Fig 3: Installing Companion Flange Self Lock Nut Using Flange Wrench
Courtesy of NISSAN NORTH AMERICA, INC.
