Rear Propeller Shaft (3F-R-2VL107)
>>
Removal And Installation
>>
Rear Propeller Shaft
>>
Exploded View
Exploded View

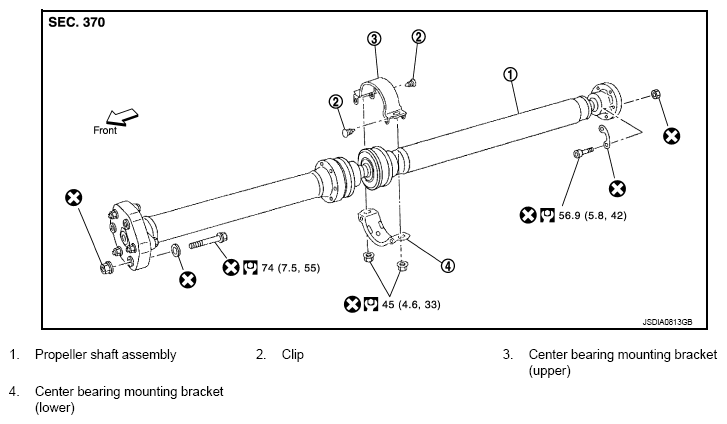

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
