Oil Level

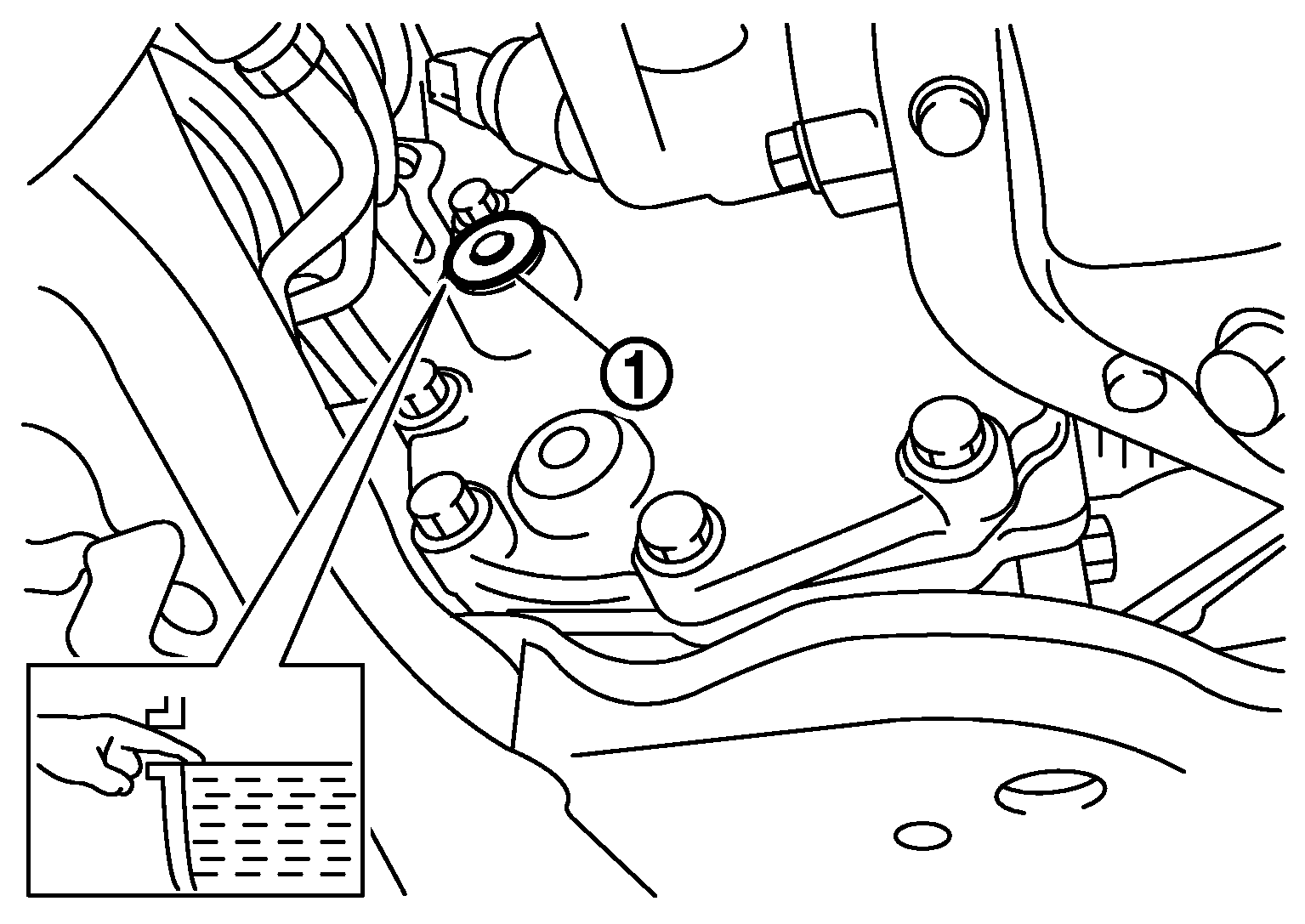

- Remove filler plug (1) and check oil level from filler plug mounting hole as shown in the figure.CAUTION: Never start engine while checking oil level.
- Set a gasket on filler plug and install it on final drive assembly. Refer to "EXPLODED VIEW ".
CAUTION:
Never reuse gasket.
