Exploded View

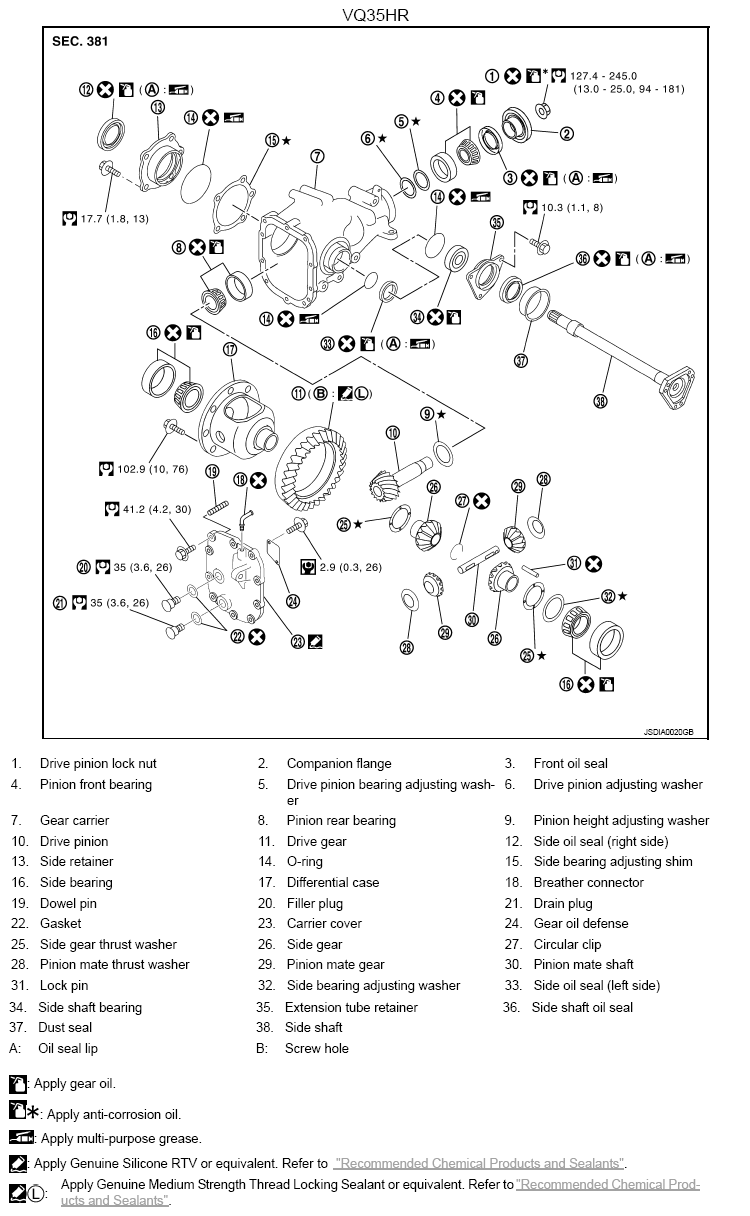

Fig 1: Exploded View Of Differential Assembly (VQ35HR) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.

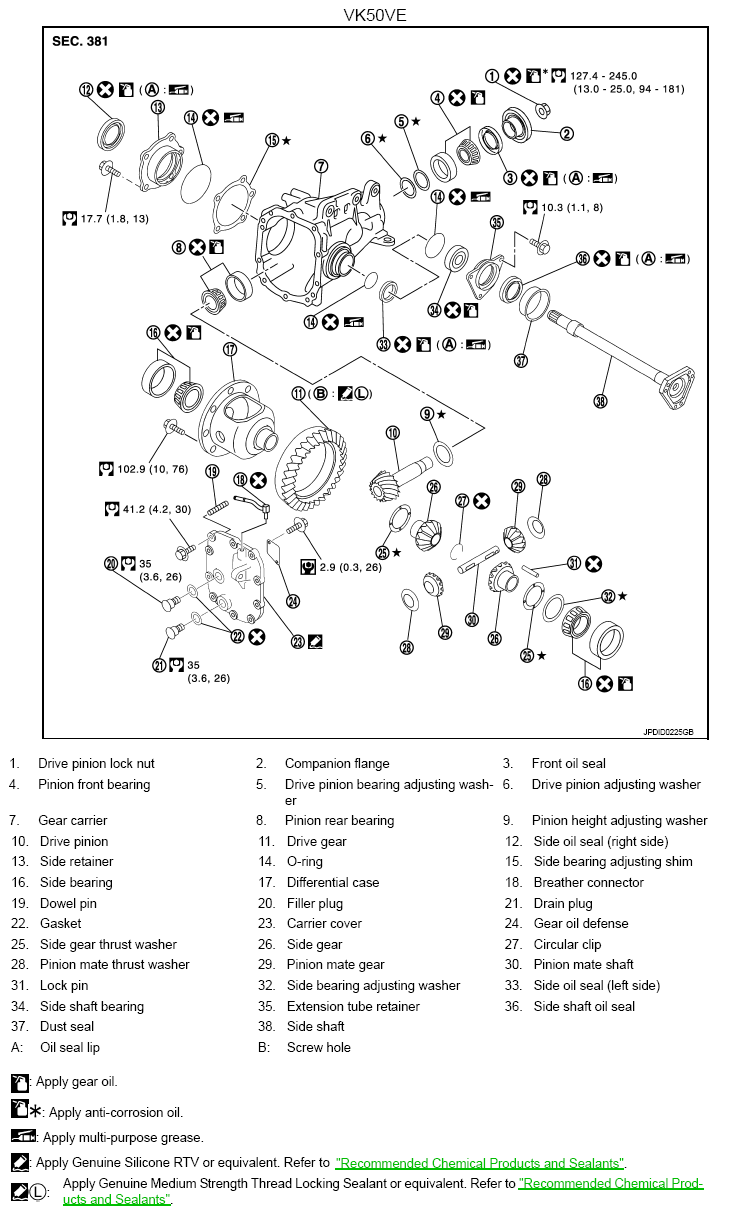

Fig 2: Exploded View Of Differential Assembly (VK50VE) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
