Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the rear propeller shaft. Refer to "EXPLODED VIEW ".
Remove self-lock nut of companion flange with a flange wrench (commercial service tool).
Put matching mark (A) on the end of the main shaft. The mark should be in line with the mark (B) on the companion flange.
CAUTION: For matching mark, use paint. Never damage main shaft.

Fig 1: Aligning Matching Mark Of Main Shaft With Mark Of Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the companion flange with a puller (A) (commercial service tool).
CAUTION: Never damage the companion flange.

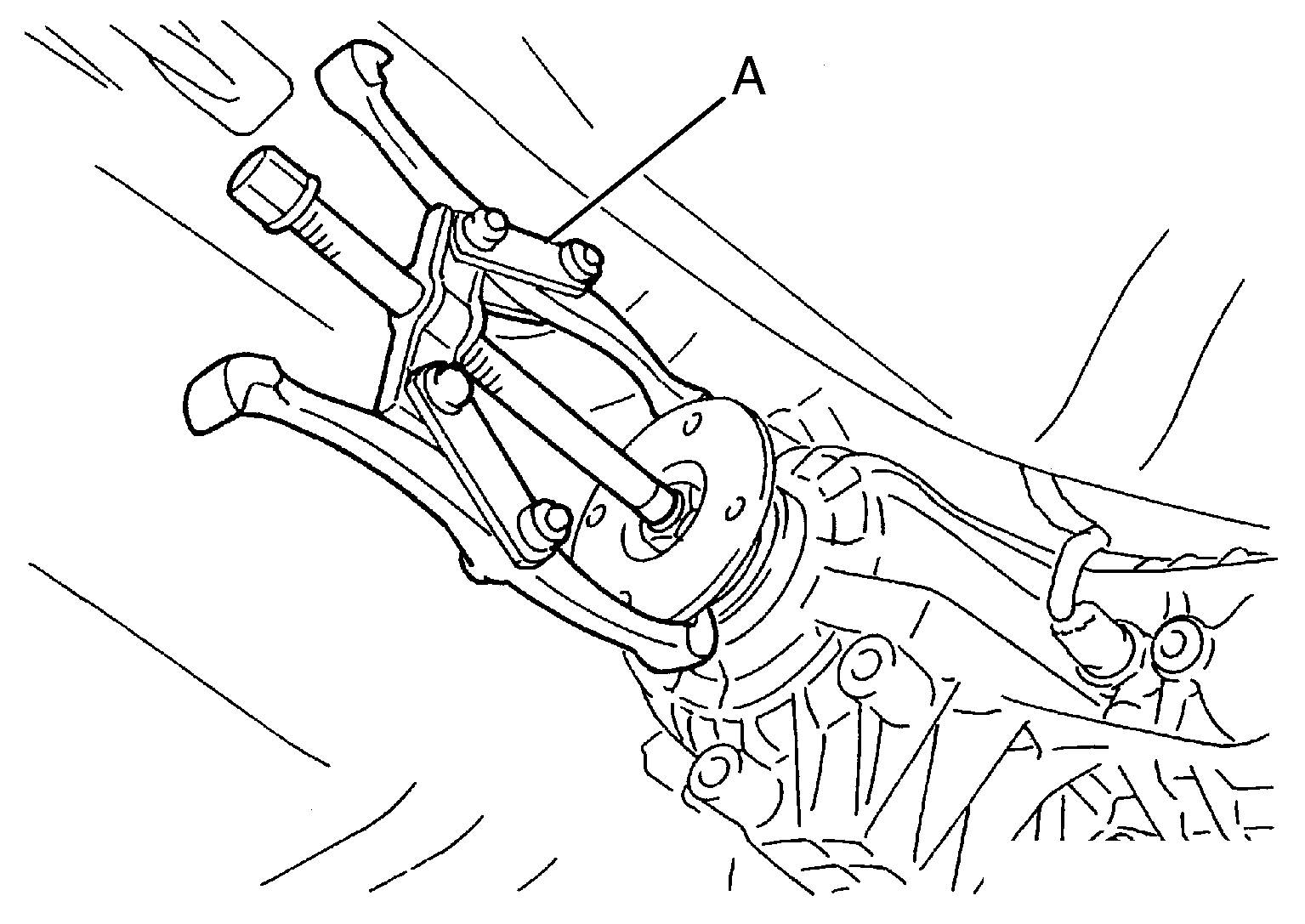

Fig 2: Removing Companion Flange With Puller (Special Commercial Service Tool)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear oil seal with the puller (A) [SST: KV381054S0 (J-34286)].
CAUTION: Never damage the rear case.

Fig 3: Removing Rear Oil Seal With Special Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
