Rear Propeller Shaft (3F80A-1VL107) -- G37 Coupe
>>
Removal And Installation
>>
Rear Propeller Shaft
>>
Exploded View
Exploded View

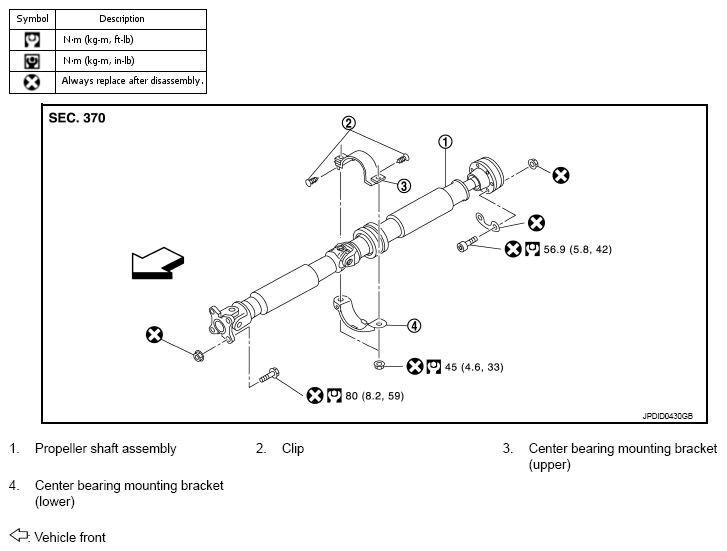

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in illustration.
