Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply transfer fluid to outside of front oil seal, install it with a drift (A) [SST: ST27862000 (-)] until the end face of front case.
    CAUTION:
    • Never reuse front oil seal.
    • Apply petroleum jelly to oil seal lip.
    • When installing, never incline front oil seal.
  2. Install front propeller shaft. Refer to "EXPLODED VIEW ".
  3. Fill with new transfer fluid, check fluid level and for fluid leakage. Refer to "INSPECTION ".

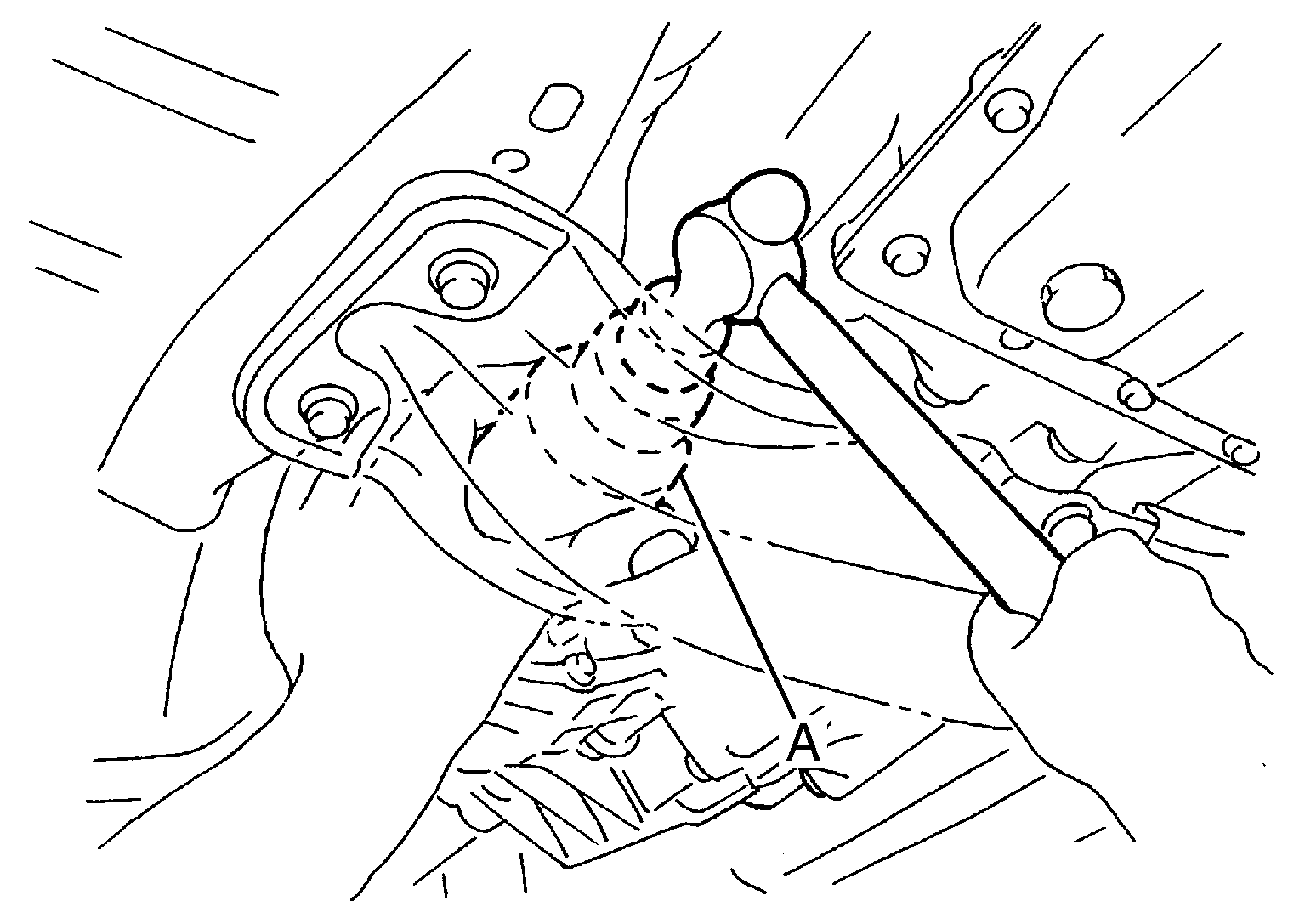

    Fig 1: Installing Front Oil Seal With Drift Until End Face Of Front Case
    G05727161Courtesy of NISSAN MOTOR CO., U.S.A.
