Front Propeller Shaft (2S56A) -- G37 Coupe
>>
Removal And Installation
>>
Front Propeller Shaft
>>
Exploded View
Exploded View

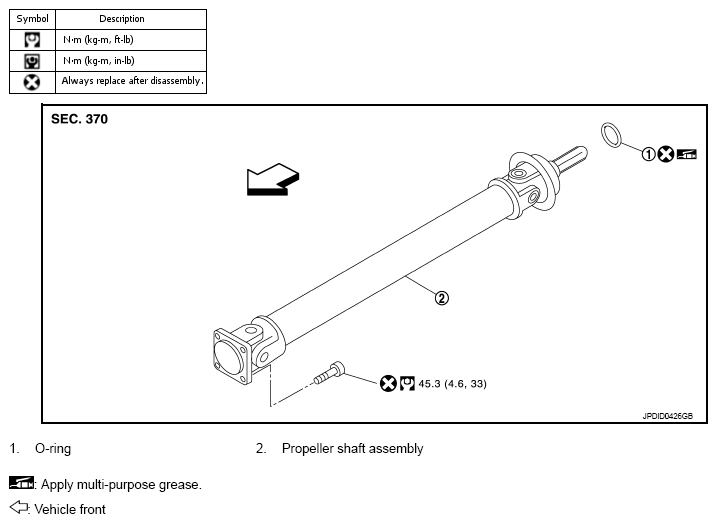

Fig 1: Front Propeller Shaft With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described above.
