Fluid Level

WARNING: This page is about a different variant/trim than selected.
  1. Remove filler plug (1) and gasket. Then check that fluid is filled up from mounting hole for the filler plug.
    CAUTION: Never start engine while checking fluid level.
  2. Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque. Refer to "EXPLODED VIEW ".
    CAUTION: Never reuse gasket.

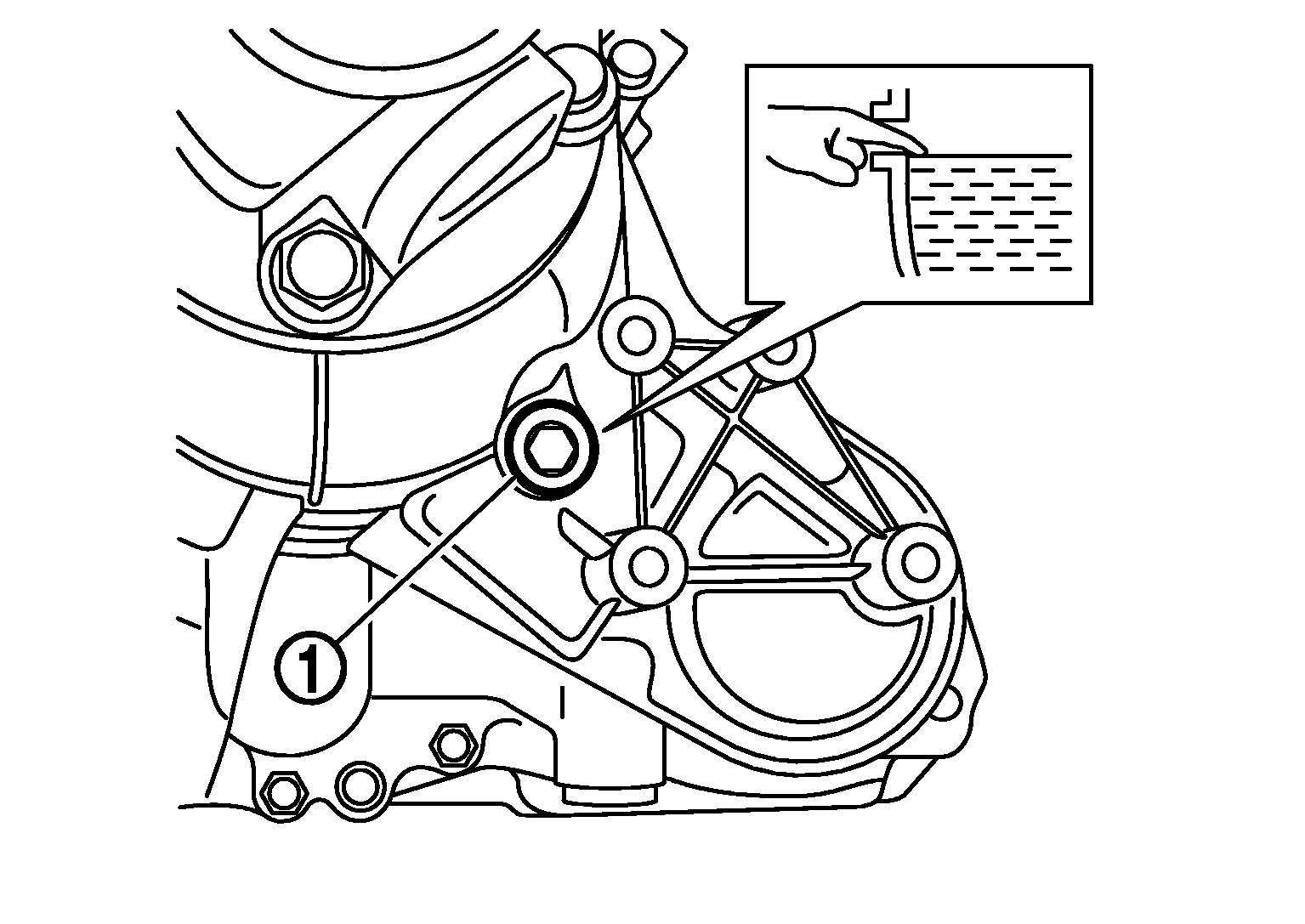

    Fig 1: Checking Fluid Level From Filler Plug Hole
    G05979320Courtesy of NISSAN MOTOR CO., U.S.A.
