Exploded View

WARNING: This page is about a different variant/trim than selected.

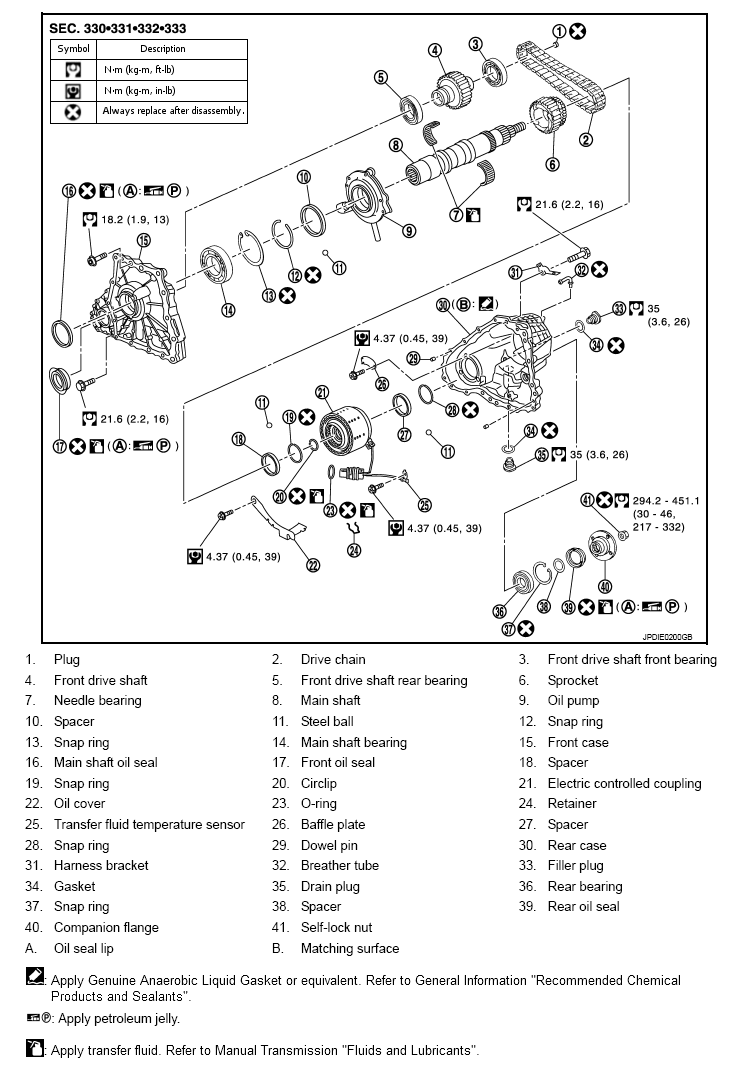

Fig 1: Exploded View Of Front Case And Rear Case With Torque Specifications
G07170638Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
