Wiring Diagram - CIGAR -

For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .

For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .

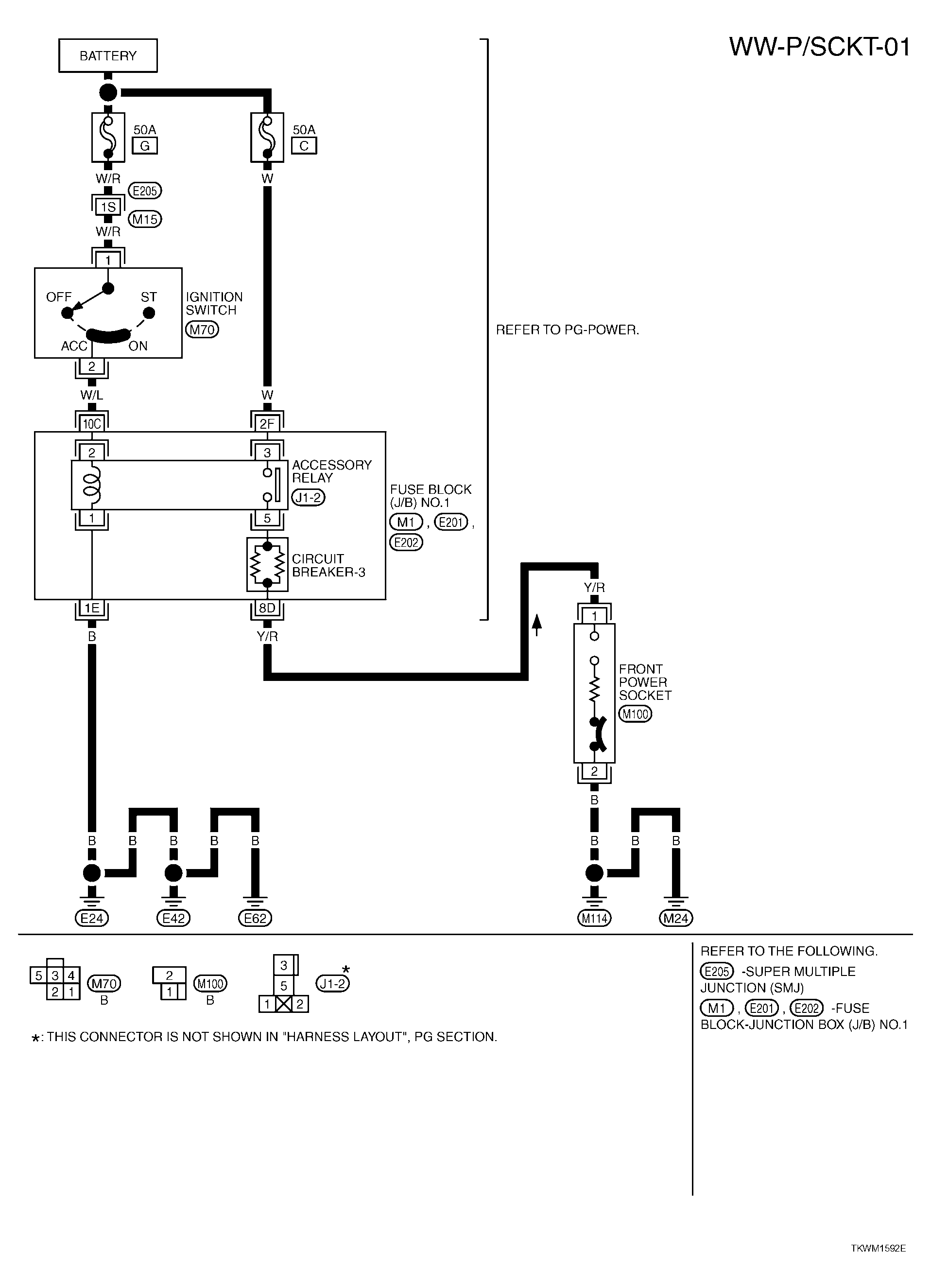

Fig 1: WW-P/SCKT-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
