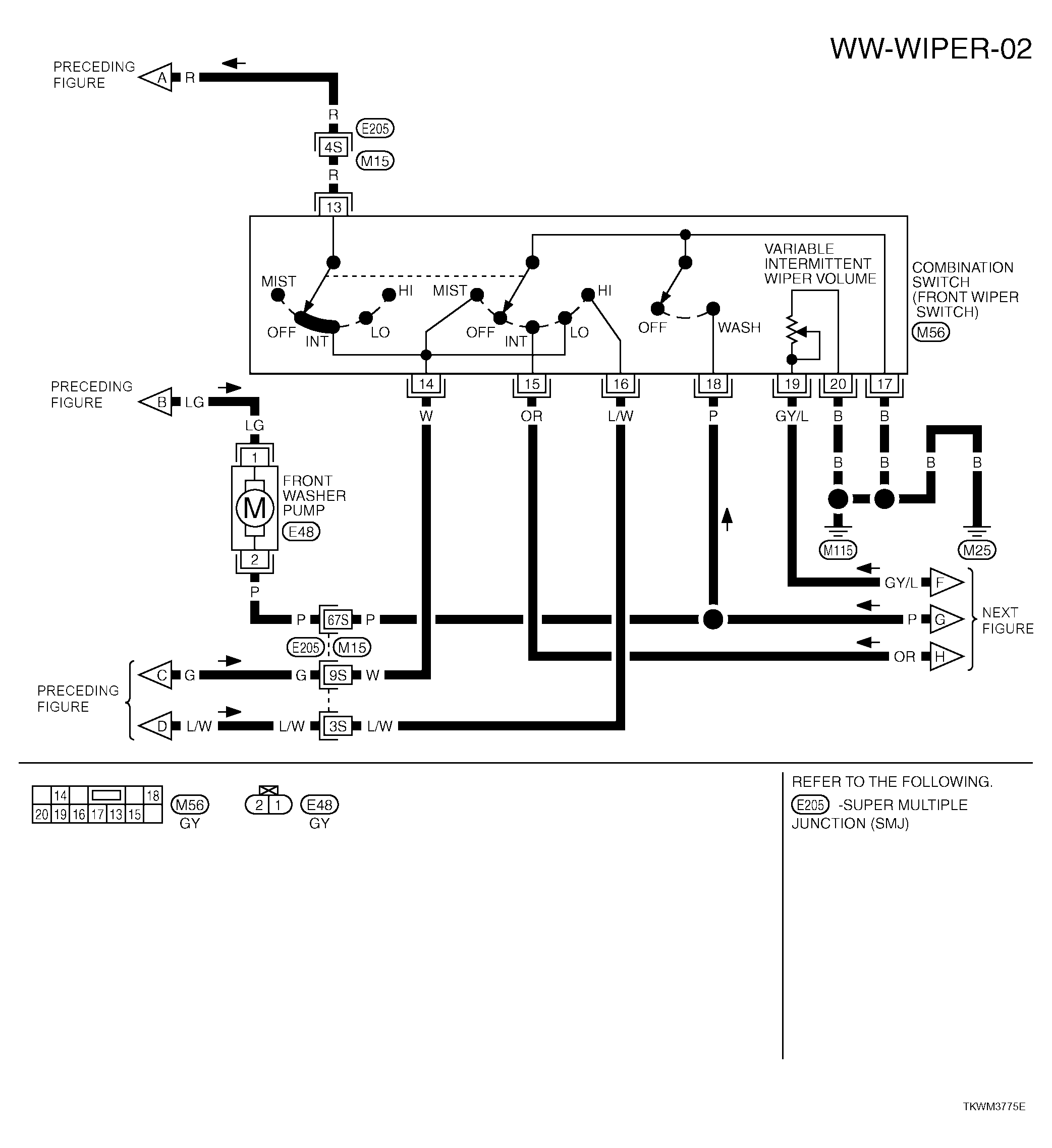

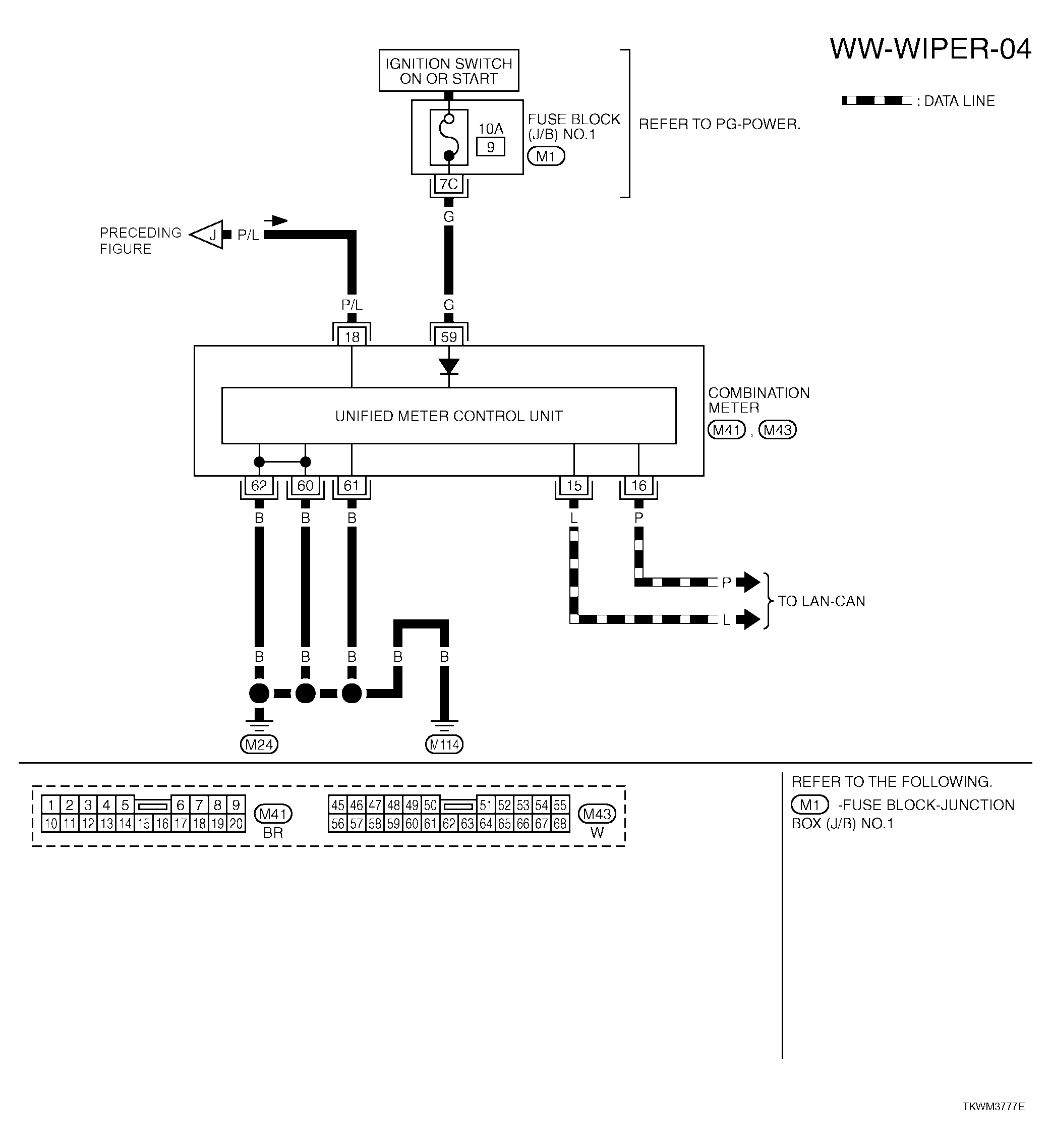

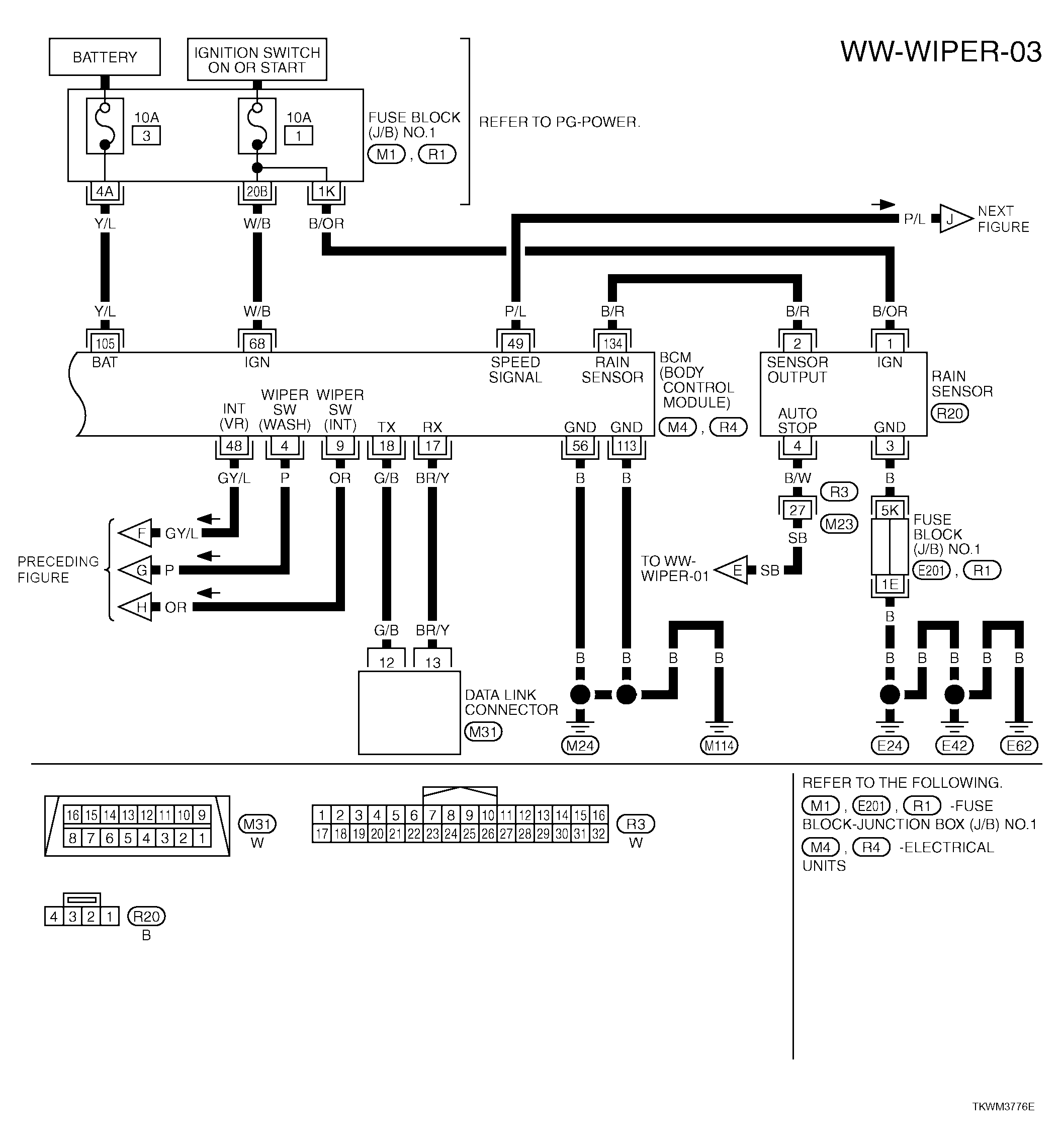

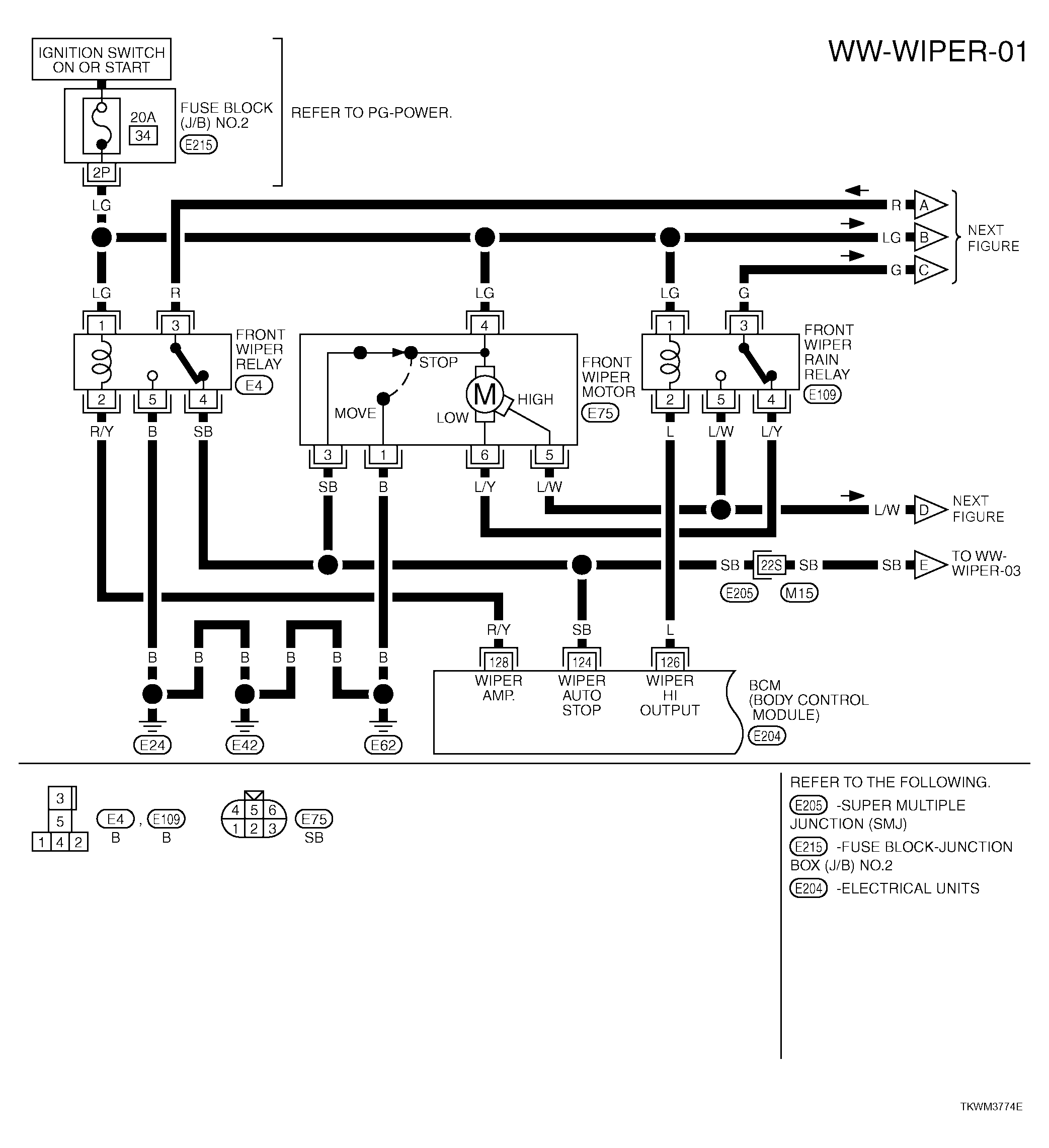

Wiring Diagram - WIPER -
WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE
| ABBREVIATIONS | DEFINITIONS |
|---|---|
| GI | GENERAL INFORMATION |
| EM | ENGINE MECHANICAL |
| LU | ENGINE LUBRICATION SYSTEM |
| CO | ENGINE COOLING SYSTEM |
| EC | ENGINE CONTROL SYSTEM |
| FL | FUEL SYSTEM |
| EX | EXHAUST SYSTEM |
| ACC | ACCELERATOR CONTROL SYSTEM |
| CL | CLUTCH |
| MT | MANUAL TRANSMISSION |
| AT | AUTOMATIC TRANSMISSION |
| FAX | FRONT AXLE |
| RAX | REAR AXLE |
| FSU | FRONT SUSPENSION |
| RSU | REAR SUSPENSION |
| WI | ROAD WHEELS AND TIRES |
| BR | BRAKE SYSTEM |
| PB | PARKING BRAKE SYSTEM |
| BRC | BRAKE CONTROL SYSTEM |
| PS | POWER STEERING SYSTEM |
| SB | SEAT BELTS |
| SRS | SUPPLEMENTAL RESTRAINT SYSTEM |
| BL | BODY, LOCK AND SECURITY SYSTEM |
| GW | GLASSES, WINDOW SYSTEM AND MIRRORS |
| RF | ROOF |
| EI | EXTERIOR AND INTERIOR |
| IP | INSTRUMENT PANEL |
| SE | SEAT |
| ATC | AUTOMATIC AIR CONDITIONER |
| MTC | MANUAL AIR CONDITIONER |
| SC | STARTING AND CHARGING SYSTEM |
| LT | LIGHTNING SYSTEM |
| DI | DRIVER INFORMATION SYSTEM |
| WW | WIPER, WASHER AND HORN |
| BCS | BODY CONTROL SYSTEM |
| LAN | LAN SYSTEM |
| AV | AUDIO VISUAL, NAVIGATION AND TELEPHONE SYSTEM |
| ACS | AUTO CRUISE CONTROL SYSTEM |
| PG | POWER SUPPLY, GROUND & CIRCUIT ELEMENTS |
| MA | MAINTENANCE |
| IND | ALPHABETICAL INDEX |
For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .
