Changing Differential Gear Oil: Filling

Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
Oil grade and Viscosity:

Refe. to "FLUIDS AND LUBRICANTS ".

Oil capacity:

Approx. 1.4 l (3 US pt, 2-1/2 Imp pt)
After refilling oil, check oil level. Set a gasket to filler plug (1), then install it to final drive assembly. Refer to "COMPONENTS ".

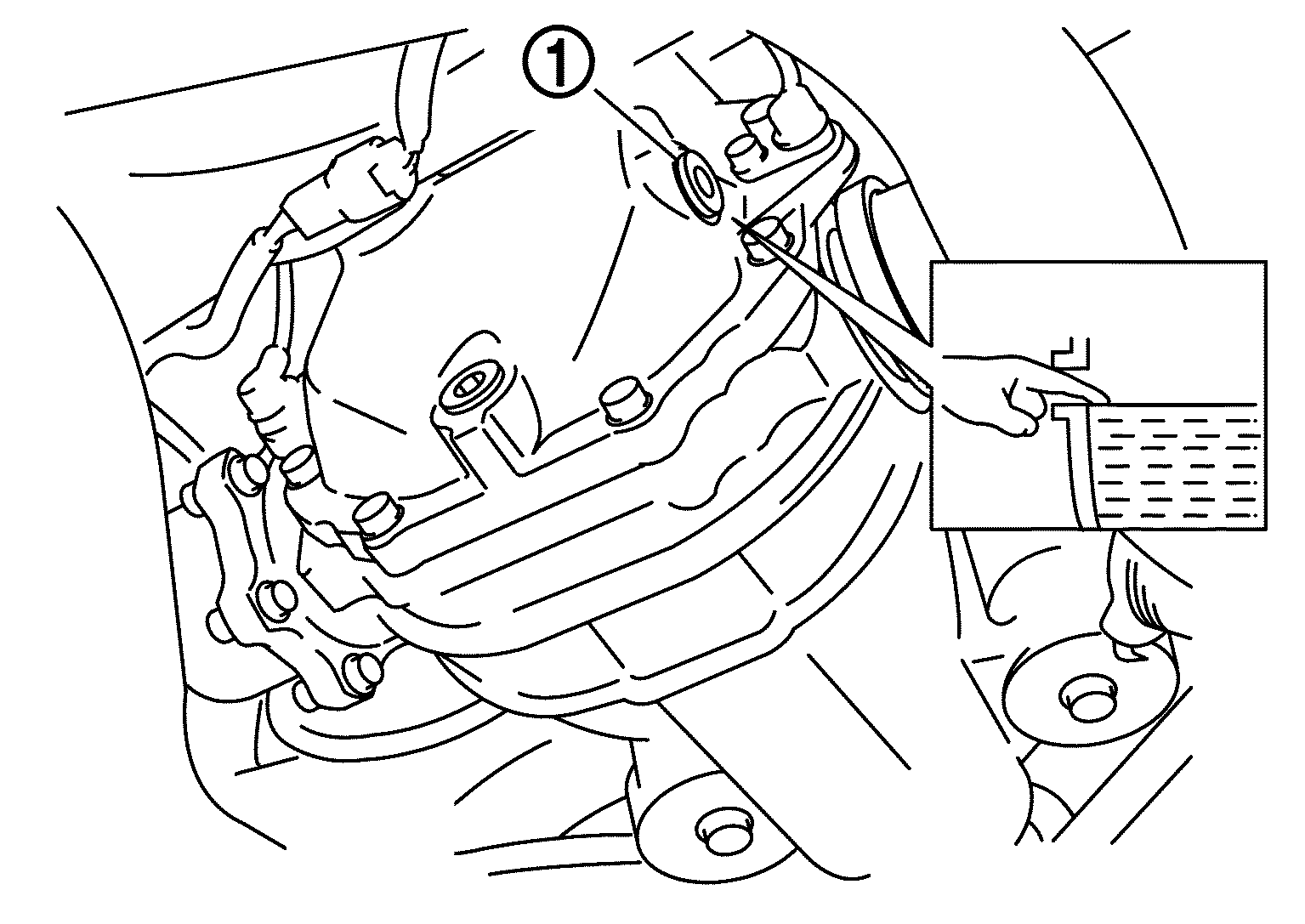

Fig 1: Refilling Differential Gear Oil
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse gasket.
