Components
Disassembly and Assembly: Components

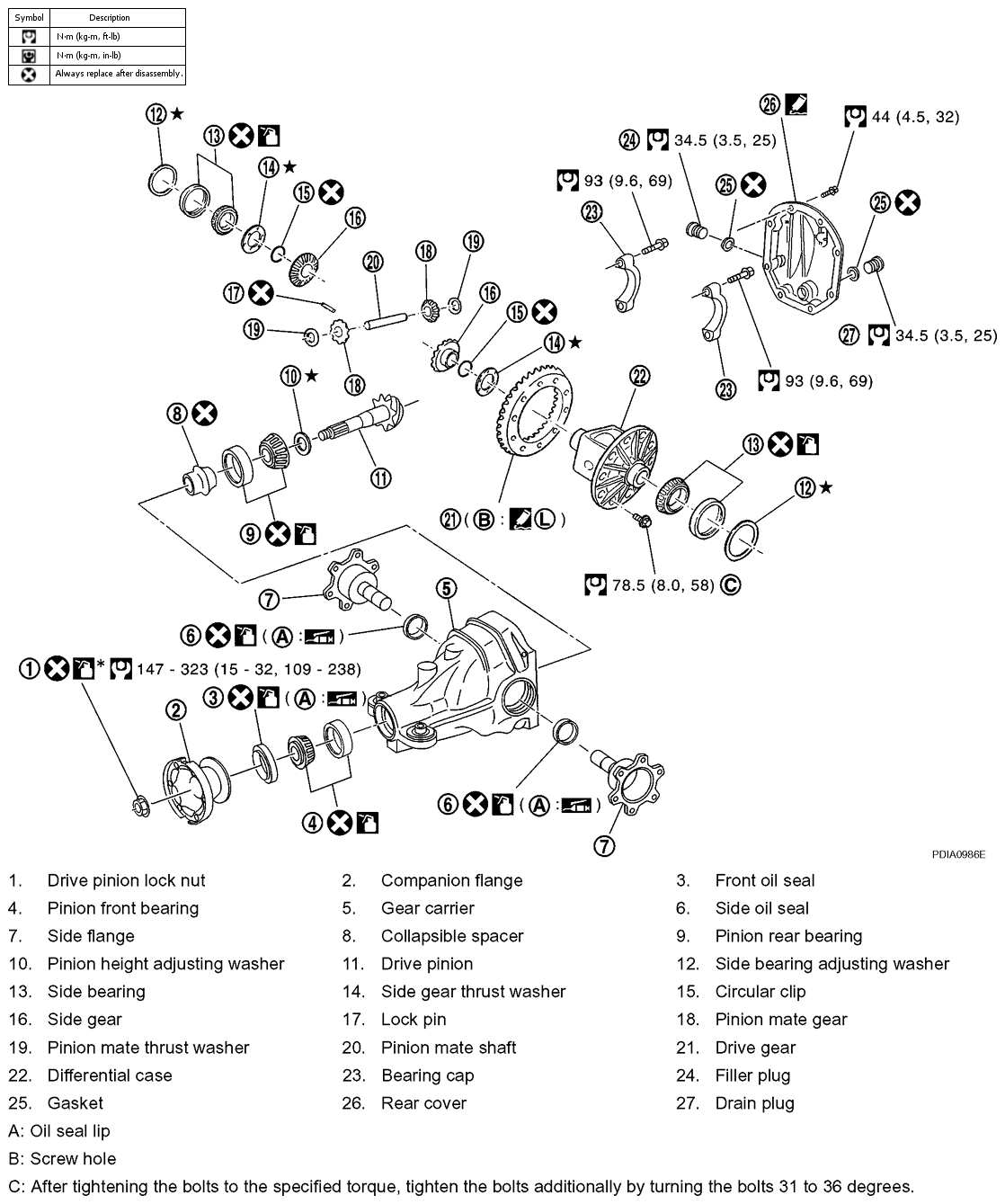

Fig 1: Exploded View Of Disassembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
